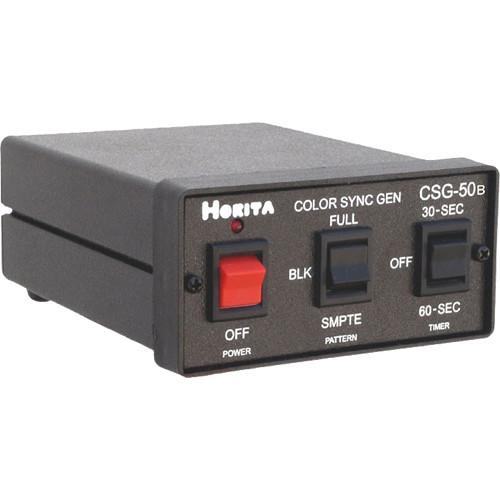

User Manual for Horita CSG-50B Color Bar Sync Audio Tone Generator Timer, Full Field or SMPTE Color Bars, Multi Output Blackburst and Subcarrier Click to enlarge the picture
Contents of the user manual for the Horita CSG-50B Color Bar Sync Audio
- Product category: Video & Audio Signal Generators Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Video & Audio Signal Generators
|
User manual for the Horita CSG-50B Color Bar Sync Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The CSG-50B offers two types of Color Bars, Multiple Black Burst output, Composite Sync, Reference Frame and a 1 kHz Audio Tone. - SMPTE Color Bar Generator
- Full-field or SMPTE (with "pluge") Color Bars can be selected via a front panel switch.
- Blackburst Generator
- The Black Burst generator creates a reference signal for many of todays video tape formats; this model provides multiple black burst outputs to reference the user's complete studio.
- Audio Tone
- Generates a crystal-controlled 1KHz, 0dB audio tone output.
- Automatic Switching
- A built-in Timer can automatically switch the video output from color bars to black and audio tone to silence after 30 or 60 seconds. This feature helps to simplify the production of tape leaders and striping with color bars and 1KHz tone followed by black and silence.
In the Box Horita CSG-50B Color Bar / Sync / Audio Tone Generator Timer, Full Field or SMPTE Color Bars, Multi Output Blackburst and Subcarrier AC Adaptor 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita CSG-50B Color Bar Sync Audio Tone Generator Timer, Full Field or SMPTE Color Bars, Multi Output Blackburst and Subcarrier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita CSG-50B Specs | Output | Black Burst x6, NTSC, on a BNC connector
Color Bars, Full Field and SMPTE, NTSC, on a BNC connector
Sync, NTSC, on a BNC connector
Reference Frame, 15 Hz, on a 1/4" connector
Audio Tone, 1 KHz, on a 1/4" connector | | Television System | NTSC @ 3.58 MHZ | | Control | Front Panel:
Power Switch
Black Burst, Color Bar Selector
Timer Selector | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 2.22 lb | | Box Dimensions (LxWxH) | 8.4 x 7.9 x 3.6" |
