Product description The CSG-50RM offers two types of Color Bars, Black Burst, Composite Sync, Reference Frame and a 1 kHz Audio Tone. - SMPTE Color Bar Generator
- Full-field or SMPTE (with "pluge") Color Bars can be selected via a front panel switch.
- Blackburst Generator
- The Black Burst generator creates a reference signal for many of todays video tape formats.
- Audio Tone
- Generates a crystal-controlled 1KHz, 0dB audio tone output.
- Automatic Switching
- A built-in Timer can automatically switch the video output from color bars to black and audio tone to silence after 30 or 60 seconds. This feature helps to simplify the production of tape leaders and striping with color bars and 1KHz tone followed by black and silence.

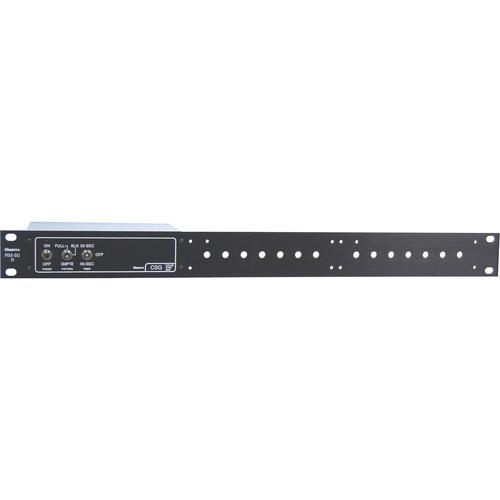

- Rackmountable
- This model comes standard with the ability to be rack mounted.
In the Box Horita CSG-50RM Color Bar / Sync / Audio Tone Generator, Timer, Full Field or SMPTE Color Bars, Rackmount AC Adaptor Rack Mount Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita CSG-50RM Color Bar Sync Audio Tone Generator, Timer, Full Field or SMPTE Color Bars, Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

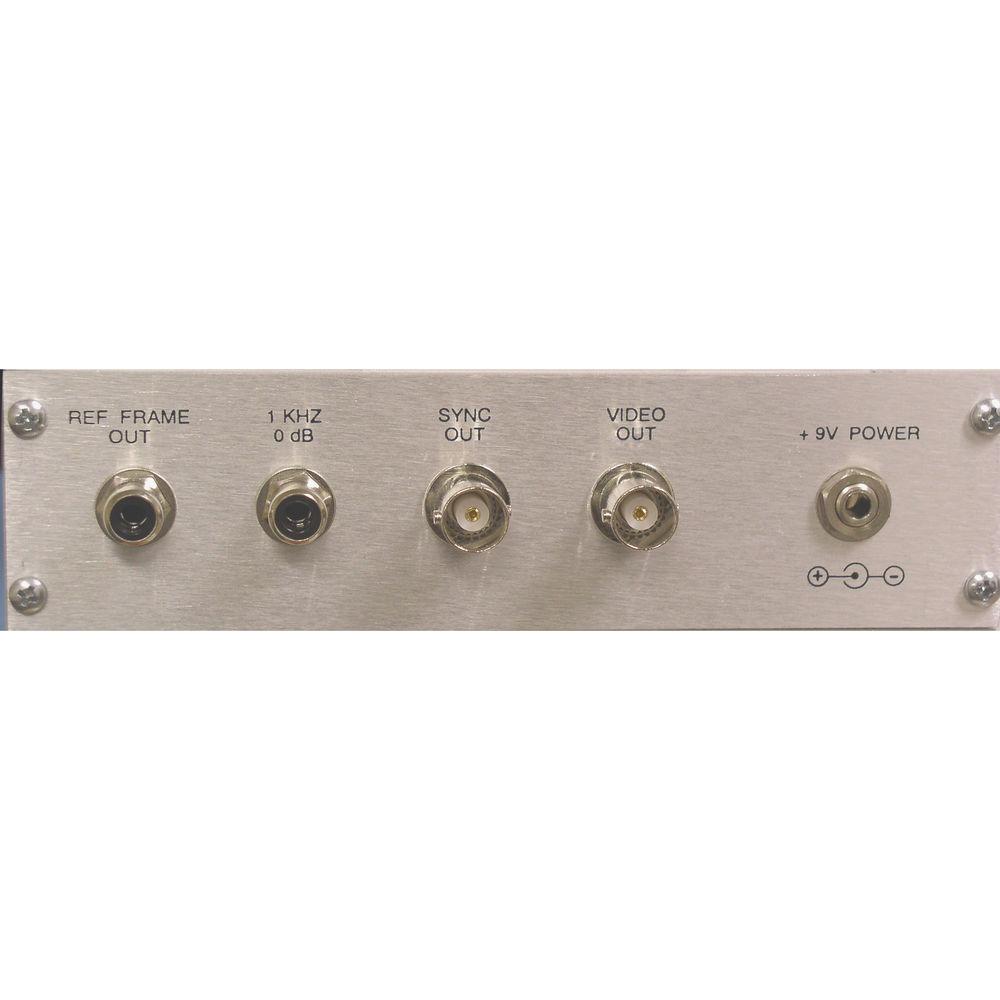

Technical parametersHorita RM-50/CSG Specs | Output | Black Burst, NTSC, on a BNC connector
Color Bars, Full Field and SMPTE, NTSC, on a BNC connector
Sync, NTSC, on a BNC connector
Reference Frame, 15 Hz, on a 1/4" connector
Audio Tone, 1 KHz, on a 1/4" connector | | Television System | NTSC @ 3.58 MHZ | | Control | Front Panel:
Power Switch
Black Burst, Color Bar Selector
Timer Selector | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cmRackmount adapter allow this unit to be mounted in standard rackmount 1 RU | | Weight | 2 lbs
907 grams | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 23.6 x 13.6 x 2.8" |
