User Manual for Horita FW-50 LTC and Film Foot Frame Window Inserter, Composite Click to enlarge the picture
Contents of the user manual for the Horita FW-50 LTC and Film Foot
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita FW-50 LTC and Film Foot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|

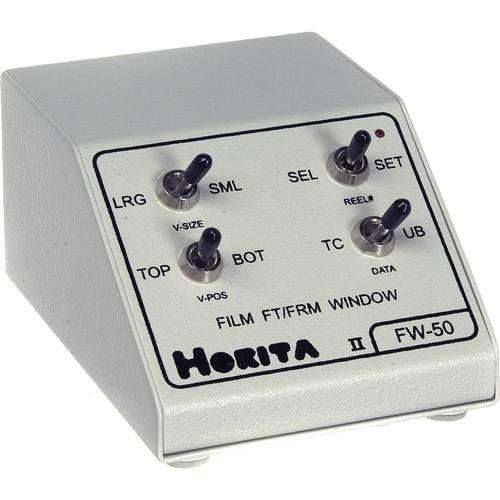

Product description The FW-50 reads SMPTE Longitudinal Time-Code (LTC) and translates it into equivalent film foot and frame counts. It then keys this information into a video overlay display of both the time code and the film foot/frame values. - Versitile
- Works with 16mm and 35mm film stock and DF/NDF time code.
- Phase Analyzer
- The Phase Analyzer shows the user exact timing relationships between LTC and Video.
- Displays and Indicators
- Time Code or User Bits can be displayed according to the user's application. Drop Frame and Non Drop Frame can be displayed; video fields can be displayed.
- Data Graphics
- Horizontal and vertical positioning of graphical data is available to work with the user's image and monitor.
In the Box Horita FW-50 LTC and Film Foot / Frame Window Inserter, Composite AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita FW-50 LTC and Film Foot Frame Window Inserter, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita FW50 Specs | Input | Composite Video, on a BNC connector
Longitudinal Time Code, on an RCA connector | | Output | Composite Video, with graphical display, on a BNC connector
Longitudinal Time Code, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Vertical Size Large/Small
Verical Position Top/Bottom
Reel Select/Set
Data TC/UB | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
