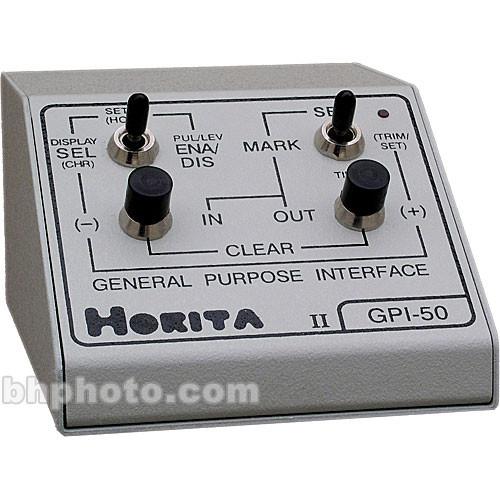

Product description A Time-Code "coincidence detector", the GPI-50 features two separately programmable GPI "trigger" outputs which coincidentally occur when the input Time-Code matches that of previously set GPI In and Out times. - GPI
- Use in production and playback systems to trigger Switchers, Mixers, or strobe lights; initiate VCR Recording or Playback.
- Adjustable Accuracy
- Trim +/- and Set In/Out functions allow times to be adjusted by 11 -Frame, 1 -Second, or 1 -Minute, or set to any arbitrary value.
- Two Separate Events
- Separate Enable and Disable for each GPI event. For example, the user can program GPI-1 to repeat every hour, GPI-2 repeats every 24 hours.
- OSD Readout
- "On Screen" display readout shows GPI selected, Enabled/Disabled, Event Duration, In/Out times marked, and relationship of times to present [tape] time.
In the Box Horita GPI-50 Dual Output GPI Trigger, LTC Based, RCA, BNC AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita GPI-50 Dual Output GPI Trigger, LTC Based, RCA, BNC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita GPI50 Specs | Input | Composite Video, on a BNC connector
Longitudinal Time Code, on an RCA connector | | Output | Composite Video, with OSD, on a BNC connector
GPI x2, on RCA connectors | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Mark/Trim
Set IN/OUT
GPI 1 or 2
GPI Enable/Disable | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.8 x 6.3 x 3.3" |
