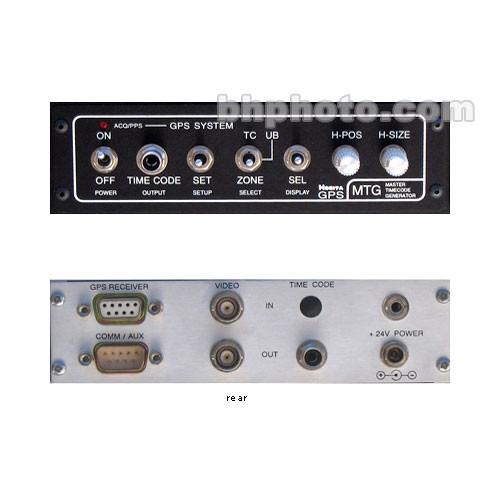

User Manual for Horita GPS-MTG GPS Based Master Time Code Generator Click to enlarge the picture
Contents of the user manual for the Horita GPS-MTG GPS Based Master Time
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita GPS-MTG GPS Based Master Time contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The GPS-MTG is a GPS based Master Time Code Generator; it generates Longitudal Time Code matched to UTC (universal time code) with time and date information. - Matching Time Code
- GPS based time code can be matched from locations across the country from one another because it is all based from GPS time and date.
- Drop Frame
- Generates drop frame format SMPTE time code locked to an NTSC reference signal.
- Clock Reference
- Besides a time code generator this unit can be used for studio clock reference; for live productions an accurate time of day reference makes coordinating network programming with local affiliates easy.
- Daylight Savings
- Automatically resets time during daylight savings time change.
- Indicators
- A flashing LED shows when the device is locked to a GPS reference.
- RS-232 Out
- The RS-232 port outputs data for input to a PC; this allows coordination of clock and calendar information.
- Manual Mode
- Manual mode can operate with or without the GPS receiver allowing manual preset of time and user bit data.
In the Box Horita GPS-MTG GPS Based Master Time Code Generator GPS Antenna and Receiver AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita GPS-MTG GPS Based Master Time Code Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita GPSMTG Specs | Input | Composite Video, for window dub, on a BNC connector
GPS Information, from receiver and antenna | | Output | Longitudal Time Code x2, SMPTE, NTSC, GPS Based, on RCA connectorsRS-232, 1-PPS and 1-PPM, on a 9-Pin connector
Composite Video, with window burn, on a BNC connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
GPS or Manual
GPS time fix
Time Zone Set
User Bit
Character Size
Character Position | | Power Source | 9 VDC from an AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 26.0 x 14.7 x 8.9" |
