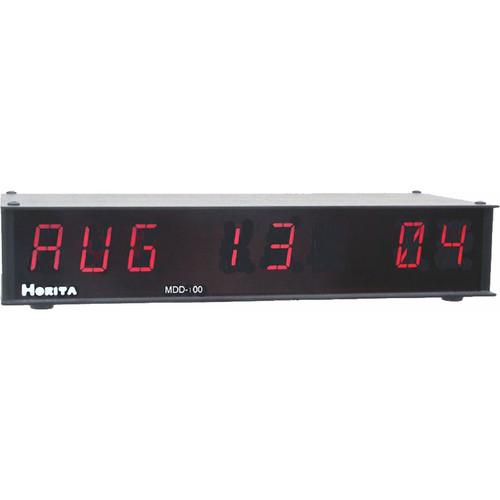

User Manual for Horita MDD-100 Alphanumeric Time Date Display, LTC Input Click to enlarge the picture
Contents of the user manual for the Horita MDD-100 Alphanumeric Time Date Display,
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita MDD-100 Alphanumeric Time Date Display, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The MDD-100 is a display device that provides date or time readouts on an LCD panel. It uses an LTC input to derive data for display. - Information
- The time and date information is derived from the user bit data of the LTC SMPTE time code.
- Displays
- This device displays day of the week/month/day (WED JAN 04) or month/day/year (JAN 04 03).
- Time Zone
- Time zone switch allows this unit to display information relating to the selected geographical location.
- LTC
- The MDD-100 uses the LTC input to derive it's information and outputs a reshaped LTC for passing on to other units.
In the Box Horita MDD-100 Alphanumeric Time / Date Display, LTC Input AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita MDD-100 Alphanumeric Time Date Display, LTC Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita MDD-100 Specs | Input | Longitudinal Time Code, on an RCA Connector | | Output | Longitudinal Time Code, @ 2 Vpp, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Rear Panel:
TC/Manual/Zone Set
Time or Date
Brightness Level
Power On/Off | | Power Source | 9 VDC on an AC Power Supply | | Dimensions (WxDxH) | 8.75 x 3.25 x 1.5"
22.2 x 8.25 x 3.81cm | | Weight | 13 ounces
363 grams | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.5 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
