User Manual for Horita MG-50 Matte Generator, 20 Formats Including Aspect Ratio, Composite Click to enlarge the picture
Contents of the user manual for the Horita MG-50 Matte Generator, 20 Formats
- Product category: Video & Audio Signal Generators Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Video & Audio Signal Generators
|
User manual for the Horita MG-50 Matte Generator, 20 Formats contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|

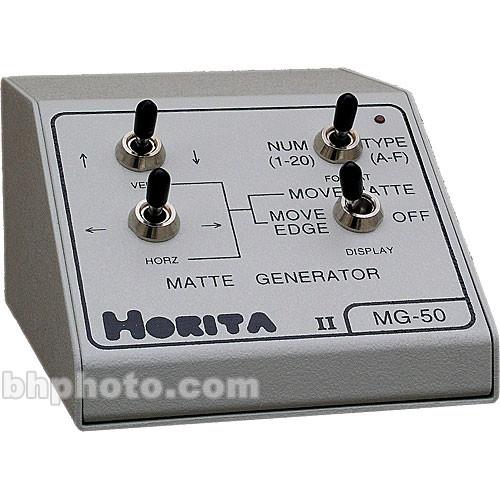

Product description The MG-50 is a "Matte Generator" capable of producing borders, outlines and defined areas to place a video image. This unit has the ability to output ten preset formats with aspect ratios ranging from 1.37:1 to 2.47:1. - Aspect Ratio's and Presets
- Ten formats with preset aspect ratios ranging from 1.37:1 to 2.74:1. Ten with User-Definable Position, Size and Aspect Ratio.
- Colors and Borders
- Six selectable matte types for each format. Matte Black or White, Matte/Video Reverse and Full Matte or Rectangular Border Outline.
- On Screen Display
- On-Screen Readout displays the current Format Number, Type, Aspect Ratio, and Vertical and Horizontal position.
- Bypass When Not In Use
- Direct Video bypass when power is switched off.
In the Box Horita MG-50 Matte Generator, 20 Formats Including Aspect Ratio, Composite AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita MG-50 Matte Generator, 20 Formats Including Aspect Ratio, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita MG-50 Specs | Input | Composite Video, on a BNC connector | | Output | Composite Video, with Matte Generation, on a BNC connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Vertical Position
Horizontal Position
Format 1-20
Display: Move/Off | | Power Source | 9 VDC on an AC Power Supply | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.16 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 1.53 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
