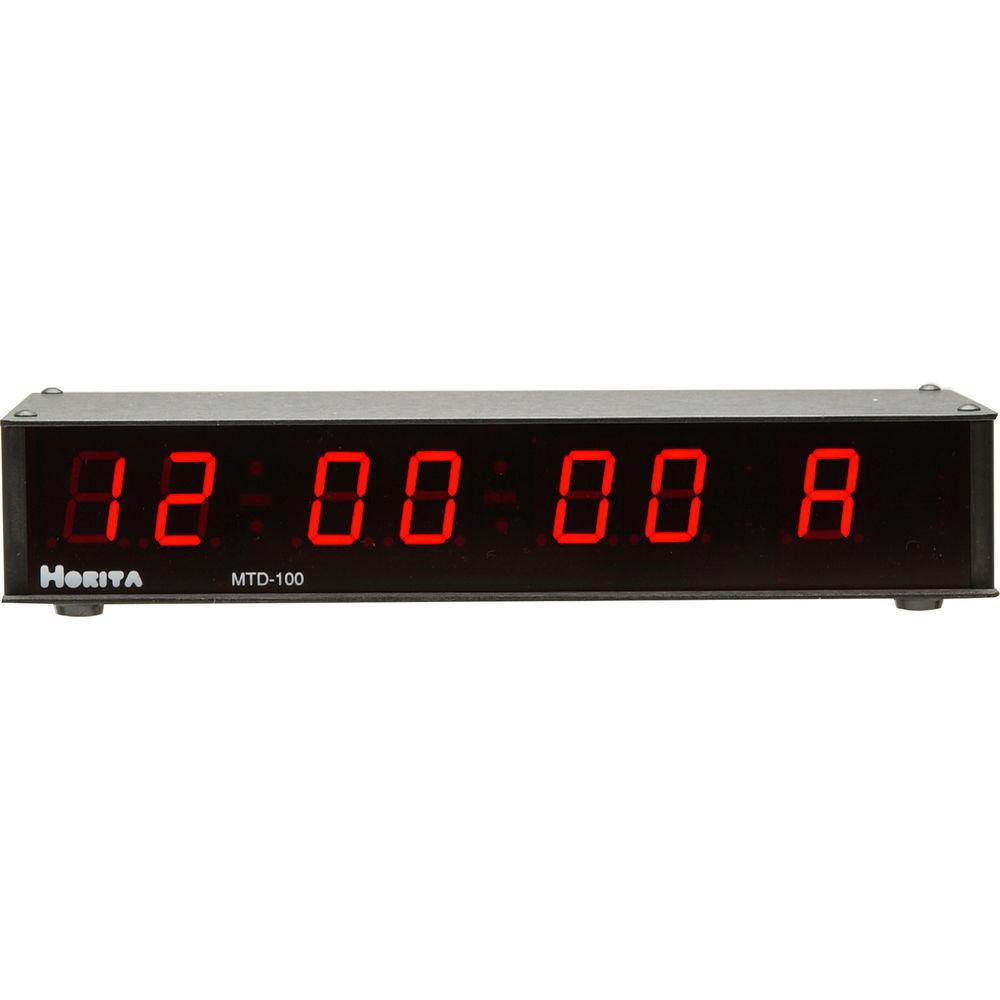

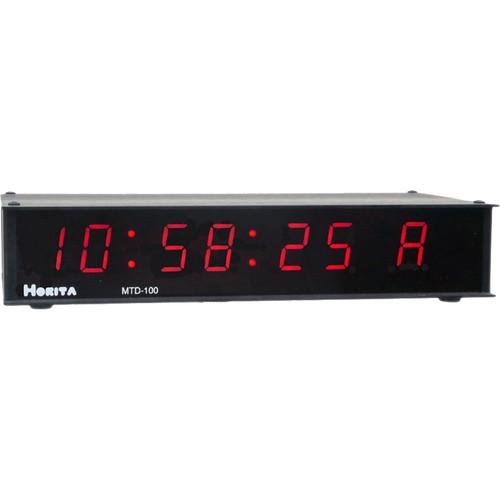

Product description The MDT-100 is a display device that provides date or time readouts on an LCD panel. It uses an LTC input to derive data for display. This unit can be set to alternate between time and date and display military time (24 hour clock). - Information
- The time and date information is derived from the user bit data of the LTC SMPTE time code.
- Displays
- This device displays day of the week/month/day (WED JAN 04) or month/day/year (JAN 04 03); it has the ability to display a 24 hour clock and alternate between time and date at selected intervals.
- Time Zone
- Time zone switch allows this unit to display information relating to the selected geographical location.
- LTC
- The MDD-100 uses the LTC input to derive it's information and outputs a reshaped LTC for passing on to other units.
In the Box Horita MTD-100 Alphanumeric Time / Date Display, LTC Input AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita MTD-100 Alphanumeric Time Date Display, LTC Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

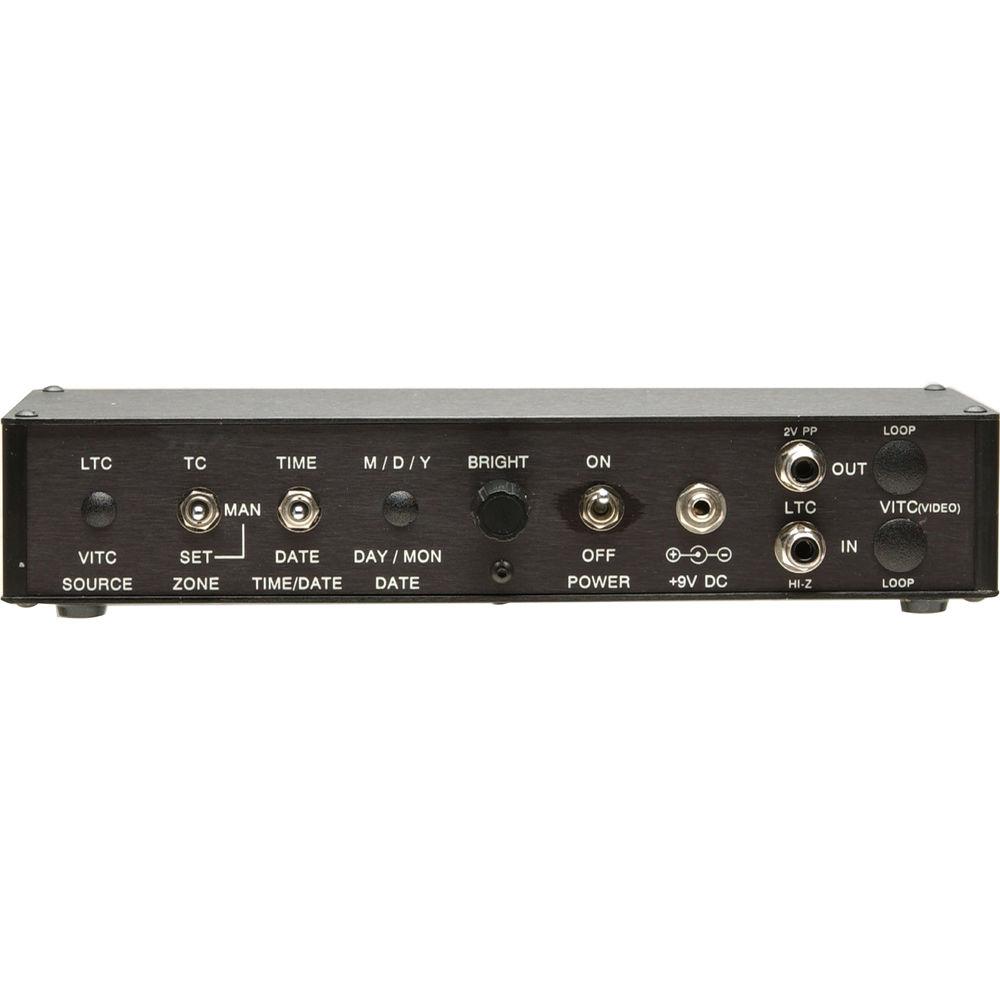

Technical parametersHorita MTD-100 Specs | Input | Longitudinal Time Code, on an RCA Connector | | Output | Longitudinal Time Code, @ 2 Vpp, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Rear Panel:
TC/Manual/Zone Set
Time or Date
Brightness Level
Power On/Off | | Power Source | 9 VDC on an AC Power Supply | | Dimensions (WxDxH) | 8.75 x 3.25 x 1.5"
22.2 x 8.25 x 3.81cm | | Weight | 13 ounces
363 grams | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 13.1 x 9.7 x 3.2" |
