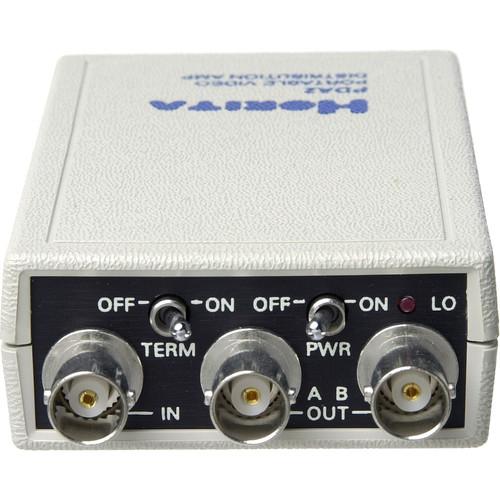

Product description The PDA-2 is a portable 1x2 video distribution amplifier intended for use in the field. - The PDA-2 accepts a Composite video input signal via a BNC connector. The signal is then output through two BNC's.
- A 75 ohm video termination can be switched off in order to allow the input video to be looped to another device with a BNC-T connector.
- Gain and equalization are adjustable to compensate for cable lengths of up to 200 feet.
- Condition LED
- A "LO" battery indicator light momentarily illuminates when power is first switched on. A "Steady-On" light indicates a low battery, with only a few hours of operation remaining.
- Portability
- The palm-sized DA, can be powered for over 30 hours with a single 9V battery. The 9V battery slides in and out of the PDA-2 for quick and easy replacement.
In the Box Horita PDA-2 Distribution Amplifier, 1x2, Composite, Portable, 9 Volt DC 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita PDA-2 Distribution Amplifier, 1x2, Composite, Portable, 9 Volt DC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita PDA2 Specs | Input | Composite Video, 1 Vpp @ 75 ohms
On a BNC connector | | Output | Composite video x2, 1 Vpp @ 75 ohms
On BNC connectors | | Video Bandwidth | 80 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.08% Typical | | Differential Gain | 0.04% Typical | | Video Control | Power On/Off
Termination
Gain and EQ | | Coupling | AC | | Dimensions | Not Specified by Manufacturer
Described as Palm Sized | | Weight | Not Specified by Manufacturer | | Power Source | 9 VDC From a Dry Cell Battery | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 3.0" |
