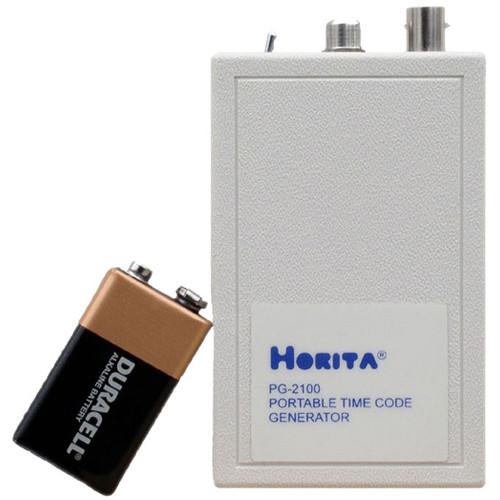

User Manual for Horita PG-2100 Mini Portable Time Code Generator, BNC, RCA Click to enlarge the picture
Contents of the user manual for the Horita PG-2100 Mini Portable Time Code
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita PG-2100 Mini Portable Time Code contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The PG-2100 is a portable time code generator able to free-run or reference from a master time code generator. It operates from a 9 VDC battery for up to 24 hours. - Frame Rates
- This device is able to operate at frame rates of 24, 25, 29.97 and 30 fps.
- Jam Sync
- This unit will jam-sync to existing time code or to a RS-232 time and date input from a GPS receiver.
- Manual Operation
- Time ,date ,frame rate and ID number can be monitored and manually changed.
- Portability
- Small enought to fit in a pocket, production bag or luggage and operation from a single 9 VDC battery.
In the Box Horita PG-2100 Mini Portable Time Code Generator, BNC, RCA 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita PG-2100 Mini Portable Time Code Generator, BNC, RCA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita PG-2100 Specs | Input | Composite Video, on a BNC connector
Master Time Code, from a source, on an RCA connector | | Output | Longitudal Time Code, 24, 25, 29.97 or 30 fps and jam-sync to master input, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Top Panel:
Frame Rate
Time
Date
ID Number
On/Off | | Power Source | 9 VDC from a dry cell battery | | Dimensions (WxDxH) | 2.4 x 4.2 x 1"
7 x 10.66 x 2.54cm | | Weight | Less than 1 lb
Less than .50 kg | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 6.9 x 6.4 x 3.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
