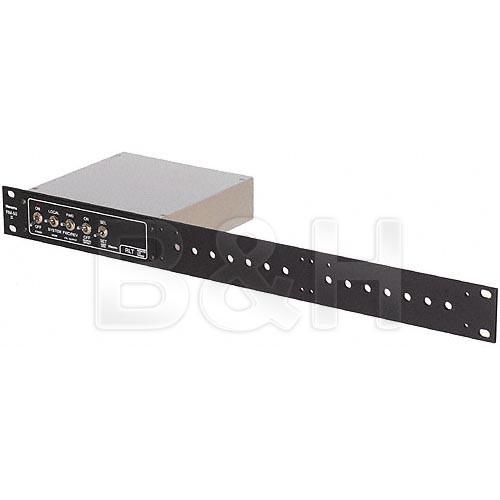

Product description The RLT-50 is a time code translator; it accepts time code signals from a 9-Pin RS-422 interface and translates it to SMPTE Longitudinal Time Code. - Translation
- Translates RS-422 "Time-Code" obtained from any 9-pin VCR remote connector into standard SMPTE Longitudinal Time-Code (LTC).
- Sony RS-422 Protocal
- Works with all Sony protocol VCRs, including Betacam and DVCAM.
- LTC Output
- Provides LTC Time-Code at all tape speeds. Selectable Forward direction only, or Forward/Reverse direction LTC output format.
- Various Applications
- Use the RLT-50 when LTC is not directly available from VCR (or other machine) for operating Audio Synchronizers, making LTC copies, or use with other Horita LTC products to make Window Dubs, Log Source Tapes, etc.
- Selectable Accuracy
- Switch selectable "-1 Frame Search Offset" when translating at search speeds or at still frame compensates for the +1 frame "On-Time" updating done by many downstream LTC readers, edit controllers and other LTC products.
In the Box Horita RLT-50 RS-422 TC-to-LTC Translator, Composite, 9-Pin AC Power Adapter DB-9 Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita RLT-50 RS-422 TC-to-LTC Translator, Composite, 9-Pin in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita RLT50RM Specs | Input | Composite Video, for genlock, on a BNC connector
9-Pin Interface, RS-422, looping, on a DB-9 connector | | Output | Composite Video, loop out, on a BNC connector
9-Pin Loop Out, RS-422, on a DB-9 connector
Longitudinal Time Code, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
User Bits Preset
Forward All Speeds or Forward/Reverse
Search Offset | | Power Source | 9 VDC on an AC Power Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 23.8 x 13.4 x 2.9" |
