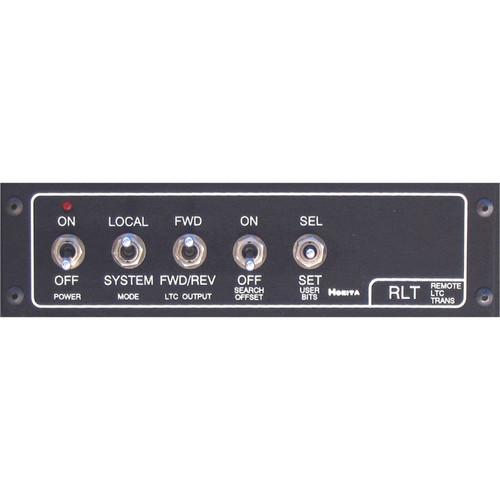

User Manual for Horita RLT-50 RS-422 to LTC TC Translator - 9-Pin, Composite BNC Click to enlarge the picture
Contents of the user manual for the Horita RLT-50 RS-422 to LTC TC
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita RLT-50 RS-422 to LTC TC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The Horita RLT-50 translates RS-422 time code obtained from 9-Pin into standard SMPTE Longitudinal Time Code (LTC). Operating without a VCR this unit will work for logging tapes, making window dubs with other Horita devices or making LTC copies. - Stand Alone
- Operates "stand alone" or in line with an edit controller.
- All Tape Speeds
- Provides LTC time code at all tape speeds; selectable forward direction only or forward/reverse direction LTC output format.
- Switch Selectable
- A 1 frame "search offset" when translating at search speeds or at still frame compensates for the +1 frame "on-time" updating done by many downstream LTC readers, edit controllers and other LTC products.
- Genlock
- The LTC output is genlocked to the video from the VCR signal.
In the Box Horita RLT-50 RS-422 to LTC TC Translator - 9-Pin, Composite BNC AC Power Adapter Serial Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita RLT-50 RS-422 to LTC TC Translator - 9-Pin, Composite BNC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita RLT-50 Specs | Input | Composite Video, on a BNC connector
Longitudinal Time Code, on a 9-Pin connector | | Output | Composite Video, on BNC connectors
Longitudinal Time Code, on an RCA connector
VCR Remote, on a 9-Pin connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
On/Off
Local/System
FWD or FWD/REV
Search Offset On/Off
User Bits Select/Set | | Power Source | 9 VDC on an AC Power Adapter | | Dimensions (WxDxH) | Occupies one position in a 3 unit 1RU Rackmount | | Weight | 12 ounces
340 grams | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 23.7 x 13.3 x 3.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
