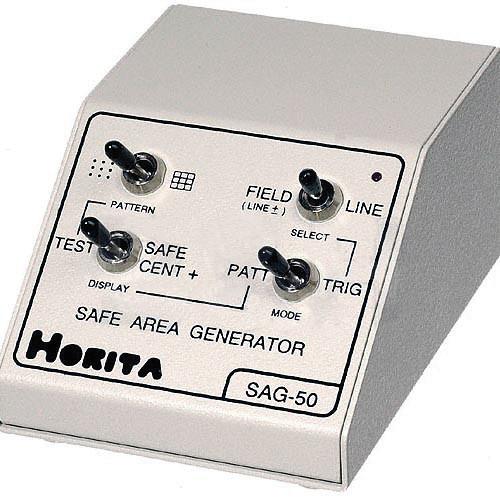

Product description The SAG-50 is a "safe area generator"; this unit generates a matte around the video to specify an area where graphics can be seen on a home television. It also has crosshatch and dot patterns that can be used for convergence and centering for projectors and service departments. - Safe Area
- A safe area matte is utilized to make sure graphics and other information can be positioned within the frame correctly. The safe area is fixed at the SMPTE RP-27.3 standard of 80% and 90% of the scanned image area.
- Convergence
- Dots and crosshatch patterns are available to adjust projection devices and video walls.
- Line Trigger
- The actual field and line numbers are shown on the video monitor with the output being very easy to read and evaluate on waveform monitors and ocilloscopes. Lines 10 through 262 and field one and two can be selected.
In the Box Horita SAG-50 Safe Area / Test Pattern Generator (BNC), Trigger Out (RCA) AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita SAG-50 Safe Area Test Pattern Generator , Trigger Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita SAG-50 Specs | Input | Composite Video, on a BNC connector | | Output | Composite Video, with generation, on a BNC connector
Trigger Out, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Dots or Crosshatch
Test Pattern or Safe Area
Pattern or Trigger
Field or Line | | Power Source | 9 VDC from an AC Power Supply | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.16 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
