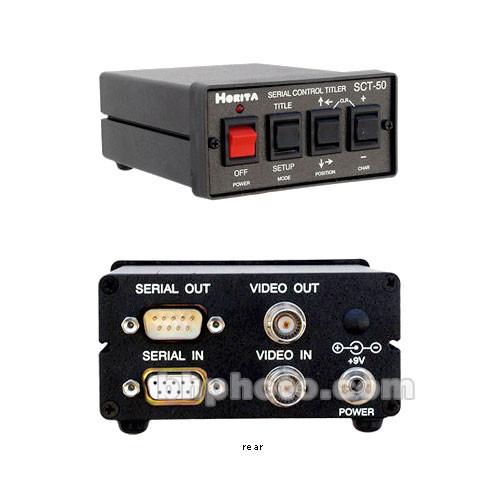

User Manual for Horita SCT-50 PC Serial Control Rack Mount Titler Click to enlarge the picture
Contents of the user manual for the Horita SCT-50 PC Serial Control Rack
- Product category: Character Generators & Graphic Solutions Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Character Generators & Graphic Solutions
|
User manual for the Horita SCT-50 PC Serial Control Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The Horita SCT-50RM is a rack mountable character generator that operates either as a stand-alone unit or with a computer to title, caption, or time-date stamp video. The SCT-50RM can add up to nine lines of 20 characters each and can also be synchronized with a time code reader for automated captioning. - Automatic Time Synchronized Captions
- Built-in time code captioning software operates the SCT-50RM in association with Horita PC time code products and software. Captions are automatically matched with video images based on time code.
- Text Editor and Control Software
- The supplied SCT.EXE DOS based text editor and control program controls the SCT-50RM from within other programs. Three modes of communication with a PC include continuous mode, for real time positioning of text within a video image.
- Flexible and Expandable
- The SCT.EXE program controls up to 99 SCT-50RMs using a single RS-232 port on a PC. The SCT-50RM's loop-through operation allows up to 99 daisy-chained units to be addressed individually or in groups by the PC. The program also automatically stores 99 individual SCT-50RM screens, any of which can quickly be selected and sent to an individual SCT-50RM, or multiple SCT-50RMs. Other computer data can also be added to video images using programs written in Basic or C.
In the Box Horita SCT-50 PC Serial Control Rack Mount Titler One Year Parts and Labor Warranty 9V Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita SCT-50 PC Serial Control Rack Mount Titler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita SCT50RM Specs System | NTSC | Input and Output Connectors | Video In x 1 BNC Video Out x 1 BNC Control In x 1 RS-232 (9 pin serial) Control Out x 1 RS-232 (9 pin serial) | Power Requirements | 9V (Power Supply Included) | Dimensions | 19 x 1.75 x 6" (482.6 x 44.45 x 152.4 mm) | Weight | 4 lbs (1.814 kg) | | Package Weight | 3.48 lb | Box Dimensions (LxWxH) | 24.0 x 14.0 x 3.0" |
