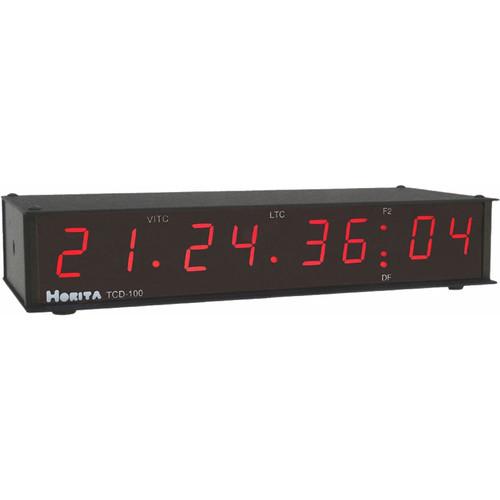

User Manual for Horita TCD-100 VITC LTC Reader and LED Display, Composite Click to enlarge the picture
Contents of the user manual for the Horita TCD-100 VITC LTC Reader and
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita TCD-100 VITC LTC Reader and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TCD-100 is a display device that reads VITC and LTC Time code formats and displays them on a easy to read 8 character LED display. It will output time code when reading LTC. - Reader
- Reads LTC from 1/30 to 100x play speed in forward and reverse. Reads VITC from pause to over 30x play speed in forward and reverse (depending on tape format).
- 8 Character Display
- Displays hours, minutes, seconds, and frames, plus indicators for reading VITC or LTC and Drop/Non-Drop Frame format.
- Auto Select
- Auto select mode permits unattended operation by automatically switching to VITC when LTC is not available.
- LED Brightness
- Brightness control adjusts display intensity for indoor use in a darkened room, or for outdoor use in bright light
In the Box Horita TCD-100 VITC / LTC Reader and LED Display, Composite AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TCD-100 VITC LTC Reader and LED Display, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TCD-100 Specs | Input | Composite Video, Reading VITC, on a BNC connector
Longitudinal Time Code, on an RCA connector | | Output | Longitudinal Time Code, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Rear Panel:
Time Code or User Bit
Run or Hold
Auto Select
LED Brightness | | Power Supply | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 8.5 x 3.25 x 1.5"
21.6 x 8.25 x 3.81cm | | Weight | 12 ounces
340 grams | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 13.1 x 9.9 x 3.3" |
