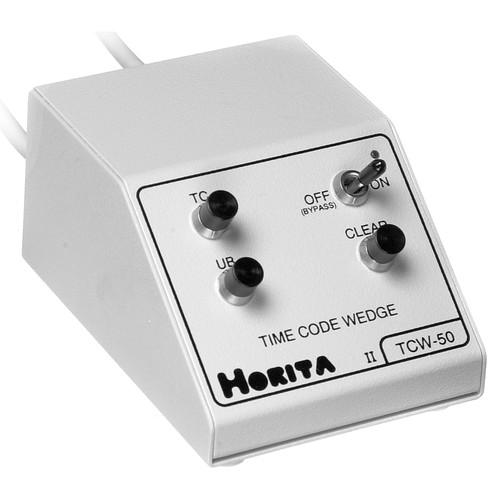

User Manual for Horita TCW-50 Keyboard LTC Time Code Wedge Click to enlarge the picture
Contents of the user manual for the Horita TCW-50 Keyboard LTC Time Code
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita TCW-50 Keyboard LTC Time Code contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TCW-50 reads LTC Time-Code and sends the information to the PC as though it were typed in at the keyboard. The TCW-50 connects between the PC and keyboard, and is intended for applications requiring direct input of Time-Code values into user programs. Because there is no "wedge'" PC software involved, the TCW-50 is compatible with any computer, system, or software program. - TC and UB
- Separate push button switches for sending Time-Code or User Bit values to the PC and for clearing previous entries.
- Selectable
- Switch selectable delimiters for: field separator, drop-frame indicator and end of line terminator.
- Programmable
- Learn mode lets you define keyboard "hot keys" that make the TCW-50 send Time-Code or User Bit values to the PC.
- Keyboard Activated
- Powered through keyboard cable. Includes 1' and 5' cables for connecting between PC and keyboard. Works with system software.
In the Box Horita TCW-50 Keyboard LTC Time Code Wedge AC Power Adapter Keyboard Connection Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TCW-50 Keyboard LTC Time Code Wedge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TCW-50 Specs | Input | Longitudinal Time Code, on an RCA connector | | Output | Longitudinal Time Code, reshaped, on an RCA connector
Keyboard Out, on a Supplied 4-Pin interface cable | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
TC or UB
Delimiters
Learn Mode | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 7.0 x 6.5 x 3.5" |
