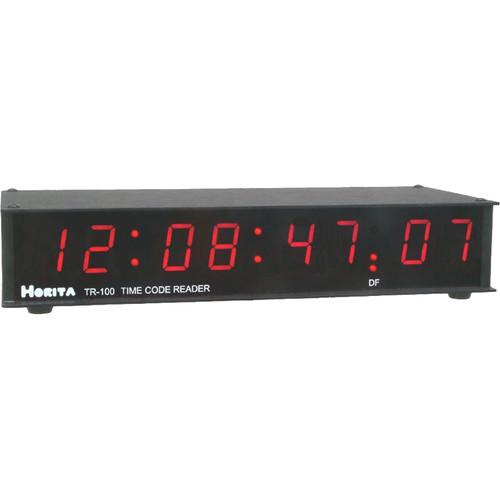

User Manual for Horita TR-100 LTC Reader LED Display MIDI Translator Click to enlarge the picture
Contents of the user manual for the Horita TR-100 LTC Reader LED Display
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita TR-100 LTC Reader LED Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TR-100 is a Longitudinal Time Code reader; it features an LED display, auto select frame rate and MIDI translation capabilities. - High Speed Reader
- This device can read from 1/30th to over 10x play speed and either in forward and reverse tape direction.
- Auto Select
- Auto frame read select of 24 fps (film), 25 fps (PAL), 29.97 (NTSC Drop Frame) and 30 fps (audio).
- LED
- A 0.8" LED readout displays auto selected time code.
In the Box Horita TR-100 LTC Reader / LED Display / MIDI Translator AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TR-100 LTC Reader LED Display MIDI Translator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TR-100 Specs | Input | Longitudinal Time Code, on an RCA connector | | Output | Longitudinal Time Code, on an RCA connector
MIDI Time Code, translated to 30 fps, on a MIDI connector | | Television System | Auto Select:
NTSC @ 29.97 fps
PAL @ 25 fps
Film @ 24 fps
MIDI @ 30 fps | | Control | Rear Panel:
Auto Frame Select On/Off
Data Select TC or UB
Brightness Level
Power On/Off | | Power Source | 9 VDC on an AC Power Adapter | | Dimensions (WxDxH) | 8.5 x 3.25 x 1.5"
21.6 x 8.25 x 3.81cm | | Weight | 12 ounces
340 grams | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 13.1 x 9.6 x 3.2" |
