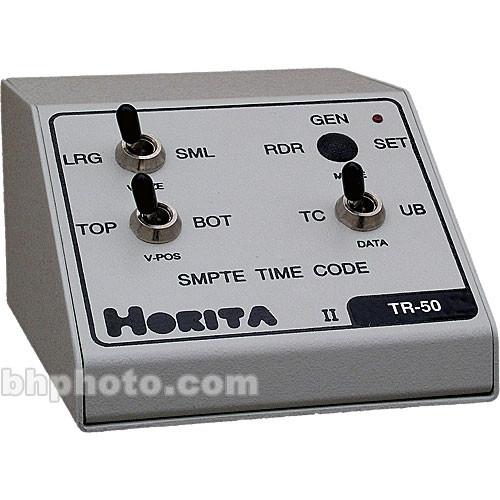

User Manual for Horita TR-50 LTC Reader Window Inserter, Search Speed Reader, Composite Click to enlarge the picture
Contents of the user manual for the Horita TR-50 LTC Reader Window Inserter,
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita TR-50 LTC Reader Window Inserter, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TR-50 is a window dub inserter; it reads longitudal time code and inserts a window into the video with the time code read out. This model has the ability to read time code during search speed and in reverse search. - Window Burn
- Makes burned-in SMPTE TC Window Dub copies of LTC or User Bits.
- Dual Read Capabilities
- Indicates Drop-Frame or Non-Drop-Frame Time Code.
- LTC Reader
- This model can read up to 10x the play speed and in reverse search as well.
- Window Size
- Adjustments for horizontal and vertical size and position.
In the Box Horita TR-50 LTC Reader / Window Inserter, Search Speed Reader, Composite AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TR-50 LTC Reader Window Inserter, Search Speed Reader, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TR-50 Specs | Input | Composite Video, on a BNC connector
Longitudal Time Code, on an RCA connector | | Output | Composite Video, with LTC window burn, on a BNC connector
Longitudal Time Code, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Large or Small Font
Top or Bottom Position
Time Code or User BitSide Panel:
Horizontal Position
Horizontal SizeRear Panel:
Power On/Off | | Power Source | 9 VDC on an AC Power Supply | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
