Product description

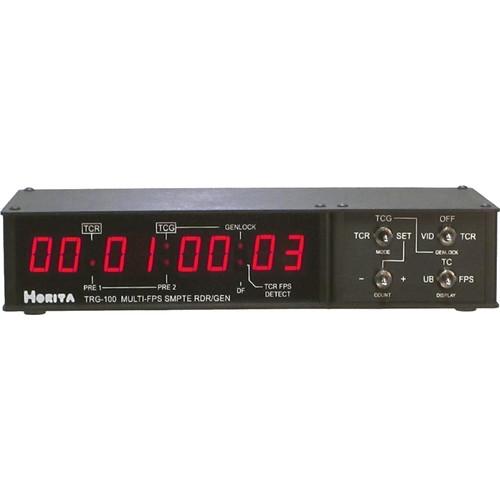

The TRG-100 from Horita is a multi-frame rate SMPTE timecode reader/generator with an 8-character, red LED display suitable for installation in a studio, video production room, large or small editing suite or in a laboratory or test situation. It can both read and generate timecode for SD and HD video frame rates and its small desktop size lets it sit conveniently on a desktop, or be rack or wall mounted. The timecode reader can discern between 23.976 and 24 fps (frames-per-second) timecode and between 29.97 and 30 fps timecode and displays the true frame rate. Its operation is simple and is controlled from four front panel switches.
  • Can read and generate SMPTE timecode at frame rates of 23.976, 24, 25, 29.97 drop/non-drop frame, and 30 fps (frames-per-second)
  • HD frame rates of 50/720p, 50/1080i, 59.94/720p, and 59.94/1080i are also supported by the TRG-100 TCR and TCG
  • Eight digit 0.56" LED display shows hours, minutes, seconds, and frame number in familiar HH:MM:SS:FF format, as well as the TCR or TCG frame rate, and any TCG preset values
  • LED indicators show if TCR or TCG is selected for display, drop frame timecode, Preset-1, Preset-2 selected to preset the TCG, TCG genlock status, and TCR FPS detect status
  • Provides both balanced XLR and unbalanced RCA inputs and outputs for timecode
  • TCR reads SMPTE timecode at speeds from one frame-per-second up to about 10 times play speed
  • TCR auto FPS detect mode operates automatically to detect 23.976, 24, 25, 29.97DF, 29.97ND, and 30 fps frame rates
  • FPS DET LED indicator shows when frame rate has been accurately detected and measured
  • TCG starting time can quickly be preset either to one of two user preset values or jammed to the timecode value being read by the TCR
  • TCG Run/Stop momentary action switch permits quick starting and stopping of the TCG incrementing the timecode value
  • TCG operation can be set to free run or to genlock (phase lock) the generated timecode to the incoming video or to the incoming timecode
  • LED indicator shows if TCG is genlocked or not. When in free run mode the TCG has a very low free run drift rate of less than +/- 1 frame-per-hour
  • NTSC/PAL composite SD video ("bi-level") or HD tri-level sync inputs can be used for video genlock reference for the TCG
  • Standard SMPTE 29.97DF, or 29.97ND fps TCG timecode can be genlocked to an externally applied 29.97 fps NTSC SD video or to 59.94/720p or 59.94/1080i HD tri-level sync signal
  • Standard SMPTE 24, 25, or 30 fps TCG timecode can be genlocked to an externally applied PAL timecode, 25 fps SD PAL video, or 50/720p or 50/1080i HD tri-level sync
  • 29.97SD video input or a 29.97ND timecode input can genlock 23.976 TCG timecode, and vice versa
  • Operates from a small AC power adapter, which is included, or can be operated in the field from 9 to 12 VDC battery power
  • Brightness control permits adjusting display intensity for indoor use in a darkened room or outdoor use in bright light
  • Can be installed in 19" rack or wall mounted by using an appropriate adapter kit
In the Box Horita TRG-100 Timecode Reader/Generator
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Horita TRG-100 Timecode Reader Generator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Horita TRG-100 Specs

    Power Operation: 9 to 12 VDC, approximately 300 mA
    Connector: Mini phone plug, 0.125" (3.5 mm), center positive
    AC Adapter: 9 V, 500 mA
    Video In/Out Level: Standard definition NTSC or PAL 1 V p-p composite video, HD Tri-Level Sync input
    Connector: BNC - looping, must be externally terminated at 75 Ohms for proper operation
    Time Code Un-Balanced
    Input
    Level: 200 mV to -10 V p-p
    Connector: RCA

    Output
    Level: 1.6 V p-p square wave. Rise time approximately 35us
    Connector: RCA

    Balanced
    Input
    Level: Balanced +/- 200 mV to +/- 10 V p-p square wave
    Connector: Female XLR-3, 1=GND, 2=TC+, 3=TC-

    Output
    Level: Balanced +/- 1.6 V p-p square wave. Rise time approximately 35us Connector: Male XLR-3, 1=GND, 2=TC+, 3=TC
    Frame Rates TCG: Generates timecode at 23.976, 24, 25, 29.97DF, 29.97NDF, and 30 fps
    Video/TCR Genlock: +/-1 TCG bit time maximum
    1PPS Genlock: Frame 00 +/-2.5 ms maximum
    Free-run Stability: Maximum drift of +/- 1-frame-per-hour over operating temperature range

    TCR: Reads 23.976, 24, 25, 29.97DF, 29,97NDF, and 30 fps SMPTE Longitudinal timecode from approximately 1/10 play speed up too 10X play speed. For TCG timecode genlock the TCR reads timecode at play speed +/- approximately 15%
    Auto Frame Rate Detect: Measures and displays the frame rate of the timecode that the that the TCR is reading and differentiates between 23.976 fps and 24 fps, and 29.97 fps and 30 fps
    Switches Power On/Off: Toggle switch
    Mode, Count: Momentary action toggle switch
    Genlock, Display: Toggle switch
    Environment Operating: 41 to 104°F (5 to 40°C)
    Storage: 14 to 140°F (-10 to 60°C)
    Dimensions Desktop: 1.75 x 3.5 x 4.5" (4.44 x 8.9 x 11.4 cm)
    Rackmount: 1.75 x 19 x 7" (4.44 x 48 x 18 cm)
    Weight Approximately 15 oz (425 g) including power adapter
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 13.0 x 9.7 x 3.3"
