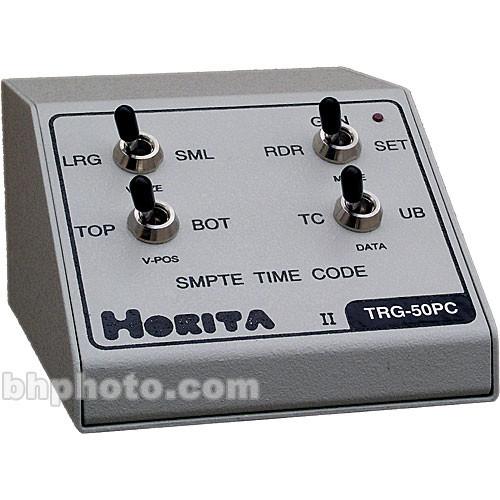

User Manual for Horita TRG-50PCP PAL LTC Generator Reader Window Burn Inserter, Composite, RS-232 Click to enlarge the picture
Contents of the user manual for the Horita TRG-50PCP PAL LTC Generator Reader
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita TRG-50PCP PAL LTC Generator Reader contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TRG-50PCP is a PAL Longitudal Time Code Reader and Generator; it accepts composite video and LTC and outputs composite video with a time code window. It features jamsync, preset capabilities and reads time code in Forward and Reverse. This model comes with software and connectivity for tape logging on a PC. - Window Burn
- Makes burned-in EBU LTC Window Dub copies featuring user bit information.
- Read Out
- Indicates Drop-Frame or Non-Drop-Frame Time Code.
- Basic Reader
- Also functions as Play Speed Time Code Reader.
- Adjustable Window
- Adjustments for horizontal and vertical size and position of window burn.
- Timer
- A selectable 30, 60, 90 or 120 second automatic generator backtime.
- Jamsync
- Jamsync mode jams to time code input and output's new jamsync LTC.
- 10x Read Speed
- This model has the ability to read LTC 1/30 to 10x Play speed; also can read in Forward and Reverse.
- Tape Logging
- The PC Model features tape logging software and an RS-232 cable for PC connection.
- PAL
- This model accepts PAL Televison Standard video and LTC.
In the Box Horita TRG-50PCP PAL LTC Generator / Reader / Window Burn Inserter, Composite, RS-232 AC Power Adapter Tape Logging Software RS-232 Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TRG-50PCP PAL LTC Generator Reader Window Burn Inserter, Composite, RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TRG50PCPAL Specs | Input | Composite Video, on a BNC connector
Longitudal Time Code, on an RCA connector
RS-232, on a Multipin connector | | Output | Composite Video, with LTC window burn, on a BNC connector
Longitudal Time Code, on an RCA connector | | Television System | PAL @ 4.43 MHz | | Control | Front Panel:
Large or Small Font
Top or Bottom Position
Generate/Read/Set
Time Code or User BitSide Panel:
Horizontal Position
Horizontal SizeRear Panel:
Power On/Off | | Power Source | 9 VDC From an AC Power Adapter | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 3.42 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
