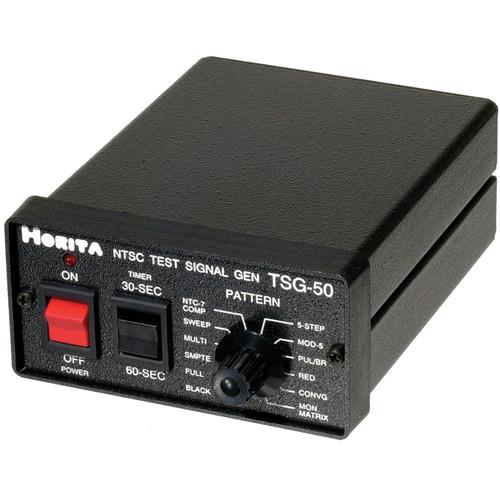

User Manual for Horita TSG-50 NTSC Signal Generator, 12 Test Patterns, Sync, Audio Tone, Reference Frame Click to enlarge the picture
Contents of the user manual for the Horita TSG-50 NTSC Signal Generator, 12
- Product category: Video & Audio Signal Generators Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Video & Audio Signal Generators
|
User manual for the Horita TSG-50 NTSC Signal Generator, 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The TSG-50 is an NTSC test generator featuring multiple patterns. It offers a timer for creating tape leaders and an audio test signal for the user's convenience. - 12 Test Patterns
- The TSG-50 generates 12 user selectable NTSC test patterns for production and engineering use.
- Sync Pulse
- A sync pulse is generated and provided on a separate connection for those devices requiring this signal for reference.
- Timer
- A selectable 30 or 60 second timer is provided for tape striping and duplication applications. It gives bars and tone for the selected time period and then switches to black burst.
- Audio Tone
- An audio tone is generated featuring a 1 KHz/400 Hz signal for the users audio applications.
In the Box Horita TSG-50 NTSC Signal Generator, 12 Test Patterns, Sync, Audio Tone, Reference Frame AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TSG-50 NTSC Signal Generator, 12 Test Patterns, Sync, Audio Tone, Reference Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TSG-50 Specs | Output | Composite Video, 12 Selectable Test Patterns, on a BNC connector
Sync Pulse, on a BNC connector
Audio Tone, 1 KHz/400 Hz, on an RCA connector
Reference Frame, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Power Switch
TimerRotary Switch Pattern Selection:
Black Burst
Full Field Color Bars
SMPTE Color Bars
Multiburst
0.5 to 5 MHz Frequency Sweep
NTC-7 Composite
5-Step Luminance Staircase
5-Step Modulated Staircase
Pulse and Bar with Window
Red Field
17H x 14V Convergence
Monitor Matrix Test Signals | | Power Source | 9 VDC from a 120 VAC @ 50/60 Hz AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.4 x 7.9 x 3.5" |
