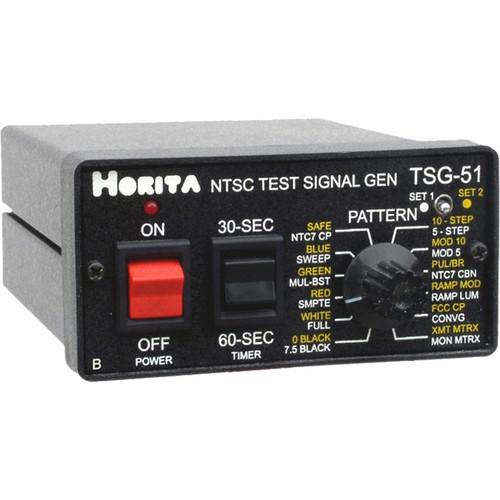

Product description The TSG-51B is an NTSC test generator featuring multiple patterns; this model offers 24 patterns for engineering usage. It offers a timer for creating tape leaders and an audio test signal for the user's convenience. The "B" model offers multiple Black Burst outputs. - Test Patterns
- Along with the regular 12 test patterns; the TSG-51 generates another 12 digitally synthesized patterns. These patterns include Chroma/Luma patterns, FCC/Transmitter patterns and safe area generation.
- Sync Pulse
- A sync pulse is generated and provided on a separate connection for those devices requiring this signal for reference.
- Timer
- A selectable 30 or 60 second timer is provided for tape striping and duplication applications. It gives bars and tone for the selected time period and then switches to black burst.
- Audio Tone
- An audio tone is generated featuring a 1 KHz/400 Hz signal for the users audio applications.
- Multiple Reference Outputs
- Multiple reference outputs allow this unit to reference up to 5 devices without a distribution amplifier.
In the Box Horita TSG-51B Test Signal Generator - Multiple Patterns, Multiple Reference Output, Audio Tone AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita TSG-51B Test Signal Generator - Multiple Patterns, Multiple Reference Output, Audio Tone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita TSG-51B Specs | Output | Composite Video, 24 Selectable Test Patterns, on a BNC connector
Sync Pulse or Black Burst x5, on a BNC connector
Audio Tone, 1 KHz/400 Hz, on an RCA connector
Reference Frame, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Power Switch
TimerRotary Switch Pattern Selection:
Black Burst
Full Field Color Bars
SMPTE Color Bars
Multiburst
0.5 to 5 MHz Frequency Sweep
NTC-7 Composite
5-Step Luminance Staircase
5-Step Modulated Staircase
Pulse and Bar with Window
Red Field
17H x 14V Convergence
Monitor Matrix Test Signals
Chroma/Luma Patterns
FCC/Transmitter Patterns
Safe Area Generation Patterns | | Power Source | 9 VDC from a 120 VAC @ 50/60 Hz AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 4.0" |
