User Manual for Horita UTG-50 GPS Based Universal SMPTE Time Code Generator Click to enlarge the picture
Contents of the user manual for the Horita UTG-50 GPS Based Universal SMPTE
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita UTG-50 GPS Based Universal SMPTE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|

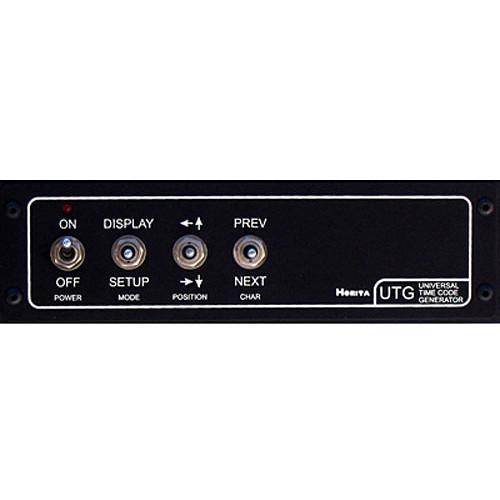

Product description The Horita UTG-50 GPS Based Universal SMPTE Time Code Generator is a multi-frame-rate SMPTE time code generator with an internal GPS receiver. The UTG-50 is truly universal and can generate at frame rates of 23.976, 24, 25, 29.97 drop/non-drop frame, or 30 frames-per-second (FPS). The UTG-50 is designed to provide SMPTE time code that represents accurate "real time" time and date. The SMPTE time code time value can be preset and locked to GPS data via an internal GPS receiver, to an internal real-time clock/calendar chip, or to an external time code input.
Date information can be embedded into the user bits of the time code in either HORITA or Leitch formats. Time and date can be set to Greenwich (GMT) or offset to any local time and date. Automatic daylight-savings-time (DST) correction of the time and date is provided and the user can easily setup if and when DST correction is to occur.
The UTG-50 requires an SD composite video input signal in order to display its various "on-screen" setup menus. These menus are separated into various time, date, display, etc., setup screens to provide quick, simple, and easy setup, check out, and monitoring of UTG-50 operation. Once set up, the video input signal is generally not necessary in order for the UTG to operate correctly. - Various time and date display formats are provided if it's desired to overlay time and date onto the input video display.
- Up to nine lines of twenty characters each of source ID can be added to the time/date display.
- Video genlock feature allows accurate phasing and recording of time code whenever recording time code and video.
- RTC chip can be set to GPS time and date to use as an automatic backup should GPS reception be lost.
- An "alarm" signal is output if the UTG-50 fails to operate correctly.
- User selectable manual and automatic setup modes simplify setting up the UTG-50 for use in typical situations and for special applications of SMPTE time code.
- Provides both balanced and unbalanced time code outputs.
In the Box Horita UTG-50 GPS Based Universal SMPTE Time Code Generator AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita UTG-50 GPS Based Universal SMPTE Time Code Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita UTG-50 Specs | Input | Composite Video, on a BNC connector
Longitudal Time Code, on an RCA connector
GPS Serial Input, on a multi-pin connector | | Output | Composite Video, on a BNC connector
Longitudal Time Code, on an RCA connector | | Television System | Universal for 24, 25, 29.97, or 30 fps. | | Control | Front Panel:
Format
Preset
UB or TC
Position
Characters | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 13.1 x 9.7 x 3.5" |
