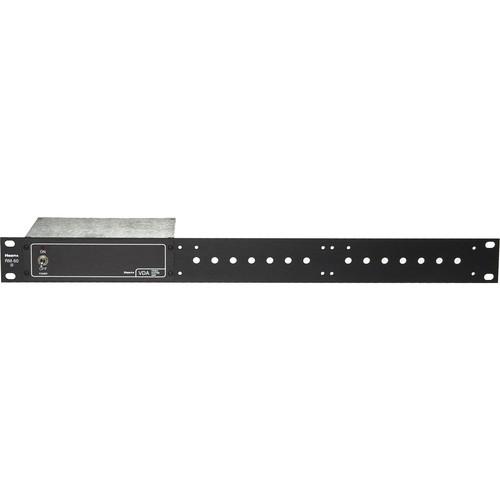

Product description The Horita VDA-50RM is a rack-mountable distribution amplifier. It has very similar specifications to its desktop version, plus a third amplifier. This allows a few more configurations and the ability to fit into a standard 19" rackmount. - Multiple Configuration
- The VDA-50RM can be configured by the end user for different tasks. The I/O configuration can be modified by Internal jumper settings, which allows the user to reassign the signal path to different connectors.
Possible I/O assignments include:- Triple 1x2
- Dual 1x4
- 1x3
- 1x5
- 1x2
- 1x8
- Adaptability
- A switchable 75 Ohm termination is included for the looping video input connector. The looping input permits multiple VDA-50RM's to be easily connected for expansion or to pass the input on to other pieces of equipment.
- Adjustability
- Three separate EQ and level internal adjustments are provided to permit amplitude and frequency compensation, for driving up to 500 feet of coaxial cable.
In the Box Horita VDA-50RM Rack-Mountable I/O Distribution Amplifier AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita VDA-50RM Rack-Mountable I O Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita VDA50RM Specs | Input | 3 x Composite BNC (looping), 1 Vpp @ 75 Ohms | | Output | 8 x Composite BNC, 1 Vpp @ 75 Ohms | | Video Bandwidth | 80 MHz typical | | Video Signal-to-Noise Ratio | Not specified by manufacturer | | Differential Phase | 0.08% typical | | Differential Gain | 0.04% typical | | Video Control | Gain and EQ
Three separate internal adjustments (one for each amplifier)
75 Ohm termination | | Coupling | Not specified by manufacturer | | Power Source | 9 VDC @ 500 mA, on AC power supply | | Dimensions (W x D x H) | 19 x 5.75 x 1.75" / 48.26 x 14.60 x 4.45 cm | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 24.0 x 13.5 x 3.0" |
