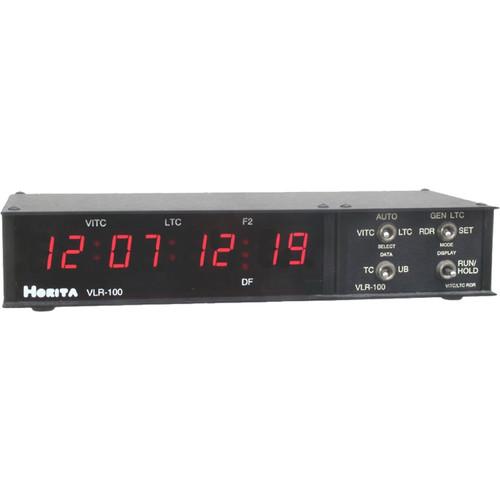

User Manual for Horita VLR-100 VITC LTC Reader LTC Generator LED Display, Composite Click to enlarge the picture
Contents of the user manual for the Horita VLR-100 VITC LTC Reader LTC
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita VLR-100 VITC LTC Reader LTC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The VLR-100 is a Time Code Reader, LTC Generator and Time Code Display; it has the ability to read VITC or LTC and generate LTC. The large LED display allows for easy reading of the desired time code. - LED Display
- 0.56" high LED character display is suitable for viewing across a room; Displays hours, minutes, seconds, and frames, plus indicators for reading VITC or LTC and Drop/Non-Drop Frame format.
- Adaptable
- Reads LTC from 1/30 to 100x play speed in forward and reverse. Reads VITC from pause to over 30x play speed in forward and reverse (depending on tape format).
- Adjustable
- Brightness control adjusts display intensity for indoor use in a darkened room, or for outdoor use in bright light
- Multiple Application
- LTC Generator outputs Drop Frame/Non-Drop Frame LTC Time-Code and/or translates VITC into LTC.
In the Box Horita VLR-100 VITC LTC Reader / LTC Generator / LED Display, Composite AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita VLR-100 VITC LTC Reader LTC Generator LED Display, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita VLR-100 Specs Input | Composite Video, with or without VITC, on a BNC connector Longitudal Time Code, on an RCA connector | Output | Composite Video, with or without VITC, on a BNC connector Longitudal Time Code, on an RCA connector | Television System | NTSC @ 3.58 MHz | Control | Front Panel: VITC or LTC or Auto TC or UB LTC: Read/Generate/Set Run or HoldRear Panel: LCD Brightness Power On/Off Indicators: Eight Digit LED VITC/LTC/DF/F2 | Power Source | 9 VDC on a AC Power Adapter | Dimensions (WxDxH) | 8.7 x 4.5 x 1.5" 22.1 x 4.5 x 1.5cm | Weight | 13 oz 362 gram | | Package Weight | 2.58 lb | Box Dimensions (LxWxH) | 13.0 x 9.5 x 3.5" |
