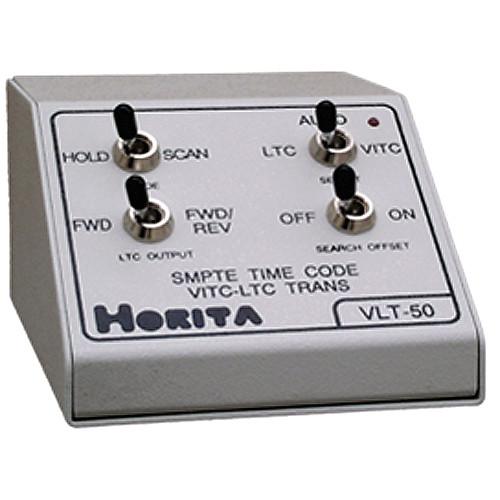

User Manual for Horita VLT-50PC VITC to LTC Time Code Translator, Composite, RS-232 Click to enlarge the picture
Contents of the user manual for the Horita VLT-50PC VITC to LTC Time
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita VLT-50PC VITC to LTC Time contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The VLT-50PC is a VITC to LTC Time Code translator; it translates time code embedded in the Vertical Interval into LTC for duplication to another tape format or to be read by Horita LTC time code reader/window burners. This version comes with PC logging software. - Still to 20x
- Translates VITC into LTC at play speed and at search speeds from +/- 20x play speed down to still frame.
- Application
- LTC output can be read by other Horita LTC products to display the VITC time code numbers frame-by-frame, make window dubs, etc.
- Format Matching
- LTC output can operate time code-based editing systems that use LTC rather than VITC and can be used to synchronize audio or video recorders requiring LTC, or to make LTC copies, etc.
- Compatibility
- Switch selectable forward only or bi-directional forward/reverse LTC output from the VLT-50 insures compatibility with a variety of LTC readers, edit controllers and synchronizers.
- RS-232
- Tape logging software comes with this unit to enable a PC to create a data base of scene logs based on time code read out.
In the Box Horita VLT-50PC VITC to LTC Time Code Translator, Composite, RS-232 AC Power Adapter TC-TOOLKIT Tape Logging Software RS-232 Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita VLT-50PC VITC to LTC Time Code Translator, Composite, RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita VLT-50 PC Specs | Input | Composite Video, with VITC, on a BNC connector | | Output | Composite Video, on a BNC connector
Longitudinal Time Code, on an RCA connector
RS-232, on a multipin connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Forward or Bidirectional
Auto Select Mode
Search Offset | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 3.28 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 4.0" |
