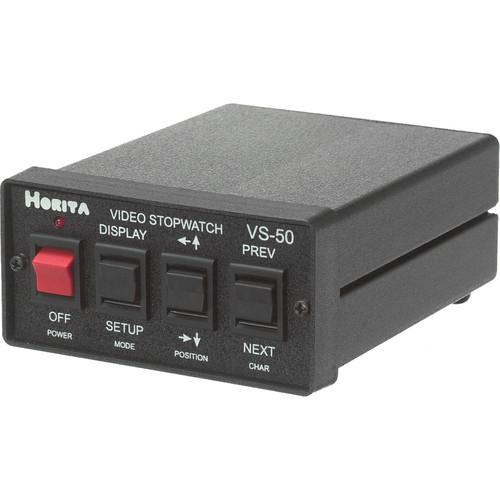

User Manual for Horita VS-50 Video Stopwatch, Overlay Stopwatch for Production Countdown, Remote, GPI Click to enlarge the picture
Contents of the user manual for the Horita VS-50 Video Stopwatch, Overlay Stopwatch
- Product category: Teleprompter Accessories Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Teleprompter Accessories
|
User manual for the Horita VS-50 Video Stopwatch, Overlay Stopwatch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The VS-50 "Video Stopwatch" overlays Video with a digital stopwatch display that can count either up or down. Use it to time lectures, events, indicate time remaining for announcers, talent, etc. The VS-50 can be controlled by front panel or remote switches. - Readable Characters
- Adjustable character size includes exceptionally large characters for viewing across the room.
- GPI
- This unit can be programmed to output a GPI trigger when the counter counts down to zero.
- DC Back Up
- Battery backed up Clock/Calendar keeps time of day and date even when AC power is down.
- Display Variety
- Time and date can be displayed in a variety of formats; size, position, contrast and mask can be set to a variety of ways in accordance with the user's application.
- Remote
- Functions can be operated by remote control via VS-REM, video stopwatch remote control.
In the Box Horita VS-50 Video Stopwatch, Overlay Stopwatch for Production Countdown, Remote, GPI AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita VS-50 Video Stopwatch, Overlay Stopwatch for Production Countdown, Remote, GPI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita VS-50 Specs | Input | Composite Video, on a BNC connector
Remote Input x2, for device functions, on DB-9 connectors | | Output | Composite Video, with generation, on a BNC connector
GPI Output, on an RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Power: On/Off
Mode: Display/Setup
Position: Up/Down, Left/Right
Preview/Next Character | | Power Source | 9 VDC from an AC Power Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 13 oz
345 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.4 x 7.9 x 3.6" |
