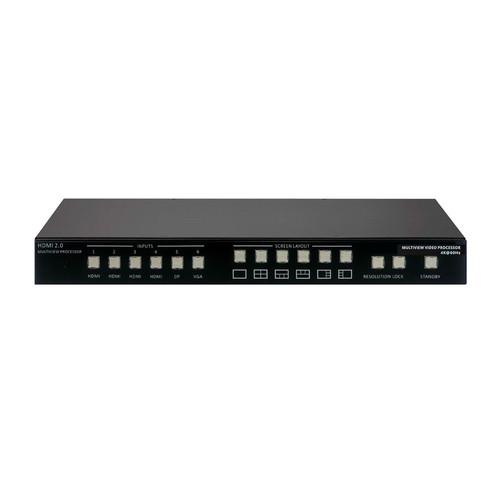

User Manual for HornetTek HDMI 2.0 4K Multiview Video Processor

Click to enlarge the picture
HornetTek HDMI 2.0 4K Multiview Video Processor Contents of the user manual for the HornetTek HDMI 2.0 4K Multiview Video
  • Product category: Multiviewer Processors HornetTek
  • Brand: HornetTek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HornetTek Multiviewer Processors

User manual for the HornetTek HDMI 2.0 4K Multiview Video contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HornetTek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HornetTek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HornetTek product will considerably shorten its lifespan!



Product description

The HornetTek 4K Multiview Video Processor allows you to connect four video sources over HDMI and output 14 different four-window layouts to an HDMI display or DisplayPort monitor. The output can be set to automatically upscale/downscale to up to Ultra HD 4K/30 resolution and also auto-detect EDID. Six front panel preset buttons let you switch between six of the most common layouts, while an additional eight buttons on the included remote control offer eight more layouts to choose from. The six front panel buttons are also mirrored on the remote control.

All 14 layouts can also be controlled over a Web UI, Ethernet, and RS-232 serial control. The Web UI additionally allows full EDID management, audio delay, and volume adjustments, enabling you to easier integrate the device into larger systems. The 4K Multiviewer is suitable for digital signage, presentation systems, conferencing, interactive display, IP and network distribution, and various other applications.

You can also flip and rotate an image 90° with a simple push of a button, partially enlarged if you'd like (the input resolution in this case must be at least in 1080p, and the output configuration must be a full screen layout). Moreover, four of these units can also be used together in one setup (in combination with an HDMI splitter) to output one signal split among four screens.

The 4K Multiviewer supports up to Ultra HD 4K/30 resolution sources via the HDMI inputs, Ultra HD 4K/60 via a DisplayPort input, and up to 1080p over a VGA input. It supports 5.1 and 7.1 channel audio via HDMI input and features a separate analog stereo audio input. It outputs stereo audio via HDMI and additionally offers a Phoenix audio output for connecting to an external speaker system.

The 4K Multiviewer is HDCP compliant and 1RU rack-mountable.
    Key Features
    • 4 HDMI inputs supporting up to Ultra HD 4K/30 resolution
    • Auto up/downscaling to up to Ultra 4K/30
    • DisplayPort input supporting up to Ultra HD 4K/60
    • VGA input supporting up to 1080p
    • HDMI and DisplayPort outputs
    • Output 14 different four-window layouts
    • Auto EDID detection
    • Front panel, IR remote control, Web UI, Ethernet, and RS-232 control
    • 5.1 and 7.1 channel audio input/output
    • Analog stereo audio input
    • Phoenix audio output
    • 90° image flip and rotation with partial enlargement
    • EDID management, audio delay, and volume adjustments via Web UI
    • HDCP compliant
    • 1RU rack-mountable
    • Four units can be used together to output one signal to four screens
UPC: 799599165268 In the Box HornetTek HDMI 2.0 4K Multiview Video Processor
  • IR Remote Control
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HornetTek HDMI 2.0 4K Multiview Video Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HornetTek HT-BHM-11 Specs

    Input 4 x HDMI Type A each supporting up to Ultra HD 4K resolution (3840 x 2160) at 30 fps

    1 x DisplayPort supporting up to Ultra HD 4K resolution (3840 x 2160) at 60 fps

    1 x VGA supporting up to 1080p and (WUXGA)

    Refresh Rate: Ultra HD 4K at 60 Hz
    Output 1 x HDMI capable of up to Ultra HD 4K at 30 fps output, 1 x DisplayPort

    Refresh Rate: Ultra HD 4K at 60 Hz
    Color Sampling Up to 4:4:4 input/output
    HDCP Compliance HDCP 1.4/1.2 compliant
    Audio Input/Output 5.1 channel audio input (such as Dolby Digital 5.1 and DTS 5.1), and uncompressed 7.1 linear PCM audio input via HDMI; stereo audio output via HDMI

    1 x stereo analog audio input/output, 1 x Phoenix audio output

    *The analog input signal is combined with the HDMI video input signal and routed to the scaler's HDMI output simultaneously
    Other Connections 1 x RJ45, 1 x RS-232 (9-pin), 1 x USB (for firmware updates)
    Rackmount 1 RU
    Package Weight 8.5 lb
    Box Dimensions (LxWxH) 20.0 x 15.7 x 3.7"
