HornetTek Titan 2-Bay USB 3.1 RAID Enclosure HornetTek Titan 2-Bay USB 3.1 RAID Enclosure
User manual for the HornetTek Titan 2-Bay USB 3.1 RAID contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HornetTek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HornetTek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HornetTek product will considerably shorten its lifespan!



Product description

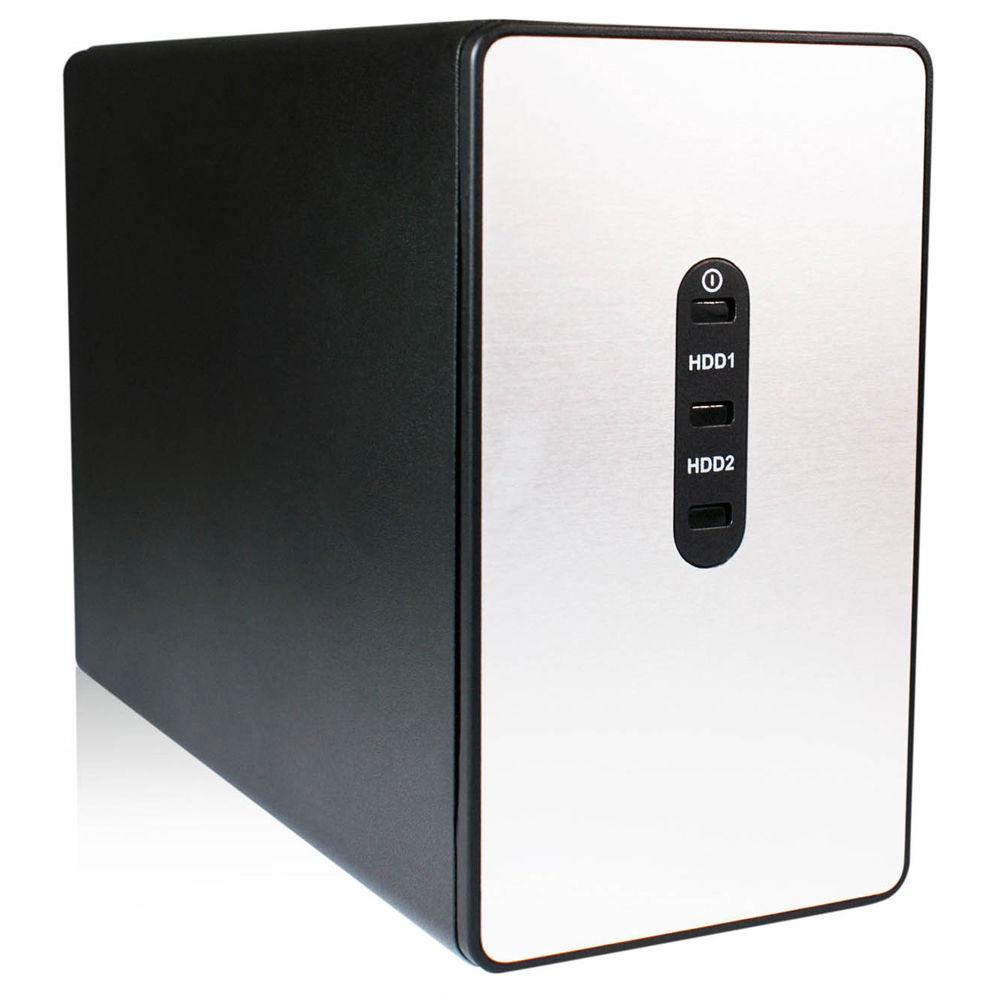

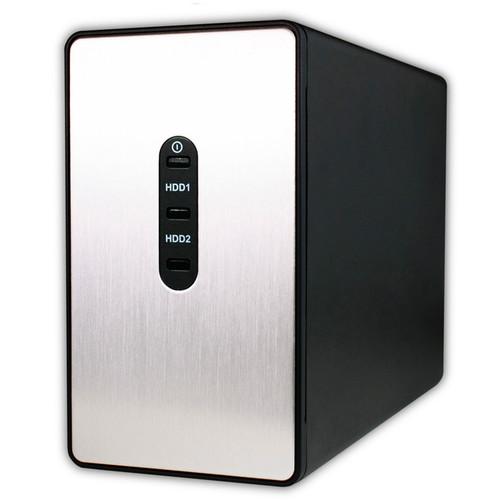

The Titan 2-Bay USB 3.1 RAID Enclosure from HornetTek features two 2.5" bays that can accommodate SATA I, II, or III hard drives or solid-state drives, up to 15 mm tall and with a capacity larger than 2TB. It's USB 3.1 compliant so you'll be able to transfer data quickly at up to 10 Gb/s. Furthermore, it supports multiple RAID modes including JBOD, RAID 0, and RAID 1 for capacity, redundancy, or speed. The Titan's aluminum enclosure keeps the drives cool while a built-in 4 cm fan provides extra heat dissipation. This enclosure can be bus-powered, but a power adapter is included should it need more in order to function. LED indicators on the device will notify you on the device's status as well as drive activity with just a quick glance. You'll be able to connect this device to your system via a USB Type-A port, or the reversible USB Type-C port with the included adapter.
  • Fits up to two 2.5" drives with a height of 5, 7, 9.5, 12.7, or 15 mm
  • Supports SATA I, II, and II hard drives and solid-state drives
  • Supports JBOD, Normal, RAID 0, and RAID 1 configurations
  • Bus-powered with a wall adapter included for extra power
  • Aluminum housing and a built-in 4 cm fan to help dissipate heat
  • Backwards compatible with USB 3.0, 2.0, and 1.1

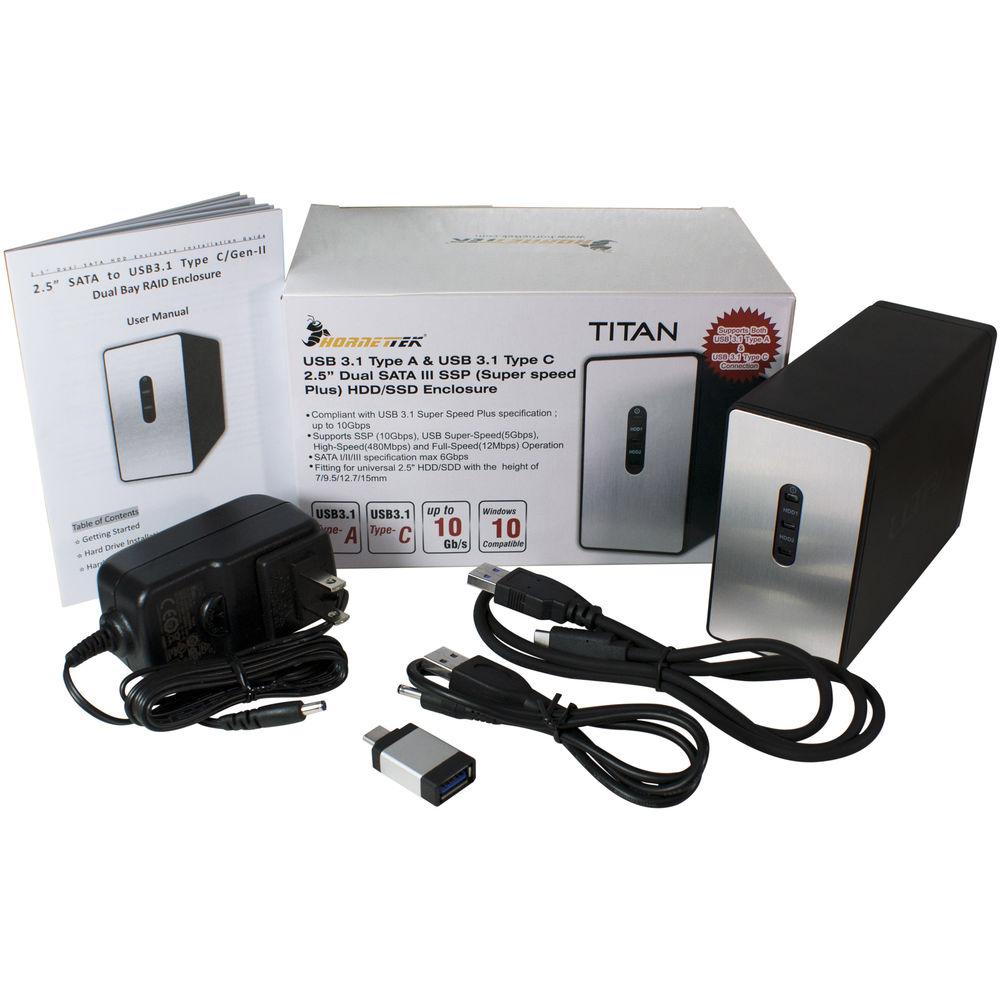

UPC: 799599165145 In the Box HornetTek Titan 2-Bay USB 3.1 RAID Enclosure
  • Power Adapter
  • USB Cable
  • USB Type-A to Type-C Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HornetTek Titan 2-Bay USB 3.1 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HornetTek HT-237APC(NEW) Specs

    Number of Bays 2 x 2.5"
    Maximum 2.5" SATA Drive Height 15 mm
    Connections 1 x USB Type-B (USB 3.1 Gen 2 (10 Gb/s))
    Compatible Drive Interface SATA III
    RAID Modes RAID 0, 1, JBOD
    Operating System Support Linux, Windows, macOS/OS X
    Power Source AC Adapter, USB
    DC Input Power 5 VDC at 2 A
    Material of Construction Aluminum
    Cooling 1 x 40 mm Fan
    Bridge Chipset ASMedia ASM1352R
    ASMedia ASM1542
    Status Monitoring LED Indicator
    Dimensions (W x H x D) 5.2 x 2.0 x 3.5" / 133.0 x 52.0 x 90.0 mm
    Weight 4.2 lb / 1.9 kg
    Package Weight 1.5 lb
    Box Dimensions (LxWxH) 7.1 x 4.8 x 4.3"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 16 owners. Add your rating and experience with the product.
