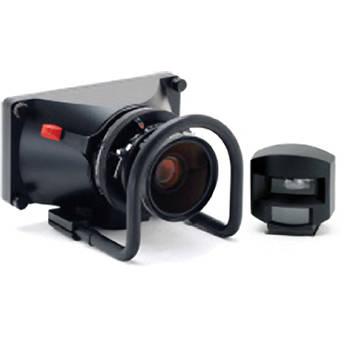

Product description The Horseman 110mm f/5.6 Super-Symmar XL Lens is a Schneider 110mm f/5.6 Super-Symmar XL with a standard Copal #1 shutter, but built into a Horseman-specific helical focusing mount and barrel assembly made to fit upon their SW617 Professional medium format panoramic camera. It provides a wide angle perspective on the 617 Professional that's roughly equivalent to the view of a 27mm lens in 35mm terms; pleasantly wide, but not distorting the spatial relationships of objects in a scene. A built-in lens guard helps protect the sensitive optics. The Schneider Super-Symmar XL 110 is an aspherical wide-field lens design which gives extremely high peak contrast and resolving power when stopped down to at least f/11. Its 80° of coverage and 186mm minimum image circle do permit use with the 617 Professional at the maximum aperture if needed, however. The 6 element/4 group aspherical has a 105° viewing angle and a 288mm peak image circle, allowing plenty of shift with the 617 Professional. - A Schneider 110mm f/5.6 Super-Symmar XL with standard Copal #1 shutter, built into Horseman-specific helical focusing mount/barrel assembly
- Aspherical design permits extremely high peak resolution and contrast with excellent correction for distortion
- Exclusively made to fit Horseman SW617 Professional medium format camera
- Focuses as close as 5.2' (1.6m)
- Provides wide panoramic format without distortion
- Uses 67mm filters on front, or 52mm filters upon rear lens element
- Large maximum aperture aids focusing in poor light
- Extremely fine resolving power and contrast when stopped down just a few steps from maximum aperture
In the Box Horseman 110mm f/5.6 Super-Symmar XL Lens for SW617 Viewfinder Copal #1 Shutter Push-On Front & Rear Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman 110mm f 5.6 Super-Symmar XL Lens for SW617 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman 21397 Specs | Optical Construction | 6 elements in 4 groups | | Closest Focusing Distance | 5.2' (1.6m) | | Aperture Range | f/5.6-45 | | Covering Power | 115° | | Image Circle @ Infinity | 186mm diameter @ f/5.6
288mm diameter @ f/22 | | Shutter | Copal #1 | | Shutter Speed | 1/400th to 1 Second plus B & T | | Filter Size | 67mm EW front
52mm rear | | Weight | 2.9 lbs (1.30kg) |
