User Manual for Horseman 23mm f 5.6 HR Digaron-S Lens Unit for Select Horseman Cameras Click to enlarge the picture
Contents of the user manual for the Horseman 23mm f 5.6 HR Digaron-S
- Product category: Medium Format Lenses Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman Medium Format Lenses
|
User manual for the Horseman 23mm f 5.6 HR Digaron-S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|

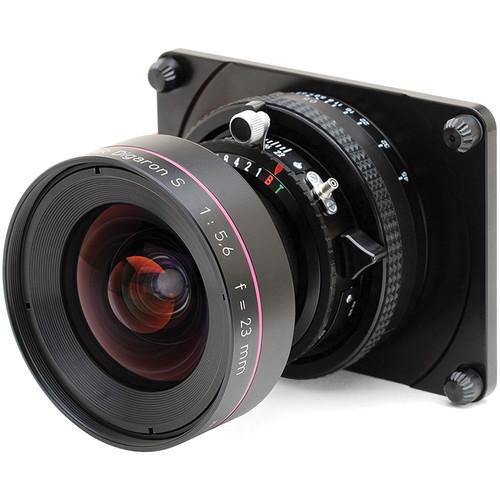

Product description The 23mm f/5.6 HR Digaron-S Lens Unit for Select Horseman Cameras from Horseman is a Rodenstock 23mm HR Digaron-S lens with a standard Copal #0 shutter built into a Horseman-specific helical focusing mount and barrel assembly made to fit upon SWD PRO, SWDII PRO, and SW612D cameras. This lens provides a wide angle of view and a large image circle. The 23mm lens unit in combination with a 40 x 54mm image sensor gives you the same wide angle as a 15mm lens with the 35mm format. Rodenstock Digital lenses are optimized for use with a digital back on your large format camera. The HR feature denotes the high resolving power of this lens and is excellent for high-resolution CCD sensors with small pixel sizes.While this lens unit will fit on multiple cameras it was introduced with the Horseman SW612D which is a super-wide camera developed for use with digital camera backs and roll film holders. The camera becomes compatible with camera backs offered by various makers by simply interchanging adapter plates or with the Horseman Roll Film Holders from 6x7 to 6x12cm formats. It features very lightweight and compact design yet rugged CNC machined precision mechanism to help handheld shooting effortlessly. - A Rodenstock 23mm HR Digaron-S digital lens with standard Copal #0 shutter, built into Horseman-specific helical focusing mount/barrel assembly
- The 23mm f/5.6 HR Digaron-S Lens Unit is compatible with the Horseman SW612D, SWDII PRO and SWD PRO cameras.
In the Box Horseman 23mm f/5.6 HR Digaron-S Lens Unit for Select Horseman Cameras Copal #0 Shutter Front lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman 23mm f 5.6 HR Digaron-S Lens Unit for Select Horseman Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman SW DIGARON-S Specs | Focal Length | 23 mm | | Aperture | Maximum: f/5.6 | | Angle of View @ Infinity | 112° | | Image Circle @ Infinity | 70 mm @ f/11 | | Minimum Focus Distance | 1.64' / 0.5 m | | Optical Design | 15 Elements in 11 Groups | | Shutter | Copal | | Shutter Type | Copal # 0 | | Shutter Speeds | 1 / 500 to 1 second | | Flange Focal Distance | 44.8 mm | | Filter Thread | Front: 72 mm | | Weight | 1.67 lb / 760 g |
