Horseman 511857 Carbon Fiber Tripod with

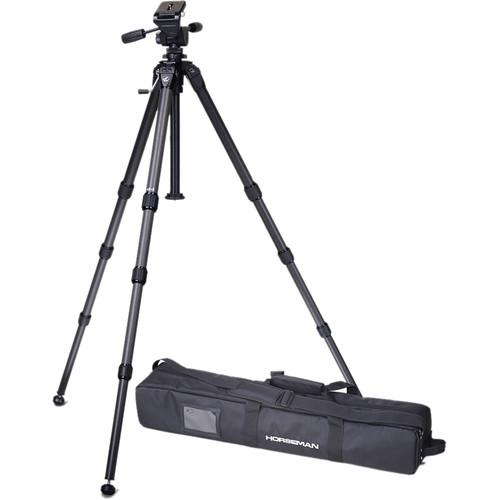

User Manual for Horseman 511857 Carbon Fiber Tripod with Pan Head and Soft Case

• Product category: Tripods with Heads Horseman
• Brand: Horseman
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Horseman Tripods with Heads

Product description

• 511859 Aluminum Pan Head The Horseman 511859 Aluminum Pan Head is designed with two large pan-and tilt handles for vertical and horizontal movement, and the height of the head is 5.3" and weighs 3.1 lb. At the same time, the weight capacity of the head is 22 lb, which is suitable for SLR or DSLR cameras with large lenses. Meanwhile, the dual spirits keep your camera leveled in either axis.
• 511858 Carbon Fiber Tripod with Soft Case The 511858 Carbon Fiber Tripod with Soft Case from Horseman is a four-section camera support with a load capacity of 22 lb, which makes it suitable for the advanced amateur, professional photographer, or someone just looking for a strong and sturdy tripod. Moreover, unlocking the twist leg locks and fully extending the geared center column and legs enables the tripod to reach a maximum height of 75.8". Also, because of the three-variable leg angles, the 7.8 lb support can go as low as 17.7". Additionally, to store the tripod in the included soft case, the support has a folded length of 24.4".
  • With legs and geared center column fully extended, the tripod has a maximum working height of 75.8"
  • The carbon fiber legs have 3-variable leg angles, which enable the tripod to have a minimum working height of 17.7"
  • The twist leg locks open or close the legs for storage and fold the tripod down to 24.4"
  • The load capacity of the tripod is 22.1 lb, which is suitable for large DSLRs with heavy lenses

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 511859 Aluminum Pan Head

  Load Capacity	22 lb (10 kg)
  Quick Release	None
  Spirit Level	Two bubble levels
  Tripod Mount Thread Size	3/8"-16
  Height	5.3" (13.5 cm)
  Weight	3.1 lb (1.4 kg)

• 511858 Carbon Fiber Tripod with Soft Case

  Load Capacity	22 lb / 9.98 kg
  Maximum Working Height	75.8" / 192.5 cm
  Max Height without Center Column	64.6" / 164.08 cm
  Minimum Working Height	17.7" / 45 cm
  Folded Length	24.4" / 61.98 cm
  Head Mount Type	3/8"-16 Screw
  Weight	7.8 lb / 3.54 kg
  Materials	Carbon Fiber
  Bubble Level	No

  Leg Lock Type	Twist Lock
  Leg Positions	3 Positions
  Independent Leg Spread	Yes
  Leg Sections	4
  Leg Diameter	1.4" / 35.56 mm 1.3" / 33.02 mm 1.2" / 30.48 mm 1.1" / 27.94 mm
  Feet Features	Retractable

  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Geared
