User Manual for Horseman 72mm f 5.6 Super-Angulon XL Lens Unit for 617 Click to enlarge the picture
Contents of the user manual for the Horseman 72mm f 5.6 Super-Angulon XL
- Product category: Medium Format Lenses Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman Medium Format Lenses
|
User manual for the Horseman 72mm f 5.6 Super-Angulon XL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|

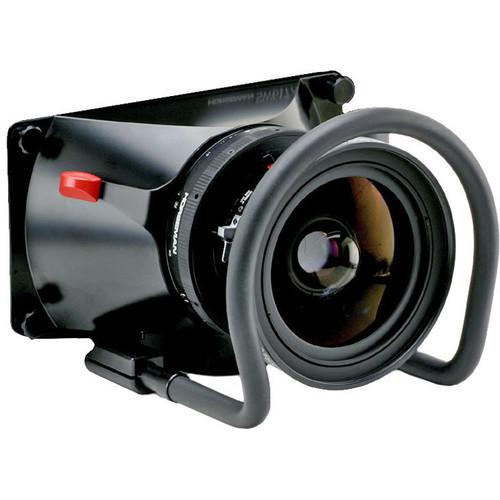

Product description The Horseman 72mm f/5.6 Super-Angulon XL Lens is a Schneider 72mm f/5.6 Super-Symmar XL with a standard Copal #0 shutter, but built into a Horseman-specific helical focusing mount and barrel assembly made to fit upon their SW617 Professional medium format panoramic camera. It provides an extremely wide angle perspective on the 617 Professional that's roughly equivalent to the view of a 18mm lens in 35mm terms. A built-in lens guard helps protect the sensitive optics. For critical work with transparencies, the optional Horseman #28997 center filter ( code "HOCF72") is highly recommended. The Schneider Super-Angulon XL 72 is a modern 8-element/4-group wide angle lens design for critical performance in large format cameras. Its 115° maximum coverage provides plenty of room for shift with the 617 Professional. This lens is designed to be shot at f/16-f/22 for ideal performance. - A Schneider 72mm f/5.6 Super-Angulon XL with standard Copal #0 shutter, built into Horseman-specific helical focusing mount/barrel assembly
- Modern 8-element/4-group optical design
- Exclusively made to fit Horseman SW617 Professional medium format camera
- Focuses down to just 2.6' (0.8m)
- Provides wide panoramic format with great correction of distortions
- Large maximum aperture aids focusing in poor light
- Extremely fine resolving power and contrast when stopped to f/16-f/22
In the Box Horseman 72mm f/5.6 Super-Angulon XL Lens Unit for 617 72mm Optical Viewfinder for the Horseman SW-617 artaftradbyaxdu Copal #0 Shutter 100mm Push-On Lens Cap 75mm Push-On Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman 72mm f 5.6 Super-Angulon XL Lens Unit for 617 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman 21391 Specs | Optical Construction | 8 elements in 4 groups | | Closest Focusing Distance | 2.6' (0.8m) | | Aperture Range | f/5.6-45 | | Covering Power | 115° | | Image Circle @ Infinity | 166mm diameter @ f/5.6
226mm diameter @ f/22 | | Shutter | Copal #0 | | Shutter Speed | 1/500th to 1 Second plus B & T | | Filter Size | 95mm EW | | Weight | 2.7 lbs (1.24kg) |
