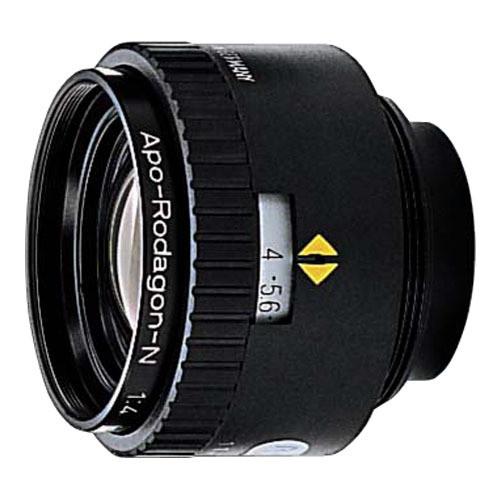

User Manual for Horseman Apo-Rodagon-N 80mm f 4.0 Lens for VCC Pro Click to enlarge the picture
Contents of the user manual for the Horseman Apo-Rodagon-N 80mm f 4.0 Lens
- Product category: Large Format Lenses Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman Large Format Lenses
|
User manual for the Horseman Apo-Rodagon-N 80mm f 4.0 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|
Product description The Horseman VCC Pro is an exciting precision tool that uses its bellows functions to basically turn your Nikon or Canon DSLR into a full-featured view camera. Tilt, swing, shift, fall and rise are normal view camera movements but rarely applicable to DSLRs. Using specially chosen Rodenstock lenses, the VCC Pro allows creative or corrective perspective and depth of field control in-camera instead of in post-production.This Rodenstock Apo-Rodagon-N 80mm f/4.0 Lens for the VCC Pro by Horseman has a tried-and-true 8 element design with edge-to-edge high contrast and superior resolution. Of course, Apo means color rendition of the highest order and this lens completely eliminates even the most minor color fringing to give you images that give new emphasis to the word, "vivid." It is recommended for 2-15x reproduction and although intended for the 24 x 36mm format, the Apo-Rodagon-N 80mm f4.0 provides coverage up to 6 x 7 cm. The larger image circle means a greater range of movements with the VCC Pro. Convenience features include Aperture Pre-select, Illuminated f/stop Display and Click-stop Disable for stepless f/stop selection. - 80 mm Lens Provides Extra Coverage
- The 80 mm f4.0 Apo-Rodagon-N provides coverage up to 6 x 7 cm. The larger image circle means greater freedom of movements with the VCC Pro.
- Rodenstock Quality
- The correction of these excellent lenses with up to 8 elements was taken to the absolute limits and so ensures the full elimination of irritating visible color fringes on high-contrast structures. All monochromatic imaging errors have also been greatly reduced to give this lens type its unsurpassed image reproduction performance.
- Click-stop Diaphragm
- The click-stop diaphragm allows a fast and precise setting of a stop value even when the room is completely dark.
- Pre-set Aperture
- The pre-set aperture makes it possible to set a working aperture that can be put into operation by simply turning a ring to a stop after the picture has been composed and focused.
- Illuminated f/stop
- The illuminated f/stop display shows the f/stop set without the room lighting having to be switched on.
- Infinite f/stop setting
- The infinite stop setting allows exact stopping down when analyzers with pre-set exposure times are used.
In the Box Horseman Apo-Rodagon-N 80mm f/4.0 Lens for VCC Pro Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman Apo-Rodagon-N 80mm f 4.0 Lens for VCC Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman 29342 Specs | Focal Length | 80 mm | | Aperture | f/4.0 - 22 | | Flange Focal Distance | 77 mm | | Flange Thread | 39 mm x 1/26 | | Filter Thread | Front: 40.5 mm | | Overall Length | 1.69" (43 mm) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.4 x 4.3 x 3.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
