Horseman Axella View Camera Body for

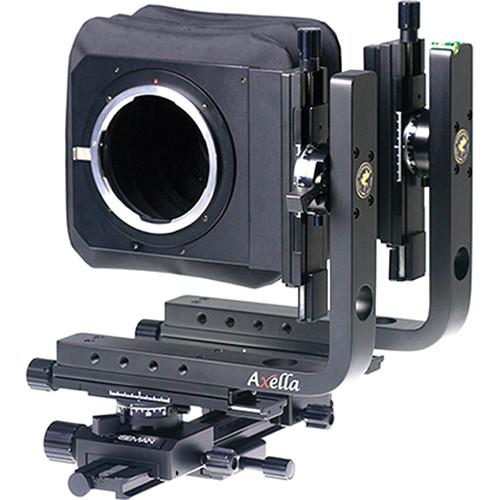

User Manual for Horseman Axella View Camera Body for Nikon F-Mount DSLR Camera

• Product category: View Camera Bodies Horseman
• Brand: Horseman
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Horseman View Camera Bodies

Product description

Camera Movements
• A full system of geared movements offers extensive control over perspective and focusing settings:

  • Rise/Fall: +/- 0.8" / 20mm
  • Shift: +/- 0.8" / 20mm
  • Swing: +/- 100° (from center of image plane)
  • Tilt: +/- 90° (from center of image plane)

Image Axis Fulcrum Swing & Tilt System
• Both swing and tilt movements rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.

Main Frame Drive
• Further alleviating the need to re-focus when utilizing perspective control movements, M.F.D. (Main Frame Drive) is a unique rise/fall system that elevates or lowers the optical axis in accordance to the oblique angle determined by the amount of tilt in use. Rather than vertically shifting perpendicular to the monorail, M.F.D. permits up to 20mm of movement perpendicular to the optical axis (parallel to the lens surface) in order to maintain critical focus on oblique subjects. This unique re-compositional tool also benefits stitching imagery in the horizontal orientation by maintaining focus and perspective as the image sensor plane shifts.

Body Design
• Despite the rigidness and physical structure necessitated by a view camera's form factor, the Axella weighs 6.6lb and can be positioned to measure just 2.6"-thick, with the bellows removed and the L-type arms swung 90°, to benefit traveling and storage.

  The base mount is also designed to fit directly within Arca-Swiss-style clamps for direct mounting to a vast assortment of tripod heads.

Lens Capabilities and Compatibility
• The Axella affords a short flange back distance of just 1.2" / 30mm to benefit the use of wide-angle lenses in conjunction with different sized sensors. Additionally, the included bellows' maximum draw is 6.9" / 175mm, which affords life-size magnifications ratios with focal lengths as wide as 80mm. The bellows focusing enables a breadth of close-up shooting capabilities with nearly any focal length for greater versatility with one lens setups.

  Differing from most view cameras, the Axella accepts lenses using Horseman's proprietary bayonet mounting system. This system enables the use of any large format lens with a rear diameter smaller than 2.9" / 73mm, and provides one-touch attachment and removal for faster lens switching. Each lens requires its own optional bayonet, which is mounted between the rear lens cell and the shutter: both Copal #0 or Copal #1-sized shutters are supported, as well as the Horseman ISS.

Digital Camera Compatibility
• Beyond the extensive lens compatibility, the Axella also serves as an apt host for a wide variety of digital camera types. By default, this camera is delivered with a mount for Nikon F-mount DSLR cameras; however it can also be configured to accept Canon EOS and Sony E-mount cameras using optional adapters. Additionally, Hasselblad V and Mamiya 645-mount digital backs are also supported.

  Regardless of the camera or digital back in use, the adapters' design permits easy switching between horizontal and vertical shooting orientations to avoid having to rotate the entire view camera itself.

  By working with an interchangeable lens digital camera, you are also afforded the unique ability to utilize view camera movements in conjunction with movie recording for greater control over focus, perspective, and depth of field with moving images.
