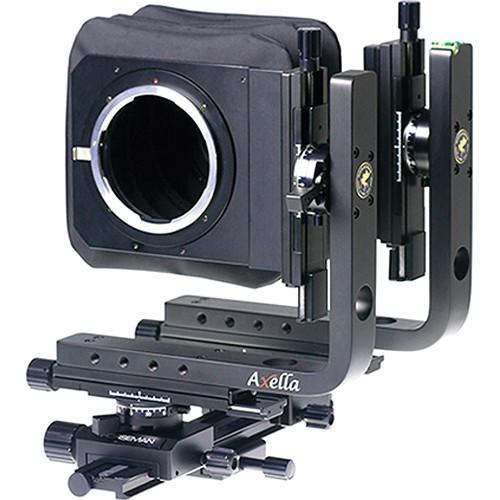

Product description Combining the precision of a traditional view camera with the convenience of a mirrorless camera, Horseman's Axella View Camera Body enables the use of perspective control movements in conjunction with Sony E-mount mirrorless cameras. Based upon a 9.8"-long monorail design, this camera affords a full system of extensive geared camera movements, including on-axis tilts and swings using the Main Frame Drive, and also permits the use of large format lenses. Utilizing a modular system, both digital cameras and lenses can quickly be swapped during use with the aid of a unique bayonet lens mounting system and dedicated camera adapter plates. Furthermore, the aluminum alloy construction and slim profile render this camera lightweight, rigid, and portable for use in both the studio as well as on location.
While designed specifically for digital imaging, the Axella system is reminiscent of conventional film-based view camera technologies, which have been refined for the narrower tolerance of contemporary image-making. Precise movements and an L-type arm structure enable exacting control as well as the ability to apply movements without the need to re-focus or re-compose. - Camera Movements
- A full system of geared movements offers extensive control over perspective and focusing settings:
- Rise/Fall: +/- 0.8" / 20mm
- Shift: +/- 0.8" / 20mm
- Swing: +/- 100° (from center of image plane)
- Tilt: +/- 90° (from center of image plane)
- Image Axis Fulcrum Swing & Tilt System
- Both swing and tilt movements rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.
- Main Frame Drive
- Further alleviating the need to re-focus when utilizing perspective control movements, M.F.D. (Main Frame Drive) is a unique rise/fall system that elevates or lowers the optical axis in accordance to the oblique angle determined by the amount of tilt in use. Rather than vertically shifting perpendicular to the monorail, M.F.D. permits up to 20mm of movement perpendicular to the optical axis (parallel to the lens surface) in order to maintain critical focus on oblique subjects. This unique re-compositional tool also benefits stitching imagery in the horizontal orientation by maintaining focus and perspective as the image sensor plane shifts.
- Body Design
- Despite the rigidness and physical structure necessitated by a view camera's form factor, the Axella weighs 6.6lb and can be positioned to measure just 2.6"-thick, with the bellows removed and the L-type arms swung 90°, to benefit traveling and storage.
The base mount is also designed to fit directly within Arca-Swiss-style clamps for direct mounting to a vast assortment of tripod heads. - Lens Capabilities and Compatibility
- The Axella affords a short flange back distance of just 1.2" / 30mm to benefit the use of wide-angle lenses in conjunction with different sized sensors. Additionally, the included bellows' maximum draw is 6.9" / 175mm, which affords life-size magnifications ratios with focal lengths as wide as 80mm. The bellows focusing enables a breadth of close-up shooting capabilities with nearly any focal length for greater versatility with one lens setups.
Differing from most view cameras, the Axella accepts lenses using Horseman's proprietary bayonet mounting system. This system enables the use of any large format lens with a rear diameter smaller than 2.9" / 73mm, and provides one-touch attachment and removal for faster lens switching. Each lens requires its own optional bayonet, which is mounted between the rear lens cell and the shutter: both Copal #0 or Copal #1-sized shutters are supported, as well as the Horseman ISS. - Digital Camera Compatibility
- Beyond the extensive lens compatibility, the Axella also serves as an apt host for a wide variety of digital camera types. By default, this camera is delivered with a mount for Sony E-mount mirrorless cameras; however it can also be configured to accept Canon EOS and Nikon F-mount cameras using optional adapters. Additionally, Hasselblad V and Mamiya 645-mount digital backs are also supported.
Regardless of the camera or digital back in use, the adapters' design permits easy switching between horizontal and vertical shooting orientations to avoid having to rotate the entire view camera itself.
By working with an interchangeable lens digital camera, you are also afforded the unique ability to utilize view camera movements in conjunction with movie recording for greater control over focus, perspective, and depth of field with moving images. In the Box Horseman Axella View Camera Body for Sony E-Mount Mirrorless Camera Axella Adapter for Sony E-Mount Mirrorless Cameras Bayonet Lens Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman Axella View Camera Body for Sony E-Mount Mirrorless Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman Axella Specs | Camera Type | Optical bench module camera | | Lens Mount | Horseman bayonet | | Monorail Length | 9.8" / 25 cm | | Focusing System | Rack and pinion drive | | Flange Back Length | 1.2-6.9" / 30-175 mm | | Mounting Base | Arca-Swiss compatible | | Construction Material | Aluminum alloy frame and synthetic bellows | | Dimensions | External: 11.0 x 8.9 x 10.0" / 280 x 225 x 255 mm
Folded: 11.0 x 17.7 x 4.6" / 280 x 450 x 117 mm | | Weight | 6.6 lb / 3 kg |
