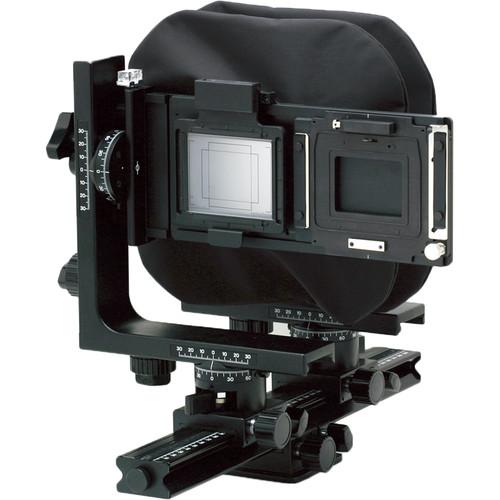

User Manual for Horseman LD Pro View Camera Click to enlarge the picture
Contents of the user manual for the Horseman LD Pro View Camera
- Product category: View Camera Bodies Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman View Camera Bodies
|
User manual for the Horseman LD Pro View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|
Product description The Horseman LD Pro View Camera is a view camera equipped with a slide-back mechanism to allow mounting of high-end camera backs to give full bellows functions. The LD Pro takes any high-end digital backs made for medium format cameras, from companies such as Phase One, Leaf, Imacon and Sinar. It allows users easy control of depth of field, distortion, lateral shift, portrait/landscape orientation, and more. The LD Pro has a four-way insert system for switching, and with its interchangeable camera mount system you'll have immediate compatibility with any Hasselblad "V," Hasselblad "H", or Mamiya 645 back. You can also control perspective distortion by tilting the back (focus plane) or, with a lateral shift; you can move the image and get larger image stitching. In addition, you can change format very quickly and smoothly. The Horseman LD Pro has a unique ability to take advantage of camera movements, such as shift and tilt. It provides a swing/tilt of up to 360°, a rise/fall of 30mm each and a lateral shift of 30mm left and right. With a conventional view camera without the LD Pro's unique focus plane axis tilt, you get focus and image shifts, which require you to refocus and re-frame. No image or focus shift occurs when using the LD Pro's back tilt/swing. It allows you to control the "plane of focus" by tilting the lens. This tilt movement controls the plane of sharp image at wider aperture. One of the most exciting features of the LD Pro is a unique "Main Frame Drive System" (MFD), which allows you to move the rear frame (sliding back) parallel to the focus ground (glass or film) plane from the center to 40mm above. This works as "additional" rise of the rear frame, but with using this you won't loose the focus since this movement is always parallel to the image plane. It also allows you to move the rear tilt axis and to stitch images vertically. Conventional rise/fall can only be used for vertical stitching when no tilt movement is applied, but with the MFD's focal plane rise, you can always stitch vertically. - Promotes Smooth Workflow
- The Horseman LD PRO enables the user to concentrate on framing, focusing and image capture by simply shifting the digital back. Since the slide portion is designed to allow shifting of the digital camera back with smooth movement, the workflow from framing, focusing and shooting becomes smoother than ever. Framing and focusing are done on a ground glass focusing screen. When the image composition has been made, the user flips the focusing glass up, shifts the mount portion (digital camera back) to the left and captures the image. Operations are simple, allowing the user to concentrate on image capture.
- Compatible with Various Digital Backs & Medium Format Lenses
- Horseman LD PRO features an interchangeable adapter plate system (camera mount system), which includes plates for Hasselblad "V", Hasselblad "H" and Mamiya 645. Also, the LD PRO has a four-way insert system for orientation of the back. Framing can be switched from vertical to horizontal framing or vice versa (portrait/landscape) without changing the camera position. Optional lens panels have built-in bayonet receivers for Hasselblad V, Mamiya 645, Mamiya RB/RZ, Pentax 645, and Pentax 67 lenses which will mount directly to the front of the LD.
- Broad Flange Focal Distance Range
- The Horseman LD PRO realizes a minimum flange back focal distance of 33mm through the employment of a 20mm concave panel, to accept 35mm-class digital lenses. In addition, with the Horseman LD PRO, 1:1 macro shots can be taken with a 180mm lens when the bellows are extended to the maximum limit.
- Wide Range of Bellows Adjustments
- Bellows adjustments are possible at the front and rear. Swing and center tilt can cover a full 360°* (at the image center). Maximum rise and fall are 30mm in either direction, and shift also comprises up to 30mm either way. By combining rise, fall and shift, images can be "stitched" together for novel effects. As bellows movements are performed by an ultra-precise rack-and-pinion drive, inaccuracies between successive pictures are held to an absolute minimum, making post-editing an easy task.
- Stitching in Vertical Direction Through MFD Mechanism
- The Horseman LD PRO also features an MFD (Main Frame Drive) mechanism to allow parallel movements of the main frame portion. Since focus plane rise does not affect the precisely focused position, vertical stitching becomes easier. The MFD mechanism permits parallel shifts within a range of 40mm.
- Horizontal Stitching
- The Horseman LD PRO also allows horizontal movement by 17mm either to the left or right on a slide back for horizontal stitching with ease.
- Tilt & Swing Axis Stays at Center of Image
- The image frame remains constant and stays in focus even when rear tilt or swing is applied. That is because the tilt and swing axes are designed to stay in the cameras image plane; a major time- and labor-saving feature for the professional.
- Variable Axis Tilt Possible
- There are times, however, when it is practical to be able to move the tilt axis; for example, when the point to be focused upon is not at the center of the object. In such cases, the tilt axis can be moved up or down the image plane with the help of an accurate adjustment scale.
- Adjust Focus without Changing Tilt Ratio
- Especially in close-up photography, you will find the possibility of re-focusing without using the bellows very attractive. The camera base is mounted on monorail on which it can be moved back and forth by a rack-and-pinion drive. Without moving the tripod, and without in any way changing the bellows extension, the entire camera can be slid along this monorail for re-focusing.* Limited by maximum bellows extension
In the Box Horseman LD Pro View Camera Camera Frame Bellows Slide Adapter for 14cm tzeuzxfxvwfrevfeabsrrevavqvr User Guide 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman LD Pro View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman LD Pro Specs | Tilts | 360° | | Swings | 360° | | Rise & Fall | 30mm + 30mm rack and pinion | | Shifts | 30mm + 30mm rack and pinion | | Camera Back | Sliding Back with Detachable camera plate | | Interchangeable Bellows | Yes | | Minimum Extension | 33mm (with 20mm recessed panel) | | Maximum Extension | 400mm | | Dimensions | 12.7 x 15.0 x 16.5" (325 x 380 x 420mm) | | Weight | 9.7 lbs (4.4kg) | | | | Package Weight | 12.7 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 6.2" |
