Horseman SW-612 Medium Format Panorama Camera

Search your instruction manual in PDF to download

User Manual for Horseman SW-612 Medium Format Panorama Camera Body

Click to enlarge the picture
Horseman SW-612 Medium Format Panorama Camera Body Contents of the user manual for the Horseman SW-612 Medium Format Panorama Camera
  • Product category: Medium Format Cameras Horseman
  • Brand: Horseman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Horseman Medium Format Cameras

User manual for the Horseman SW-612 Medium Format Panorama Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Horseman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!



Product description

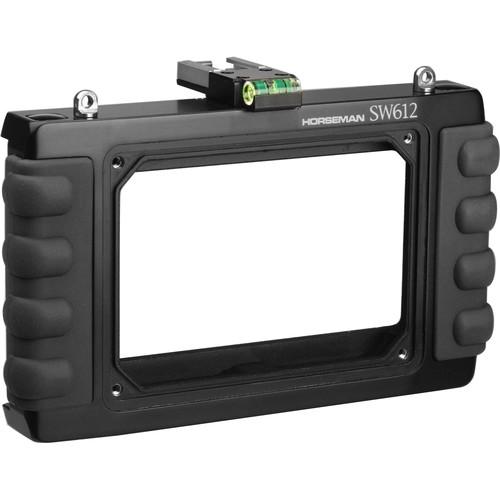

Horseman has designed a complete 6x12 system in their SW-612, pairing six exceptional Rodenstock lenses (ranging from 35mm to 135mm) with their own fine roll film backs (available in three formats) and an accurate, bright viewfinder.  The result is a supremely professional batteryless system camera, rugged and travellable with image quality that is enviable from even the best of digital cameras. The stout body is designed with rubber grips, two camera strap lugs and a built-in spirit level.  An optional lens guard mounts under the camera, while the finder with interchangeable masks mounts on the top-mounted "cold" accessory shoe.Horseman's 120 roll film holders mate perfectly to the back of the camera, offering a choice of 6x7, 6x9, or 6x12 cm formats and an optional ground glass back for precise composition.  Both the focusing scales and the spirit level are visible through the viewfinder. Other accessories include a neckstrap and center neutral density filter to even out the exposure with wide angle lenses.
  • Compact and lightweight; 1.57kg, for camera, finder, 6x12 holder and 45mm lens
  • 6x12cm, the format of the future
  • 120 degree angle of view; Equivalent focal length of 11.5mm in a 35mm format
  • Masks included with viewfinder for all 3 lenses
  • Optional groundglass back and lens guard
  • 3 interchangeable film backs
  • Practical for shooting handheld
In the Box Horseman SW-612 Medium Format Panorama Camera Body
  • 1-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Horseman SW-612 Medium Format Panorama Camera Body in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Horseman SW-612 Specs

    Type 6x12cm format (2-1/4 x 4-1/2") panoramic camera with interchangeable lenses, viewfinder and film backs
    Lens Mount Helicoid focusing mounted on special board Optional Lenses
  • Rodenstock Apo-Grandagon 35mm F4.5
  • Rodenstock Apo-Grandagon 45mm F4.5
  • Rodenstock Apo-Grandagon 55mm F4.5
  • Rodenstock Grandagon N 65mm F4.5
  • Rodenstock Grandagon N 90mm F6.8
  • Rodenstock Apo-Sironar-N 135mm F5.6
  • Film Advance Rollfilm holder film advance lever
    Viewfinder Optional 5-element covers a maximum viewing angle of 105 degrees with interchangeable finder masks matched to different focal lengths
    Shutter Mechanical leaf type in lens with speeds from 1 sec to 1/500 sec + B and T
    Film 120 rollfilm 6 exposures with 6x12 back, 8 exposures with 6x9 back and 10 exposures with 6x7 back
    Flash Sync X sync all speeds up to 1/500 sec
    Flash Via PC socket on lens
    Miscellaneous Built-on viewfinder
    Dimensions 6.5 x 4x 5.2" (164 x 103 x 133 mm) (WHD) Camera body, 6x12 film back and 45mm lens without finder. 6.5" (166 mm) height with viewfinder
    Weight 3.46lbs. (1.57kg) body, 6x12 back, 45mm lens and viewfinder
    Optional Accessories
  • #22463 SW Roll Film Holder 6x12
  • #22455 SW Roll Film Holder 6x9
  • #22456 SW Roll Film Holder 6x7
  • #21461 SW Ground Glass Back
  • #21462 SW Lens Guard
  • #21463 SW Professional Lens Guard
  • #21465 SW Professional Tripod Base
  • #21471 SW Neck Strap
  • #29225 Center Filter E67 +2.5
  • #29227 Center Filter E58 +1.5Finder Masks
    Standard
  • 35mm (#21514)
  • 45mm (#21515)
  • 55mm (#21516)
  • 65mm (#21517)
  • 75mm (#21518)
  • 90mm (#21519)
  • 135mm (#21520) Pre-Shifted Mask Set for 10mm Rise/Fall/Shift
  • 35mm (#21524)
  • 45mm (#21525)
  • 55mm (#21526)
  • 65mm (#21527)
  • 75mm (#21528)
  • 90mm (#21529)
  • Package Weight 1.18 lb
    Box Dimensions (LxWxH) 9.15 x 4.5 x 2.9"
