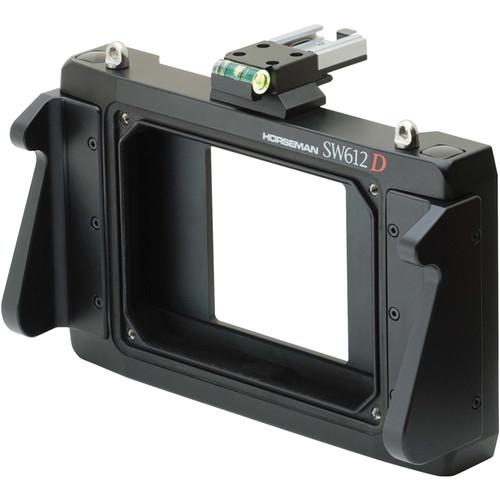

User Manual for Horseman SW612D Camera Body for Mamiya 645 Digital Backs Click to enlarge the picture
Contents of the user manual for the Horseman SW612D Camera Body for Mamiya
- Product category: Medium Format Cameras Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman Medium Format Cameras
|
User manual for the Horseman SW612D Camera Body for Mamiya contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|
Product description The Horseman SW612D Camera Body is the central component within a modular camera system designed for capturing wide-angle and panoramic photographs. This hybrid system is able to accommodate both digital backs and roll film holders, as well as a range of dedicated lens units.
This camera body is constructed from CNC-machined metal and features an ergonomic design to suit handheld shooting. An accessory shoe is incorporated into the design to permit the attachment of an optional optical viewfinder, and a spirit level is also integrated into the camera's design to ensure level horizons.
Included with the camera body is an SWD Adapter Plate for Mamiya 645-mount digital backs. - Designed as the base within a modular camera system, this camera body is built to accept both optional digital backs as well as 6 x 7 or 6 x 12-format roll film holders. An adapter plate for Mamiya 645-mount digital backs is included with the camera and an optional adapter plate for Hasselblad V-mount digital backs is also available. When mounting roll film holders, the optional SWD Spacer for Roll Film Holder is required to achieve the proper flange focal distance.
- Compatible with an array of optional dedicated SW and SW-D lens units, this system is especially well-suited to wide-angle and panoramic photography.
- The rugged CNC-machined metal camera body features an ergonomic design to enable handheld shooting.
- A built-in accessory shoe accommodates an optional optical viewfinder, along with lens-dedicated finder masks, and also incorporates a spirit level into its design to aid in achieving level horizons.
- Dedicated lens units incorporate helical focusing mechanisms and feature a printed distance scale for setting focus. Alternatively, an optional ground glass back is available for through-the-lens focusing.
In the Box Horseman SW612D Camera Body for Mamiya 645 Digital Backs SWD Adapter Plate for Mamiya 645 Digital Backs waqwwbycewtaewcq Limited 1-Year Warranty Spec sheet PDF 7.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman SW612D Camera Body for Mamiya 645 Digital Backs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman SW612D Specs | Focusing | By focus ring on optional SW or SW-D lens unit (TTL focusing possible with optional ground glass back) | | Format | Digital Back: Accepts optional Mamiya 645-mount digital backs with included adapter plate; various formats
Film Back: Accepts optional SW Roll Film Holder for 6 x 7 cm or 6 x 12 cm formats (requires optional SWD Spacer for Roll Film Holder) | | Dimensions | 7.2 x 6.7 x 2.8" / 182 x 170 x 70 mm (body only, except grips and accessory shoe) | | Weight | 2.4 lb / 1.1 kg |
