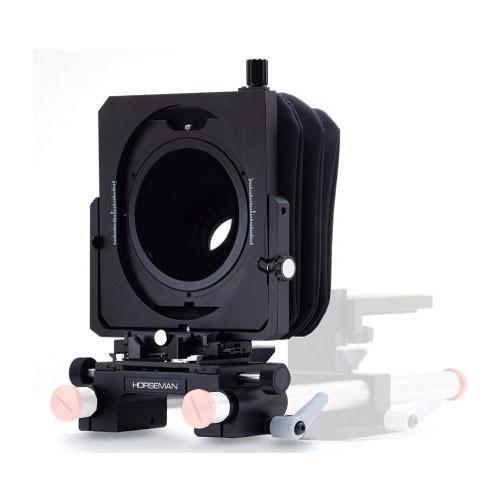

User Manual for Horseman TS-Pro Tilt Shift Front Unit Without Lens Click to enlarge the picture
Contents of the user manual for the Horseman TS-Pro Tilt Shift Front Unit
- Product category: View Camera Bodies Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman View Camera Bodies
|
User manual for the Horseman TS-Pro Tilt Shift Front Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|
Product description This TS-Pro Tilt/Shift Front Unit Without Lens is a part of the Horseman TS-Pro Tilt/Shift Kit, which delivers a way for cinematographers to control depth-of-field and perspective distortion for creative effects that were previously available only for still photographers. By using lens tilt and shift, and horizontal and vertical movements, the DP is able to exaggerate perspective distortions, focus selectively on a tiny part of the image while allowing the rest to be out of focus, and create miniaturization effects. The full unit consists of a base and a front unit. This is the front unit which holds the lens (not included).
The TS-Pro has a lens mount placed between the camera and the lens. Camera mounts are interchangeable. One TS-Pro unit can be used on various cameras by using different interchangeable camera mounts suitable for particular camera bodies. It supports a variety of lenses for 35 mm DSLRs, medium format cameras and M39-mount lenses. When used in combination with a still camera lens with a large image circle, it enables the cameraman to utilize tilt/shift techniques that were never before possible in video applications. A lens used for tilt/shift movements must have an image circle that covers the camera's image sensor size. The TS-Pro base unit is required for operation of the TS-Pro. One of four optional available camera mounts (PL Mount; Micro Four Thirds Mount; Canon EOS Mount; or Nikon F Mount) is required to operate this unit. One of six optional available lens mounts (Pentax 645; Mamiya 645; Hasselblad; M39 (For Rodagon); Canon EOS; or Nikon F) is required. - Tilt and shift effects for video cameras
- Creative shallow depth-of-field effects
- Increase magnification ratio of lenses
- 4 types of camera mounts: PL Mount; Micro Four Thirds Mount; Canon EOS Mount; or Nikon F Mount
- Use one of six available lens mounts: Pentax 645; Mamiya 645; Hasselblad; M39 (For Rodagon); Canon EOS; or Nikon F
- Base, Camera Mount and Lens Mount are also required to operate the TS-Pro Tilt/Shift unit.
In the Box Horseman TS-Pro Tilt/Shift Front Unit Without Lens Front Unit 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman TS-Pro Tilt Shift Front Unit Without Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman TS-Pro Specs | Type | Auxiliary equipment allowing swing, tilt and shift movements when attached to the lens mount of a camera. | | Camera Movements (Front Standard) | [Tilt] : 15°forwards/15°backwards, 15°each(L/R)
[Shift] : 30mm each(L/R)/15mm each(Rise/Fall) | | Track Extension | 35mm | | Lens Mount | Exchangeable | | Tripod Socket | 1/4" | | Dimensions | 8.66 x 6.69 x 2.36" (220 x 170 x 60 cm) | | Weight | Front Unit: 2.64 lb (1.2 kg) |
