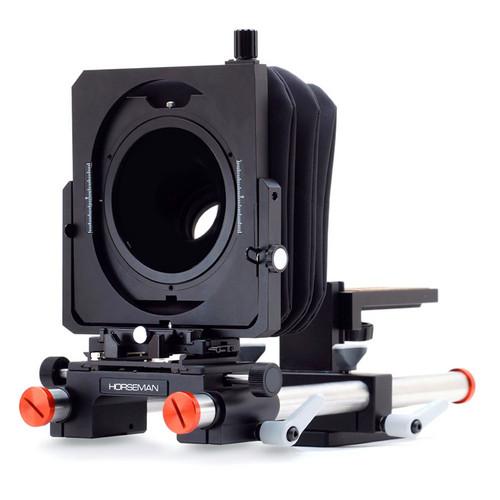

User Manual for Horseman TS-Pro Tilt Shift Kit Without Lens Click to enlarge the picture
Contents of the user manual for the Horseman TS-Pro Tilt Shift Kit Without
- Product category: View Camera Bodies Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman View Camera Bodies
|
User manual for the Horseman TS-Pro Tilt Shift Kit Without contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|

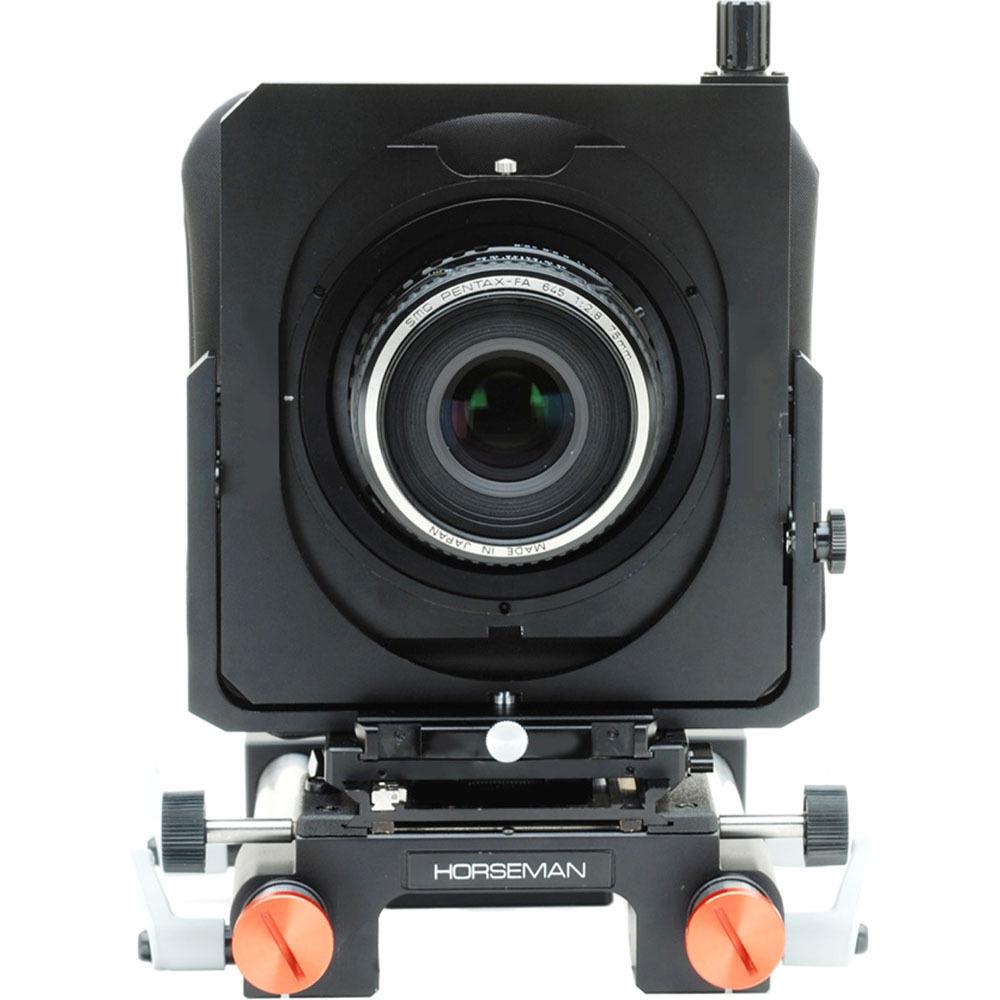

Product description The Horseman TS-Pro Tilt/Shift Kit Without Lens delivers a way for cinematographers to control depth-of-field and perspective distortion for creative effects that were previously available only for still photographers. By using lens tilt and shift, and horizontal and vertical movements, the DP is able to exaggerate perspective distortions, focus selectively on a tiny part of the image while allowing the rest to be out of focus, and create miniaturization effects.

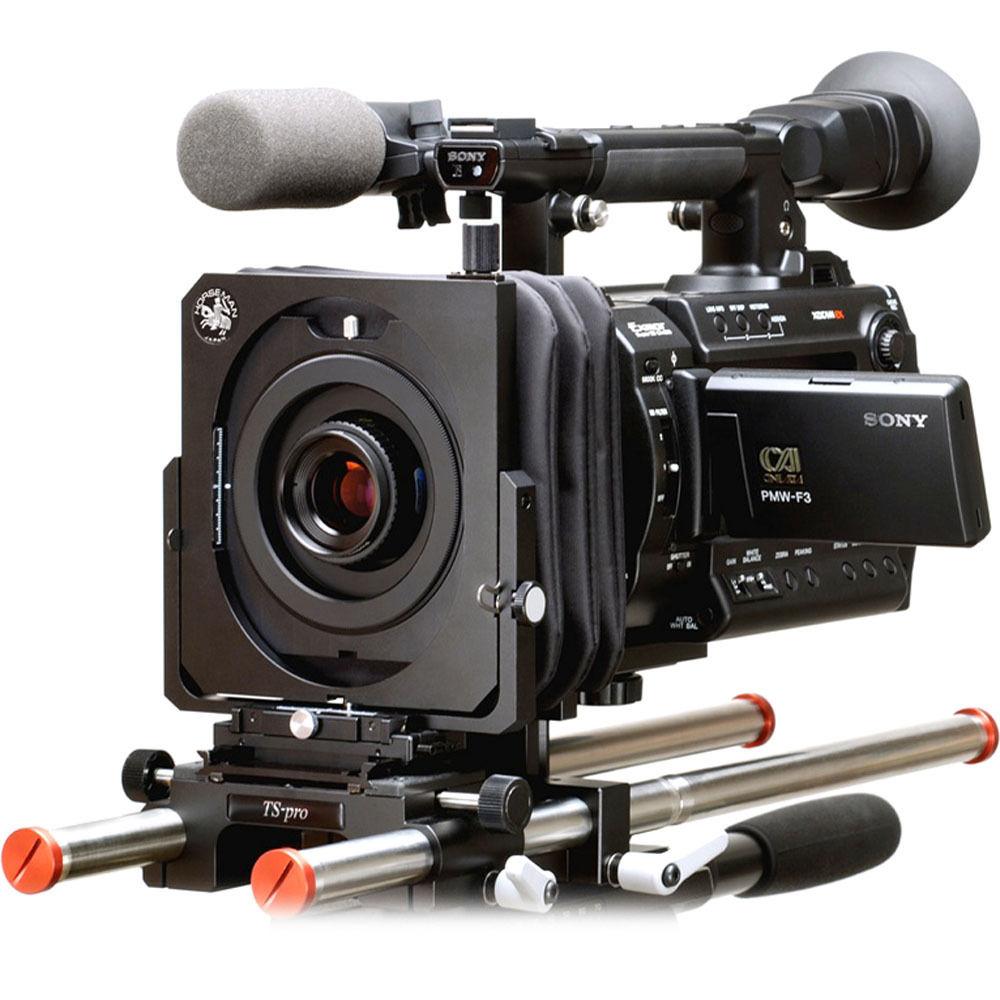

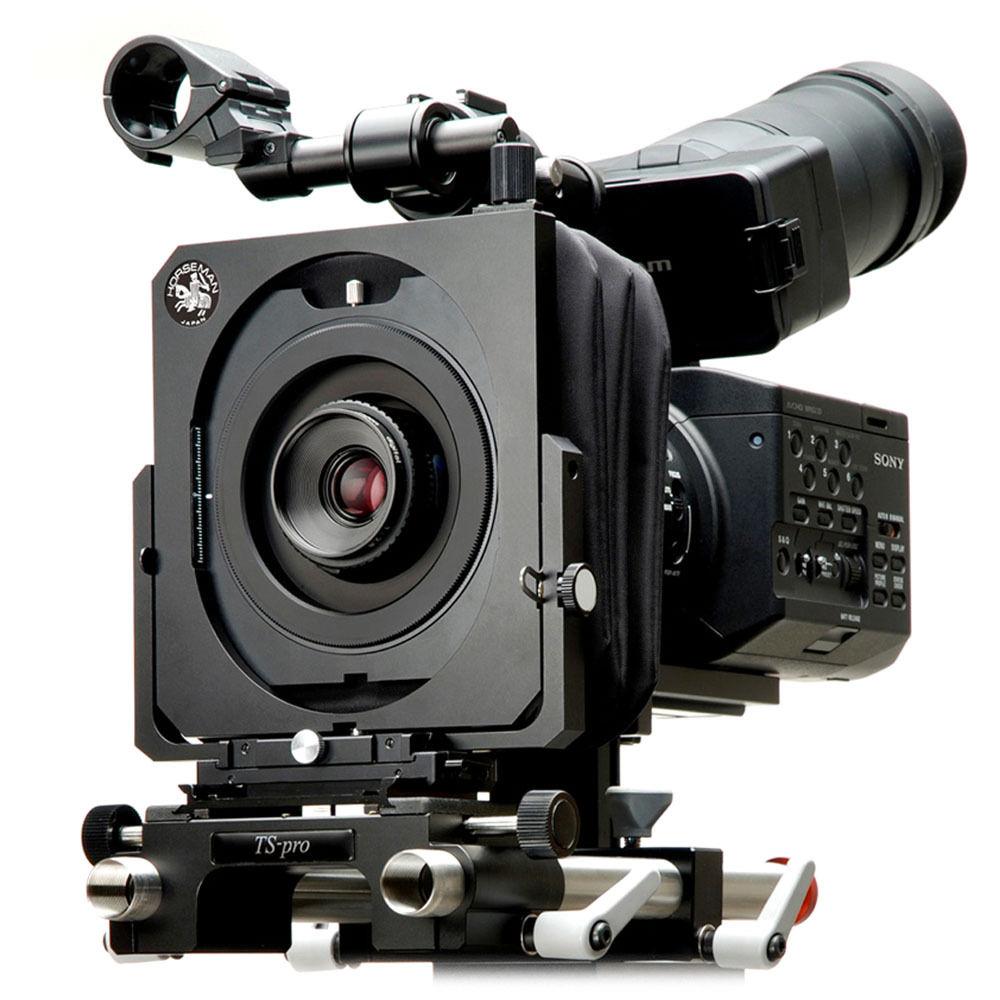

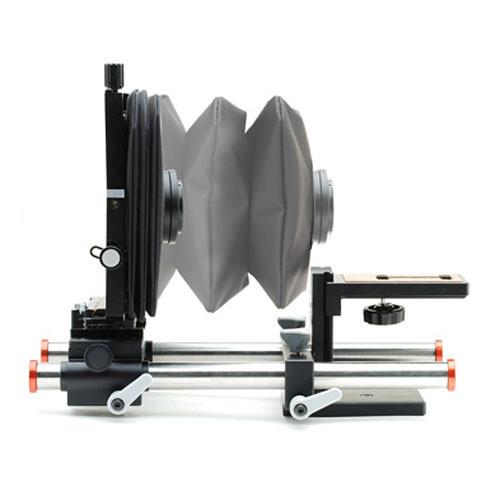

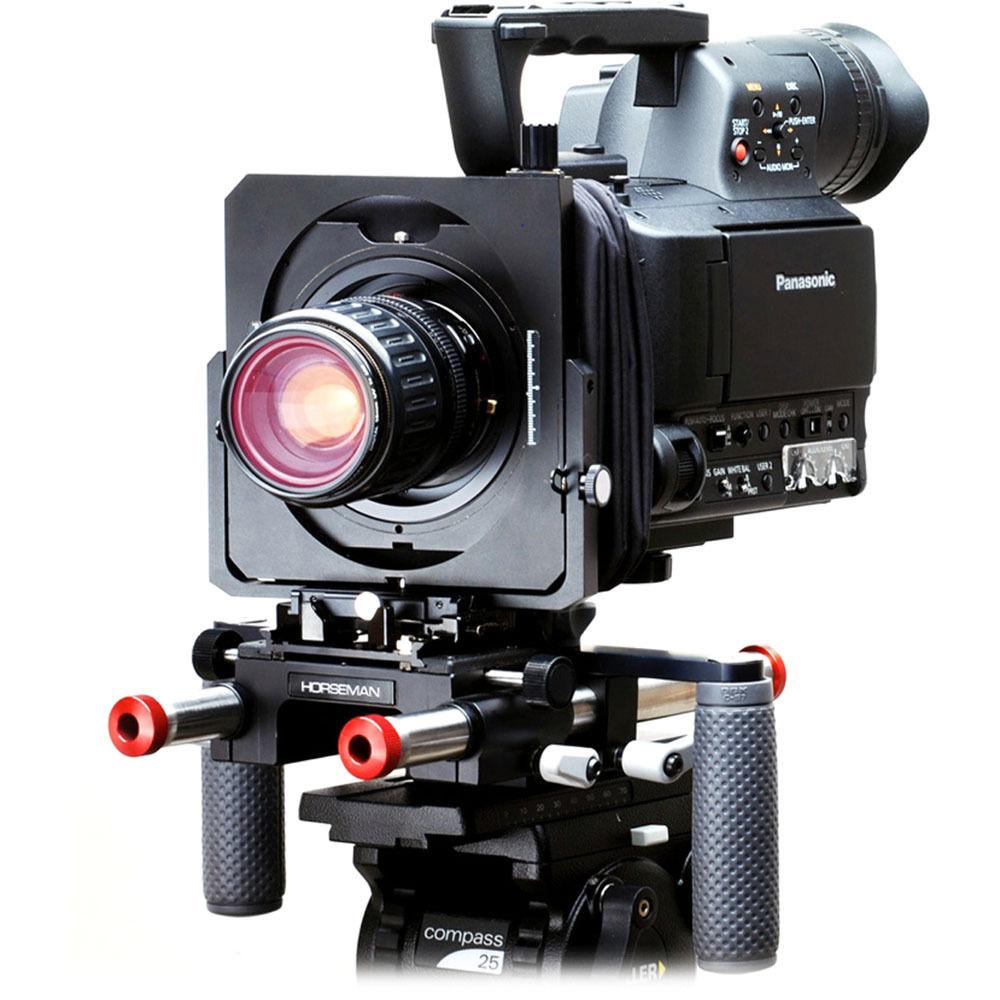

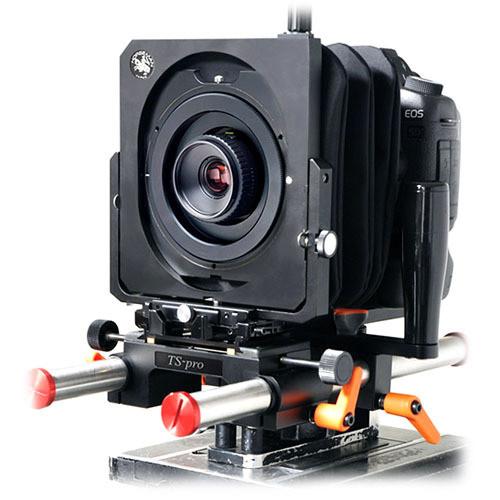

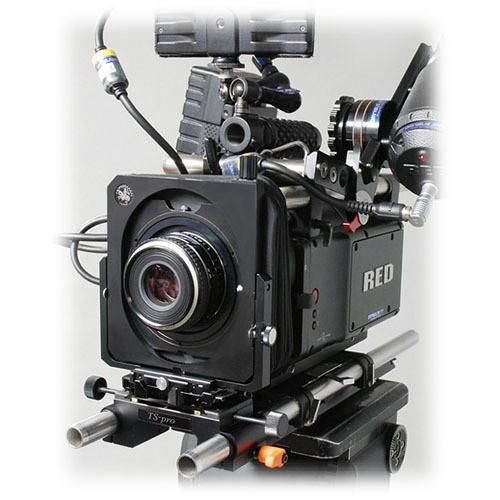

The TS-Pro works by putting a flexible bellows between the lens and the camera body (lens and camera not included). The camera remains stationary while the lens is titled up/down/left/right or shifted off-axis up/down/left/right. The bellows also allows the lens to move away from the camera, increasing the magnification ratio and creating a macro effect. These compelling and eye-catching effects have been the exclusive domain of still photographers for years--now, these same looks can be achieved with digital cinema cameras.
The TS-Pro has a lens mount placed between the camera and the lens. Camera mounts are interchangeable. One TS-Pro unit can be used on various cameras by using different interchangeable camera mounts suitable for particular camera bodies. It supports a variety of lenses for 35 mm DSLRs, medium format cameras and M39-mount lenses. When used in combination with a still camera lens with a large image circle, it enables the cameraman to utilize tilt/shift techniques that were never before possible in video applications. A lens used for tilt/shift movements must have an image circle that covers the camera's image sensor size. One of four optional available camera mounts (PL Mount; Micro Four Thirds Mount; Canon EOS Mount; or Nikon F Mount) is required to operate this unit. One of six optional available lens mounts (Pentax 645; Mamiya 645; Hasselblad; M39 (For Rodagon); Canon EOS; or Nikon F) is required. - Tilt and shift effects for video cameras
- Creative shallow depth-of-field effects
- Increase magnification ratio of lenses
- 4 types of camera mounts: PL Mount; Micro Four Thirds Mount; Canon EOS Mount; or Nikon F Mount
- Use one of six available lens mounts: Pentax 645; Mamiya 645; Hasselblad; M39 (For Rodagon); Canon EOS; or Nikon F

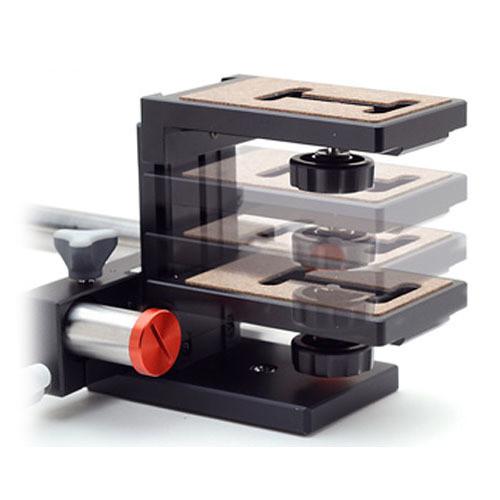

In the Box Horseman TS-Pro Tilt/Shift Kit Without Lens Front Unit Base Unit 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman TS-Pro Tilt Shift Kit Without Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman TS-Pro Specs Type | Auxiliary equipment allowing swing, tilt and shift movements when attached to the lens mount of a camera. | Camera Movements (Front Standard) | [Tilt] : 15°forwards / 15°backwards, 15°each(L/R) [Shift] : 30mm each(L/R) / 15mm each(Rise/Fall) | Track Extension | 35mm | Camera Mount | Exchangeable | Lens Mount | Exchangeable | Tripod Socket | 1/4" | Dimensions | Front Unit: 8.66 x 6.69 x 2.36" (220 x 170 x 60 cm) Base Unit: 5.9 x 6.69 x 5.51" (15 x 17 x 14 cm) Diameter of Rail: 0.74" (19 mm) Length: 8.85" (225 mm) (An extra pair of rail is included) | Weight | Front Unit: 2.64 lb (1.2 kg) Base Unit: 2.42 lb (1.1 kg) | | Package Weight | 7.05 lb | Box Dimensions (LxWxH) | 11.4 x 8.2 x 5.0" |
