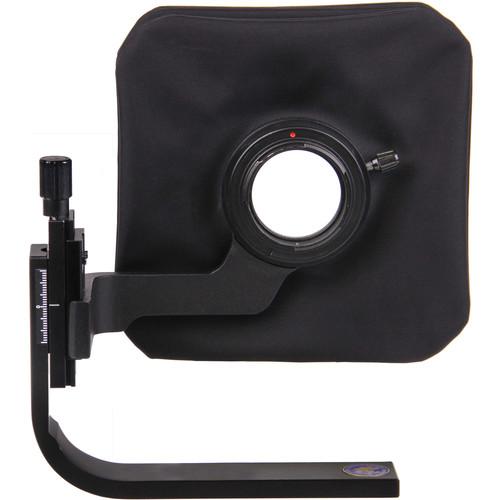

User Manual for Horseman VCC PRO View Camera Converter for Sony E Click to enlarge the picture
Contents of the user manual for the Horseman VCC PRO View Camera Converter
- Product category: View Camera Bodies Horseman
- Brand: Horseman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horseman View Camera Bodies
|
User manual for the Horseman VCC PRO View Camera Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horseman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horseman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horseman product will considerably shorten its lifespan!
|
Product description The Horseman VCC PRO View Camera Converter enables a full range of camera movements to be utilized when photographing with a Sony E-mount mirrorless camera, allowing you to control perspective distortions and achieve unique depth of field effects. As the central component within a modular system, the VCC PRO includes the dedicated camera adapter as well as an M39 lens panel, and also supports the use of a wide array of large and medium format lenses via additional lens panels. The VCC PRO's relatively compact, lightweight form factor and ability to accept a wide variety of lenses makes it ideally suited to use on location, as well as in the studio.
Once the Sony E-mount mirrorless camera is attached to the VCC PRO body, it can be switched between horizontal and vertical shooting orientations by simply turning a knob, rather than re-orienting the entire camera. The rear standard also incorporates a spindle drive that permits 30mm of vertical movement and 40mm of lateral movement for seamless stitching of multiple frames, with the ability to lock the camera in place for greater precision. The use of a bellows for focusing also better enables making close-up imagery without the need of extension tubes or an additional bellows. - Camera Movements
- For precise perspective and focusing control, both front and rear standard movements can be used.
Front Standard:
- Tilt: 15° forward / 10° backward
- Swing: +/- 15°
- Shift: +/- 1.2" / 30mm
Rear Standard:
- Rise/Fall: +/- 0.6" / 15mm
- Shift: +/- 0.8" / 20mm
- Rear Standard Features
- An integrated spindle drive on the rear standard permits seamless stitching of multiple frames in order to accomplish panoramic-type imagery. This rear drive allows fluid movement of the mounted back with secure locking at each position for greater accuracy.
- Modular System
- This view camera converter is the central component within the VCC system, and allows you to pair a Sony E-mount mirrorless camera along with large or medium format lenses.
In the Box Horseman VCC PRO View Camera Converter for Sony E VCC PRO Camera Adapter for Sony E VCC PRO Lens Panel for M39 Lenses Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horseman VCC PRO View Camera Converter for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorseman VCC-PRO DB Specs | Camera Type | View camera converter for digital cameras | | Camera Mount | Sony E | | Track Extension | 0.9-2.8" / 23-72 mm | | Focus Adjustment | Focusing knobs on both sides of rail | | Tripod Mount | 1/4" | | Dimensions | 9.1 x 6.7 x 6.3" / 23 x 17 x 16 cm | | Weight | Body: 24 oz / 680 g
Included camera adapter: Not specified by manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
