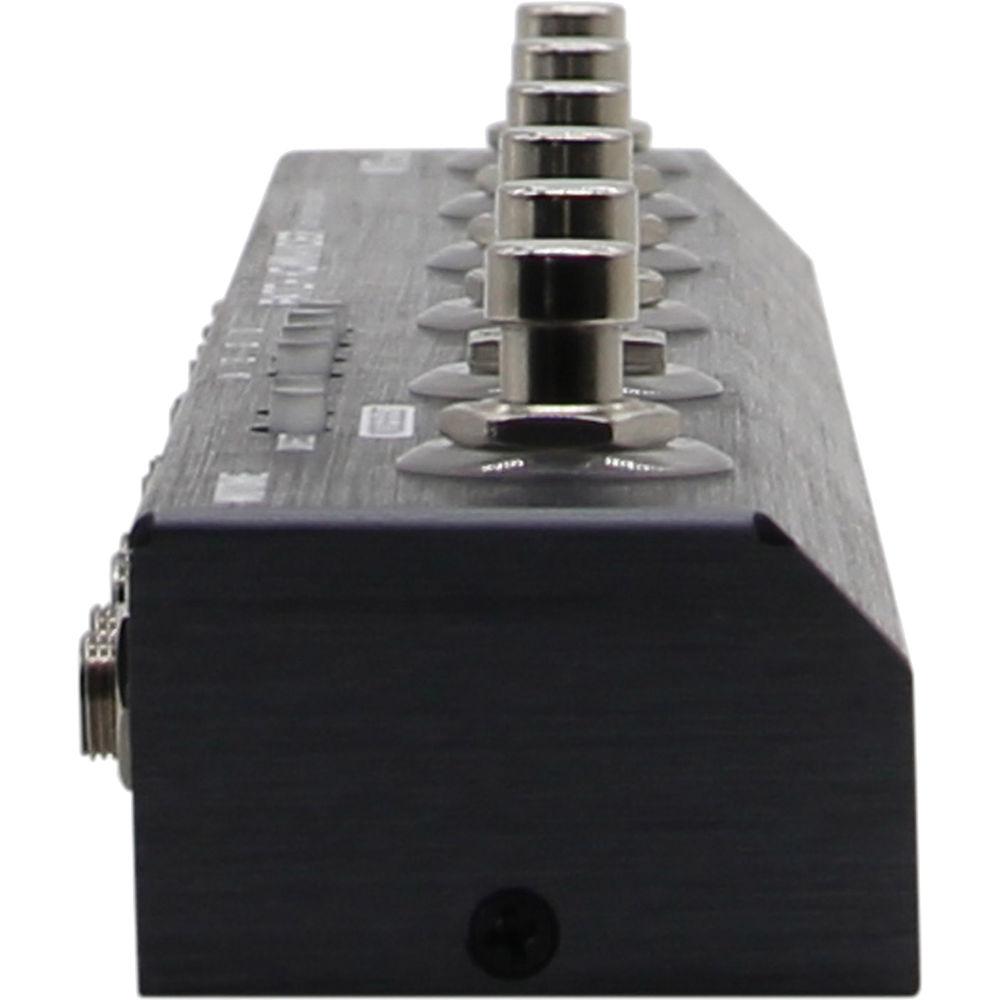

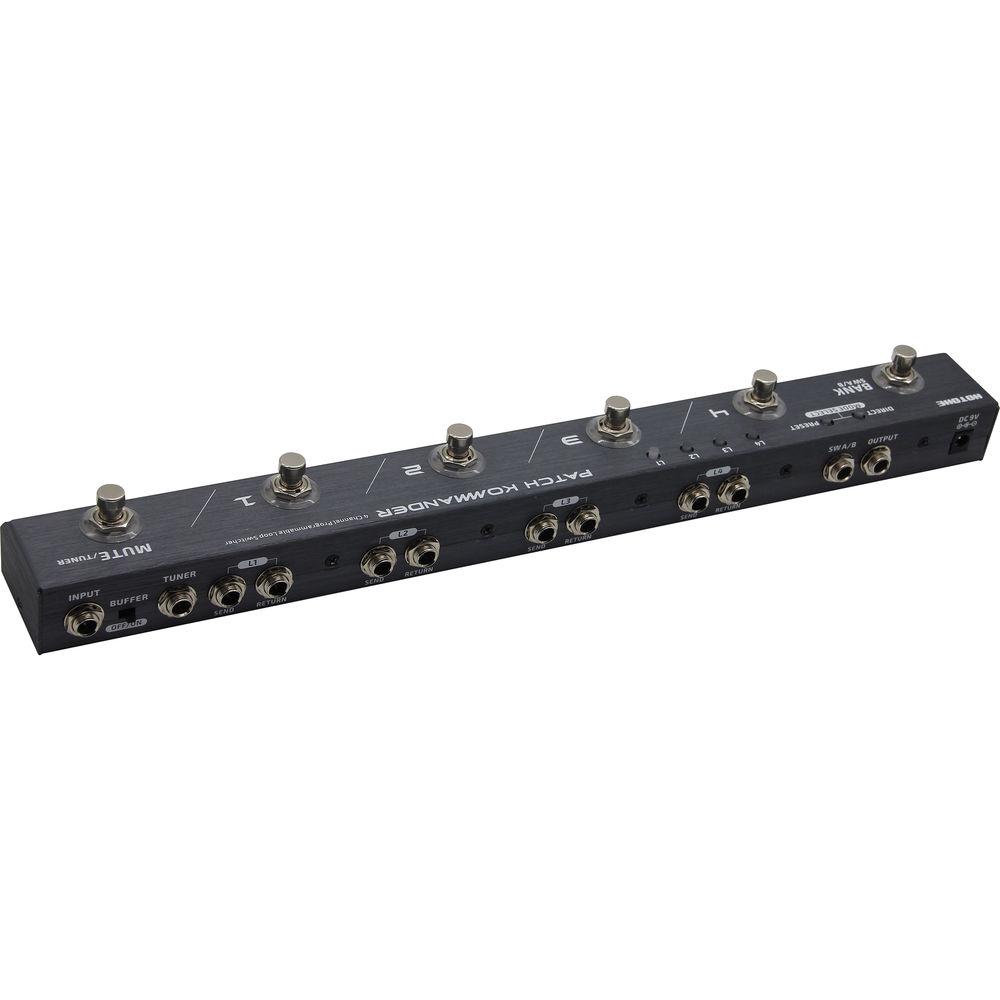

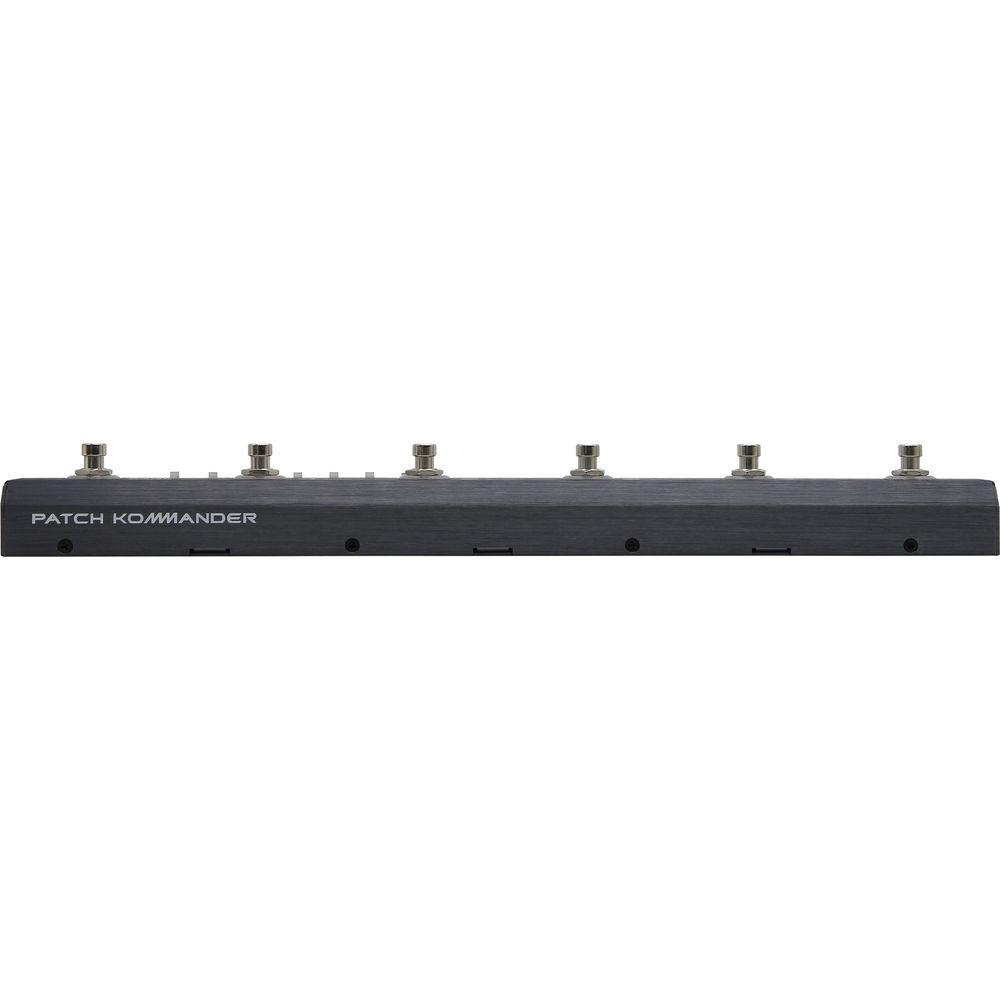

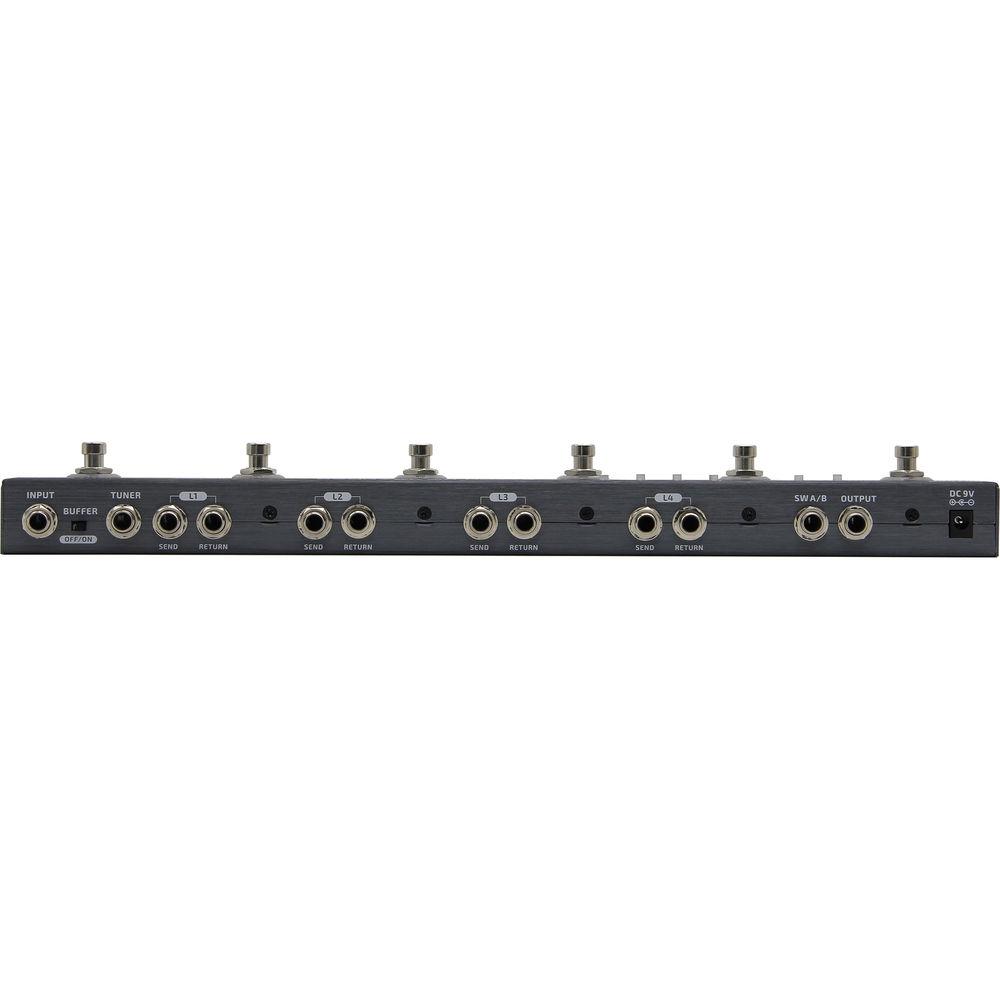

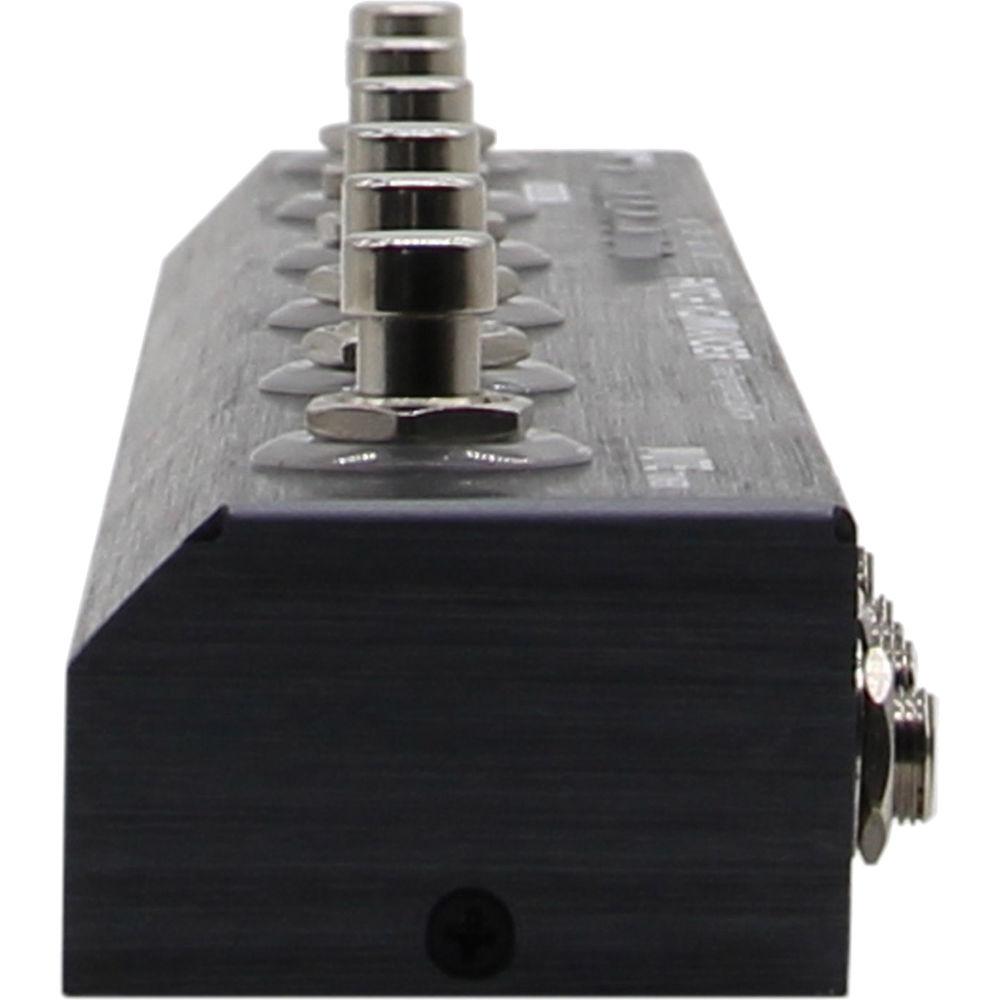

User Manual for Hotone Patch Kommander 4-Channel Loop Switcher for Electric Guitars Click to enlarge the picture
Contents of the user manual for the Hotone Patch Kommander 4-Channel Loop Switcher
- Product category: Effects Pedal Accessories Hotone
- Brand: Hotone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotone Effects Pedal Accessories
 |
User manual for the Hotone Patch Kommander 4-Channel Loop Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotone product will considerably shorten its lifespan!
|
Product description The Hotone Patch Kommander is a loop switcher sporting four true-bypass loops and six programmable footswitches. These six switches can be used to switch individual effects loops on or off; though, they can also be configured to select among three banks with four preset effects patches apiece. As such, this pedal will let you engage up to four effects loops at any time and switch among pedal combinations with a click.The Patch Kommander boasts two modes of operation: direct and preset. A dedicated tuner output can route dry sound to your tuner, so it's not in your pedal chain. You’ll also note the TRS SW A/B output, which can be routed to compatible amplifiers in order to control channel switching.This switcher is encased in aluminum and provides a quiet operation on stage. If you prefer buffered-bypass operation to true bypass, you can change bypass modes with a flick of a switch. A 9 VDC power supply is included with the pedal. - Key Features at a Glance
-
- Solid aluminum casing
- 4 independent relay-based true-bypass audio loops
- Switchable high-quality input buffer for preventing high-frequency loss
- Mute/tuner function with independent tuner output
- SW A/B function for amp-channel switching
- 2 switching modes: Direct mode and Preset mode with 12 programmable combinations
- Low switching noise
- 9 VDC power supply included
UPC: 888506080029 In the Box Hotone Patch Kommander 4-Channel Loop Switcher for Electric Guitars Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotone Patch Kommander 4-Channel Loop Switcher for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotone TPLS10 Specs | Footswitches | 6x | | Loops | 4x, isolated | | Bypass | Relay true bypass or analog buffer bypass, switchable | | Input Impedance | 1 MOhm (buffer bypass) | | Output Impedance | 100 Ohms (buffer bypass) | | Power Requirement | 9 VDC, power supply supplied | | Current Consumption | 150 mA | | Dimensions (D x W x H) | 15.9 x 2.2 x 1.9" / 403.0 x 56.0 x 48.0 mm | | Weight | 18.9 oz / 535.0 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 3.0" |
