Product description If you're a fan of Hotone's guitar-pedal modeling, but seek a more compact and pedalboard-friendly unit, then rock on with the XTOMP mini. This pedal utilizes an Android and iOS compatible app—as well as Bluetooth LE connectivity—to port over 110 classic, vintage, and modern pedal tones from the digital realm, putting them underneath your analog foot. Hotone uses Comprehensive Dynamic Circuit Modeling technology (CDCM) to implement dynamic signal variation when constructing their emulative algorithms, thereby achieving a tonal response authentically dependent on your dynamics at any given time.

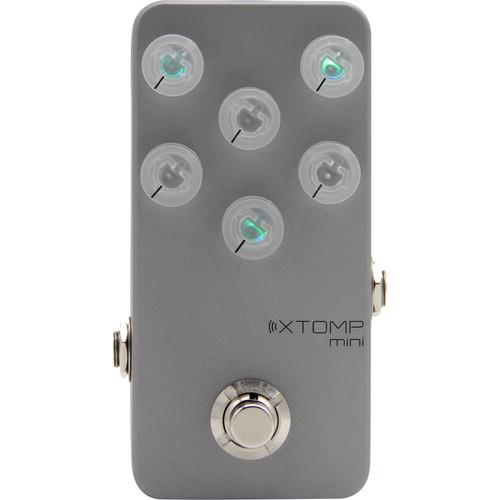

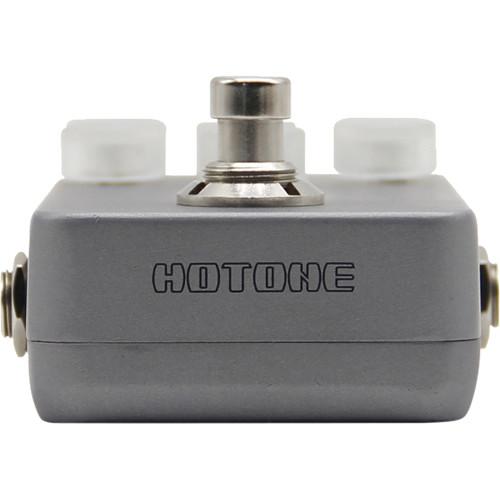

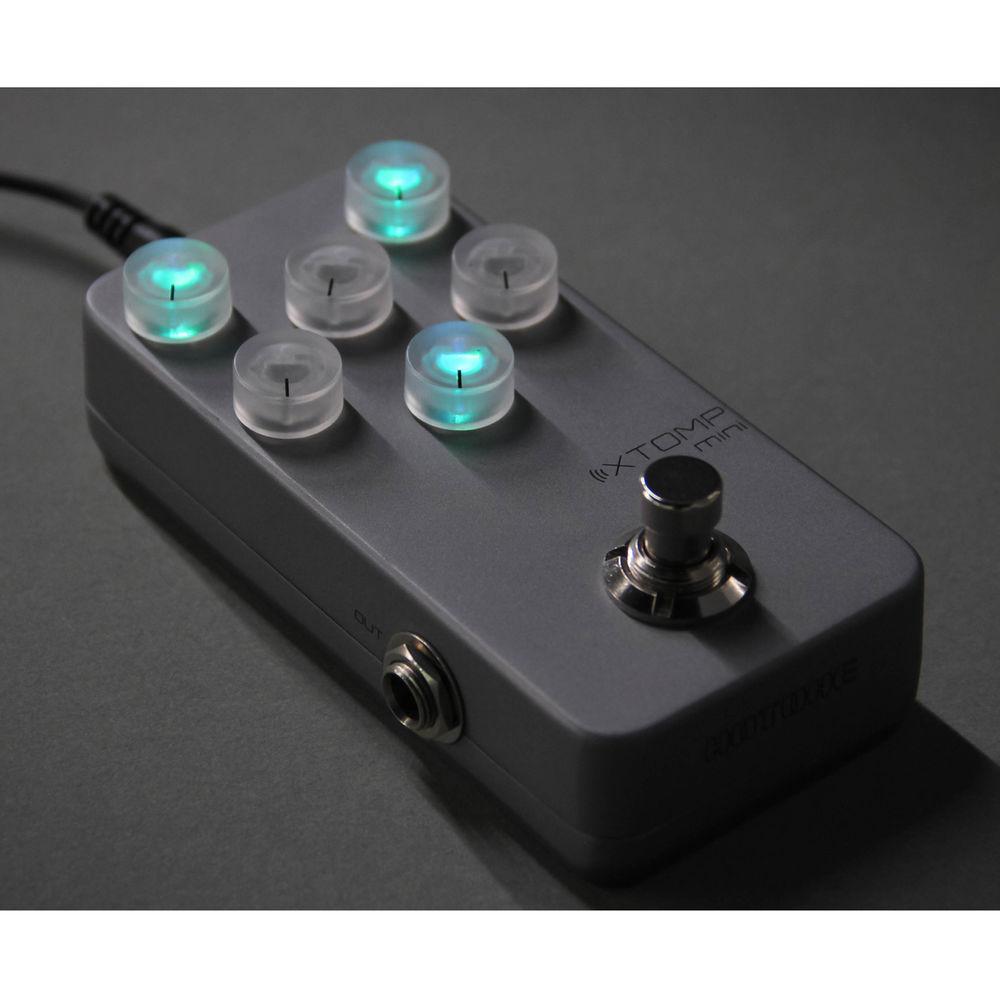

The pedal itself measures 2.5 x 4.4 x 1.7", making it more compact than its sibling. It's encased in a thin zinc-alloy casing and has six knobs surrounded by multicolored LEDs. The functionality of these knobs changes depending on the algorithms you've loaded into the pedal. Whichever effect you've chosen, the XTOMP mini's corresponding parameters will be displayed within the included XTOMP app. In this manner, the app illustrates how the effect is mapped out on the stompbox.
As this is the junior sibling of the original XTOMP, certain features are not available in this unit, such as stereo I/O, true bypassing (this pedal gives you buffered bypass only), and various custom algorithms. However, what you lose in features you make up for in convenience, a smaller footprint, and an included power supply. - Key Features at a Glance
-
- Provides select components and technologies of XTOMP in a more compact housing
- TI C67 series DSP onboard
- 24-bit A/D/A conversion
- Buffered bypass
- CDCM modeling system
- Growing effects library with monthly updates
- Over 30 CDCM-powered amp/cab emulations
- Over 50 CDCM-powered pedal emulations
- Over 30 original Hotone effects (including drive, filters, delays, modulations, reverbs, and more)
- Free iOS, Android, and PC apps for loading/managing effects over Bluetooth

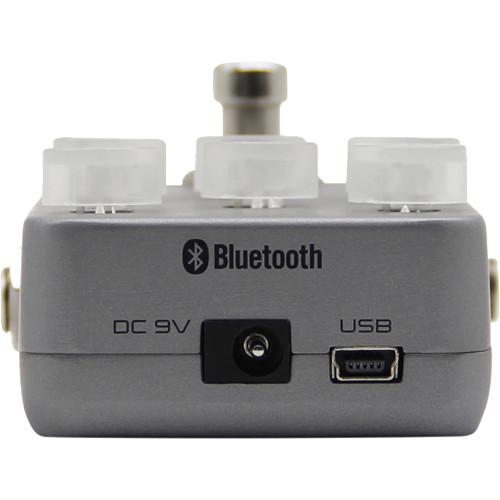

- USB jack for firmware upgrading or loading/managing effects with PC app
- 6 transparent knobs with LEDs
- Solid aluminum-alloy casing
- 9 VDC power supply
UPC: 888506070020 In the Box Hotone XTOMP mini Multi-Effects Pedal with Bluetooth Connectivity and XTOMP App 9 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotone XTOMP mini Multi-Effects Pedal with Bluetooth Connectivity and XTOMP App in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

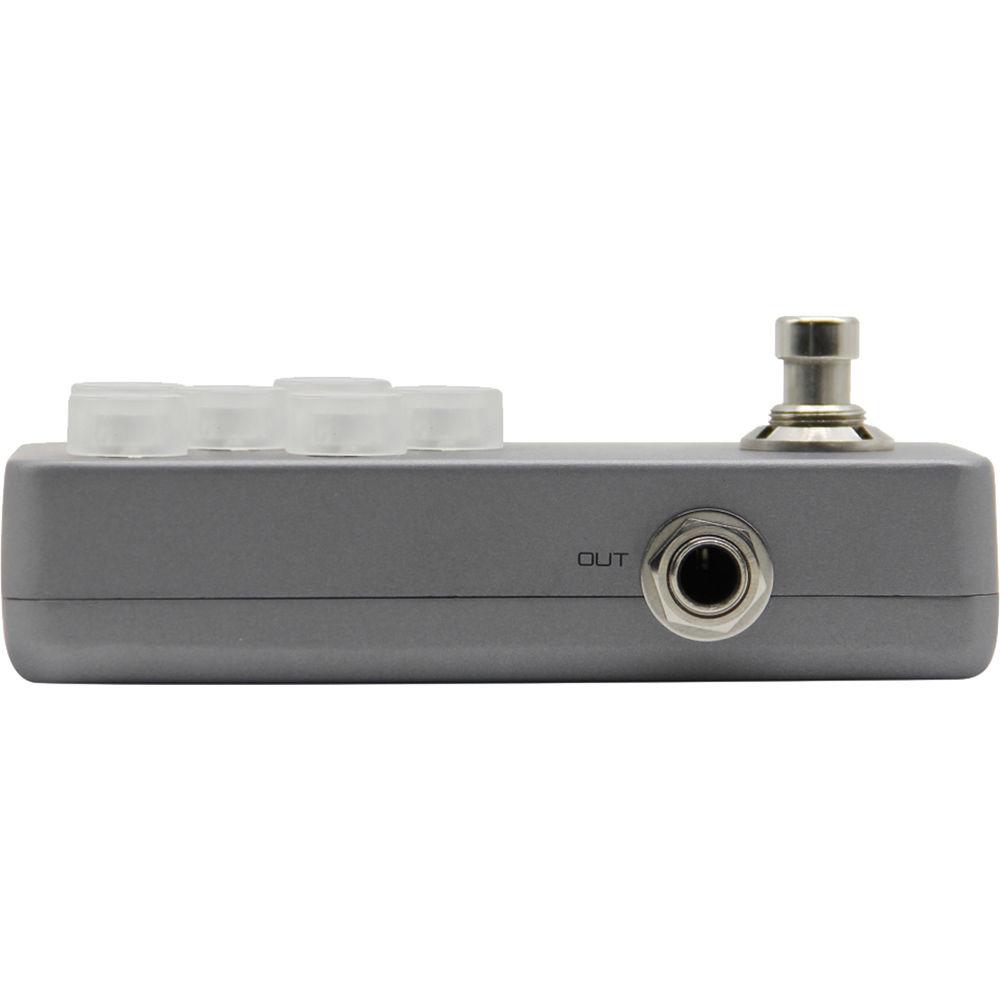

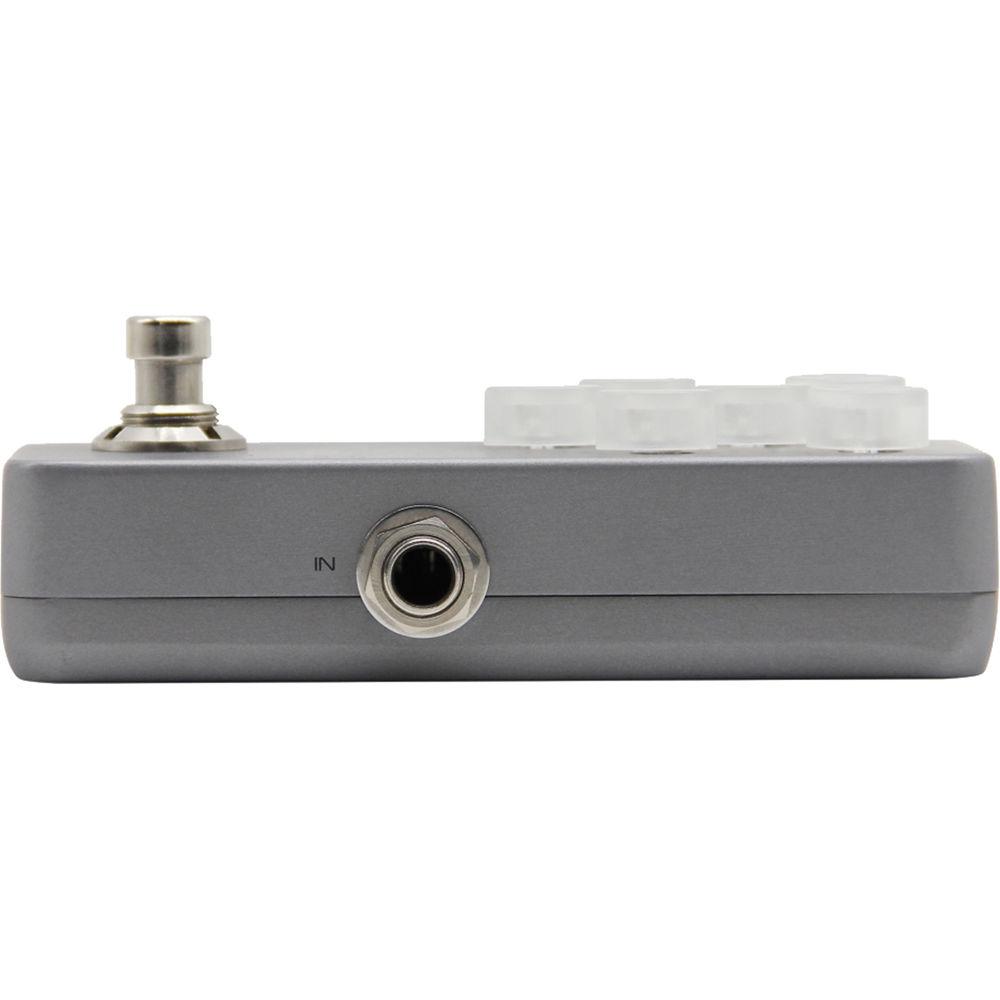

Technical parametersHotone TPMXTOMPM Specs | Controls | 6 knobs, 1 on/off footswitch | | Audio Connections | 1 x 1/4" input
1 x 1/4" output | | USB | 1 x USB jack for firmware upgrading, loading/managing effects with PC apps, and more | | Bypass | Buffered bypass switching | | Impedance | Input: 470 kOhms
Output: 100 Ohms | | Audio Frequency Response | 20 Hz to 20 kHz, approximate | | Signal to Noise Ratio | 105 dB | | Power Requirements | 9 VDC, center negative | | Power Supply | Available separately | | Current Consumption | 250 mA maximum | | Dimensions (D x W x H) | 2.5 x 4.4 x 1.7" / 62.5 x 113.0 x 43.0 mm | | Weight | 7.1 oz / 200.0 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.8 x 3.2 x 1.7" |
