Product description - Quick Listen: Hotone XTOMP Multi-Effects Pedal with Bluetooth Connectivity
Designed to house the sounds of modeled stompboxes and effects in one relatively compact unit, the XTOMP by Hotone utilizes an Android and iOS compatible app—as well as Bluetooth LE connectivity—to instantiate over 300 classic, vintage, and modern pedal tones, making them accessible and available to guitarists, bassists, and other instrumentalists seeking a wide range of versatile timbres within a comparatively small footprint. Hotone uses Comprehensive Dynamic Circuit Modeling technology (CDCM) to utilize dynamic signal variation when constructing their algorithms of emulation, thereby achieving a tonal response authentically dependent on your dynamics at any given time.

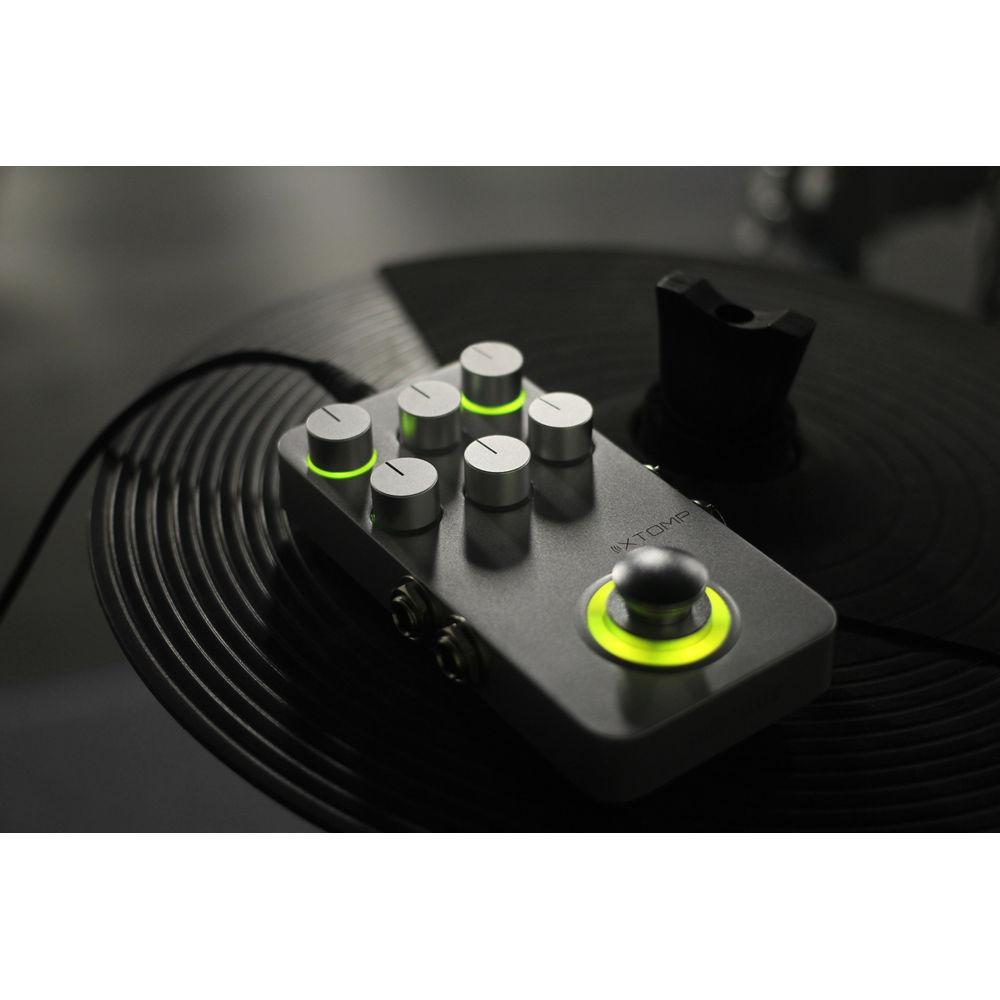

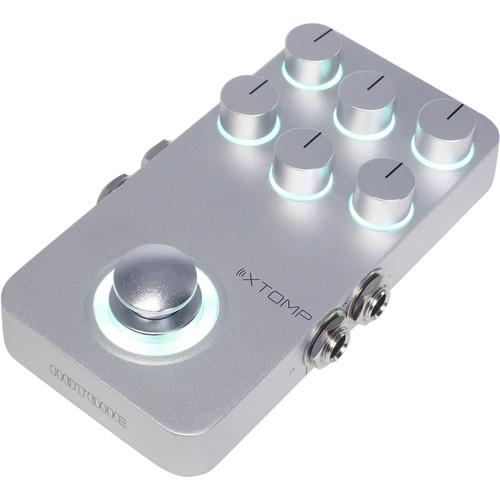

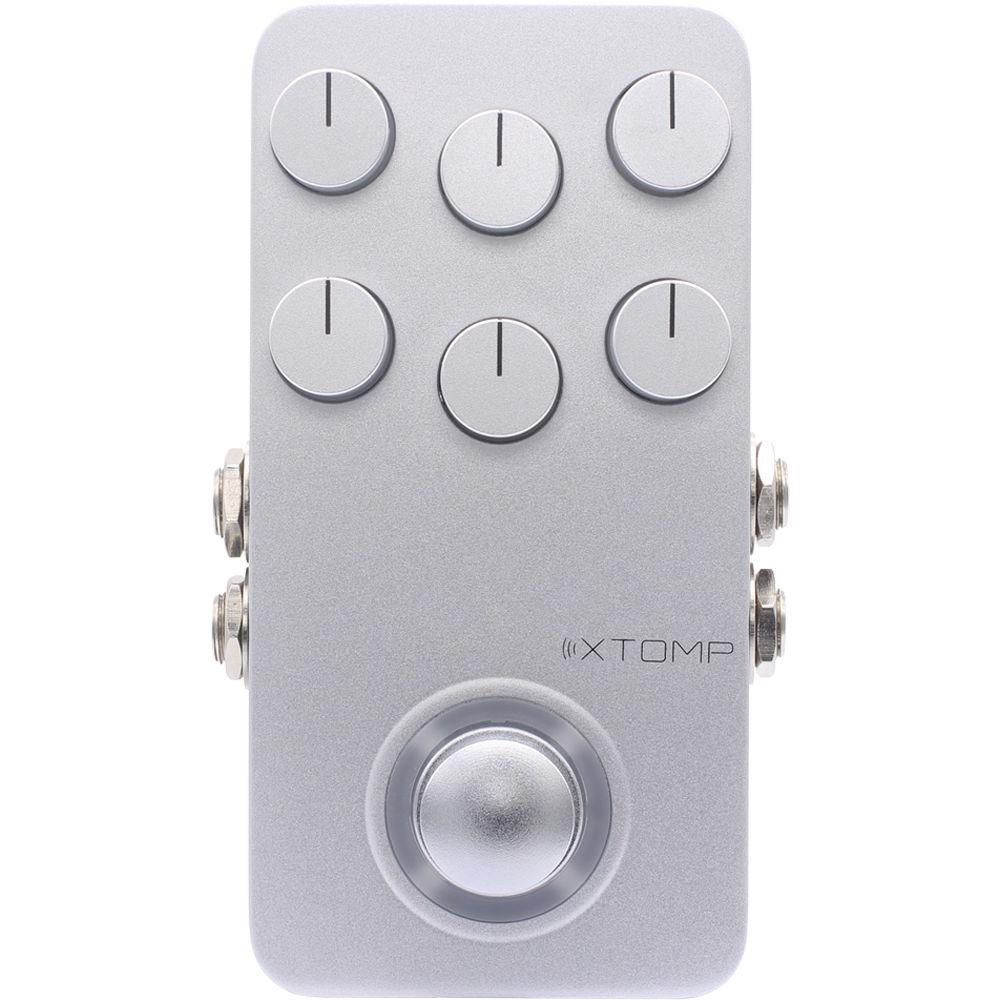

The pedal itself features a thin zinc-alloy casing replete with knobs surrounded by multicolored LEDs. The functionality of these knobs changes depending on the algorithms you've loaded into the pedal, and whatever effect you've chosen, its corresponding parameters will be displayed within the included XTOMP app. In this manner, the app illustrates how the effect is mapped out on the stompbox.

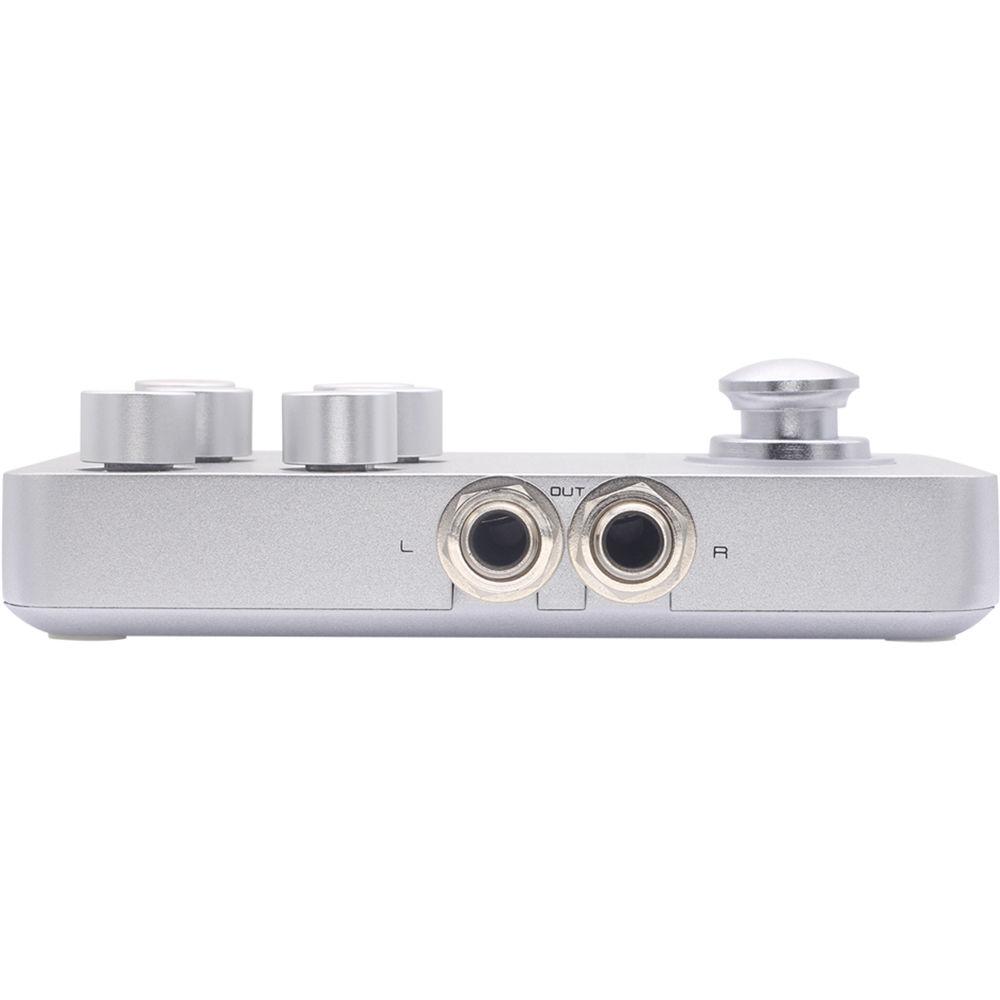

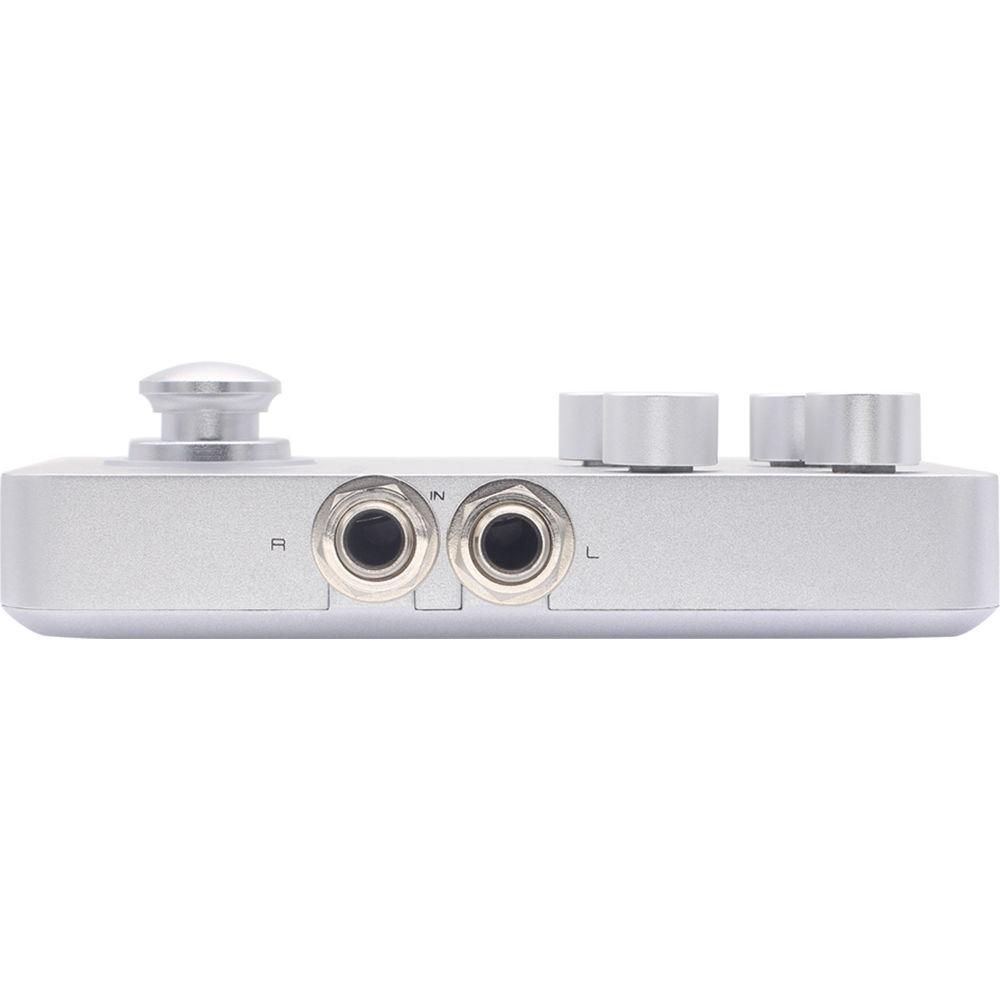

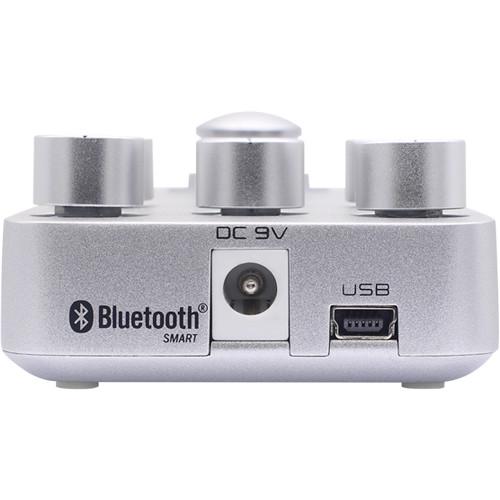

In addition to its dual 1/4" input/output configuration—through which stereo effects can also be engaged and routed—the pedal sports a USB jack for updating firmware, as well as for loading and managing effects. - Notable Features
-
- Comparatively thin design with zinc-alloy casing
- Relay-based true-bypass footswitch with halo LED
- 6 Knobs with halo LEDs
- TI C67 series DSP onboard offering 24-bit A/D/A conversion
- Included iOS, Android and PC apps for loading and managing effects via Bluetooth
- USB jack for firmware upgrading, loading/managing effects with PC apps, and more
- Frequency response of 5 Hz to 21 kHz
- Signal-to-noise ratio of 114 dB
- CDCM technology for effects emulations
- Stereo inputs and outputs (one offering relay-based, true and buffered bypass, one offering buffered bypass)
- Growing effects algorithm library
UPC: 888506070013 In the Box Hotone XTOMP Multi-Effects Pedal with Bluetooth Connectivity and XTOMP App Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotone XTOMP Multi-Effects Pedal with Bluetooth Connectivity and XTOMP App in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotone TPMXTOMP Specs | System Requirements | iOS:
iOS 8.0 or later
iPhone 4s or later
iPad with Retina display, third generation or later
iPad mini or later
iPad Pro or later
iPod touch fifth generation or later
XTOMP app
Android
Android 4.3 (Jelly Bean) or later
Any device that supports BLE (Bluetooth Low Energy)
XTOMP app | | Controls | 6 knobs, 1 on/off footswitch | | Audio Connections | 2 x 1/4" inputs (Left/Right)
2 x 1/4" outputs (Left/Right) | | USB | 1 x USB jack for firmware upgrading, loading/managing effects with PC apps, and more | | Bypass | Left channel: Relay true bypass and analog buffer
Right channel: Analog buffer bypass | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | Audio Frequency Response | 5 Hz to 21 kHz, approximate | | Signal to Noise Ratio | 114 dB | | Power Requirements | 9 VDC, center negative | | Power Supply | Available separately | | Current Consumption | 200 mA maximum | | Dimensions (D x W x H) | 5.0 x 2.9 x 1.4" / 12.6 x 7.3 x 3.5 cm | | Weight | 16.6 oz / 472.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.2 x 3.8 x 2.0" |
