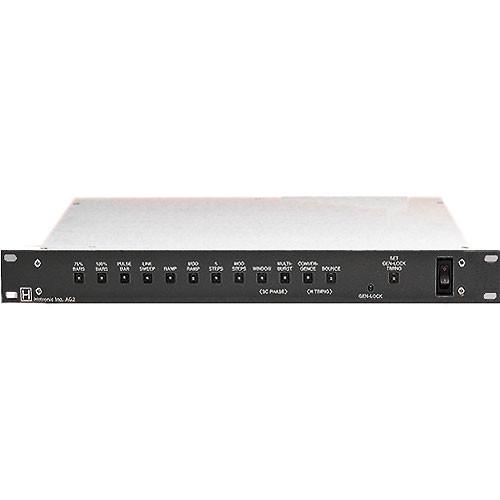

Product description The Hotronics AG2 is a multiple pattern test signal generator; it can be used as the main generator for a studio or be slaved to the master reference signal and be used for service and engineering. This generator offers composite video outputs along with audio. - Multiple Patterns
- 12 patterns are offered including 75% Color Bar, 100% Color Bar, Pulse Bar, Line Sweep, Ramp, Modulated Ramp, 5 Steps, Modulated 5 Steps, Window, 5 Steps, Modulated 5 Steps, Window and black burst.
- Audio Tone
- A balanced audio output is offered for test tone purposes.
- Output Format
- Composite outputs are offered for the user's specific application. Y/C is a option for this model.
In the Box Hotronic AG2 Test Signal Generator - Composite, Audio Tone, Genlockable, NTSC Power Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AG2 Test Signal Generator - Composite, Audio Tone, Genlockable, NTSC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AG2 Specs | Output | Composite Video x2, Multiple Patterns, @ 75 ohms, on BNC connectors
Balanced Stereo Audio, 1 kHz, @ 600 ohms, on an XLR connector | | Input | Genlock, 1 Vpp @ 75 ohms, on a BNC connector | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel Push Buttons
Pattern and Genlock Selection | | Power Source | 120 VAC @ 60 Hz | | Dimensions (WxDxH) | 19 x 11.25 x 1.75"
48.26 x 28.6 x 4.45cm | | Weight | 7 lbs
3.17 kg |
