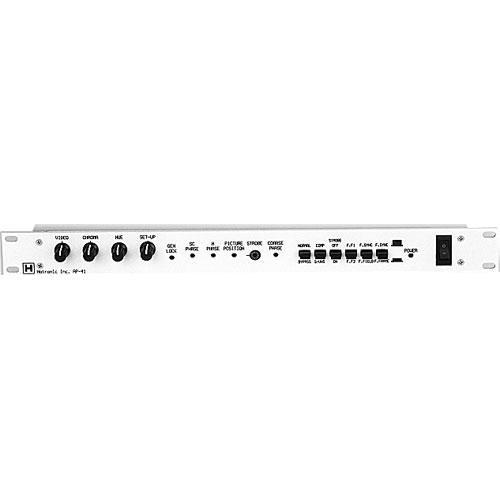

User Manual for Hotronic AP-41-D TBC Frame Synchronizer Click to enlarge the picture
Contents of the user manual for the Hotronic AP-41-D TBC Frame Synchronizer
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic AP-41-D TBC Frame Synchronizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronic AP-41-D is a Time Base Corrector/Frame Synchronizer with processing amplifier functionality. It accepts a video signal with an SDI digital signal and outputs an SDI video signal utilizing BNC connectors. This model offers genlock capabilities. - Functional Efficiency
- This device offers prestable proc-amp controls with a useful dynamic range and a selection of operational modes on the front panel.
- Gen-Lock Capability
- Black burst or standard NTSC signal is utilized for reference with front panel access for sub-carrier and horizontal timing.
- SDI Input and Output
- This model offers the ability to process SDI digital video signals.
- Rackmountable
- This unit is designed to fit into existing studio rack spaces without extraneous equipment.
In the Box Hotronic AP-41-D TBC / Frame Synchronizer 1 Year Parts, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AP-41-D TBC Frame Synchronizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AP-41-D Specs | Input |
Gen-Lock: Looping, @ 75 ohms termination
SDI Digital Video: 525 @ 60Hz, on a BNC connector | | Output |
Advanced Sync: 1Vpp @ 75 ohms, on a BNC connectorSDI Digital Video: 525 @ 60Hz, on a BNC connector | | Video Bandwidth | 6MHz | | Differential Gain | 2% | | Differential Phase | 2° | | Video Signal-to-Noise Ratio | 58dB | | Control | Front Panel Potentiometers:
Video Level
Chroma Level
Hue Phase
Set-Up Level
Front Panel Engineering Access:
Gen-Lock
Sub Carrier Phase
Horizontal Phase
SDI Position
Strobe
Coarse Phase
Front Panel Buttons:
Bypass
Strobe
Field 1 or 2
Sync | | Power Source | 120VAC 60Hz | | Dimensions (WxDxH) | 19 x 19 x 1.75"
48.26 x 48.26 x 4.45cm | | Weight | 13.5 lbs
6.1kg | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 22.2 x 17.7 x 5.3" |
