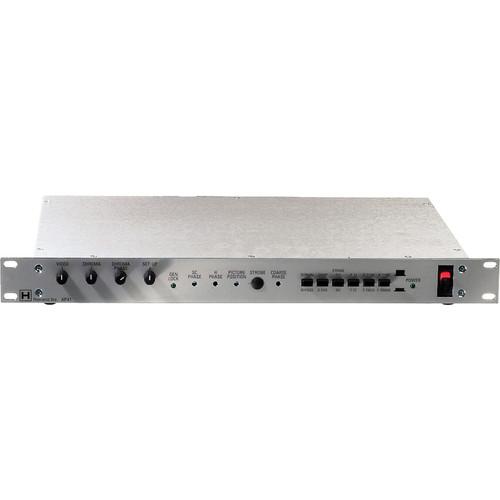

User Manual for Hotronic AP-41SW Time Base Corrector Frame Synchronizer, Proc-Amp, Wide Band Comb Filter, Composite Input, Composite Output, Rackmountable Click to enlarge the picture
Contents of the user manual for the Hotronic AP-41SW Time Base Corrector Frame
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic AP-41SW Time Base Corrector Frame contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The AP-41SW is a Time Base Corrector/Frame Synchronizer with processing amplifier functionality. It accepts a composite video signal and outputs a composite video signal utilizing BNC connectors. This model features a wide band comb filter. - Functional Efficiency
- Prestable proc-amp controls with a useful dynamic range accessed by front panel; selection of operational modes also on front panel.
- Gen-Lock Capability
- Black burst or standard NTSC signal is utilized for reference; front panel access for Sub-Carrier and Horizontal timing.
- Blanking
- Adjustable horizontal and vertical blanking allow user to time unstable signals to achieve broadcast standards.
- Rackmountable
- This unit is designed to fit into exsisting studio rack spaces without extraneous equipment.
- Wide Band Comb Filter
- This comb filter ensures a stable output signal even when processed.
In the Box Hotronic AP-41SW Time Base Corrector / Frame Synchronizer, Proc-Amp, Wide Band Comb Filter, Composite Input, Composite Output, Rackmountable 1 Year Parts, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AP-41SW Time Base Corrector Frame Synchronizer, Proc-Amp, Wide Band Comb Filter, Composite Input, Composite Output, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AP41-SW Specs Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector Gen-Lock, Looping, @ 75 ohms termination | Output | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector Advanced Sync, 1 Vpp @ 75 ohms, on a BNC connector | Video Bandwidth | 6 MHz | Differential Gain | 2% | Differential Phase | 2° | Video Signal-to-Noise Ratio | 58 dB | Control | Front Panel Potentiometers: Video Level Chroma Level Hue Phase Set-Up Level Front Panel Engineering Access: Gen-Lock Sub Carrier Phase Horizontal Phase Picture Position Strobe Coarse Phase Front Panel Buttons: Bypass Strobe Field 1 or 2 Sync | Power Source | 120 VAC 60 Hz | Dimensions (WxDxH) | 19 x 19 x 1.75" 48.26 x 48.26 x 4.45cm | Weight | 13.5 lbs 6.1 kg | | Package Weight | 8.65 lb | Box Dimensions (LxWxH) | 22.0 x 17.0 x 5.0" |
