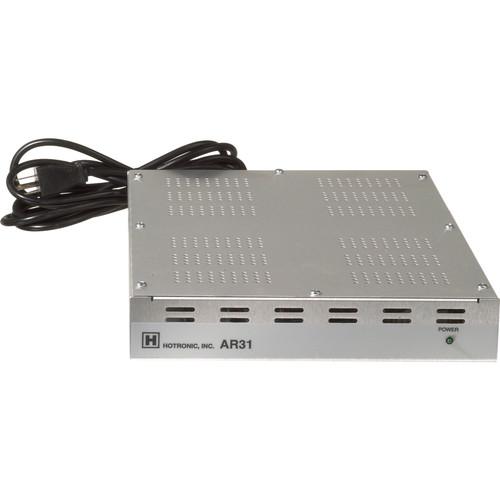

Product description The AR-31R is a TBC/Frame Sync offering Y/C and composite input and output. With the remote all proc-amp functions can be accessed. - Signal Conversion
- The composite input can be converted to work with the Y/C output and the Y/C input can be converted to pass through the composite output.
- Digital Comb Filter
- This filter keeps the processed signal stable and clean even through signal conversion.
- Proc-Amp
- The processing amplifier can be accessed by using the optional remote control.
- Gen-Lock
- This device can be synchronized by utilizing the gen-lock input for reference.
In the Box Hotronic AR-31R TBC / Frame Sync, Proc-Amp, Y/C, Composite, with Remote RAR-31 Proc-amp Remote 1 Year Parts 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AR-31R TBC Frame Sync, Proc-Amp, Y C, Composite, with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AR31-R Specs | Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), on a 4-Pin connector
Genlock, Black Burst or Composite Video, on a BNC connector
Remote, on a mini input | | Output | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), on a 4-Pin connector | | Video Bandwidth | 6 MHz | | Differential Gain | 2% | | Differential Phase | 2° | | Video Signal-to-Noise Ratio | 58 dB | | Control | Wired Remote:
Full Proc Amp Control
Presets
Freeze Frame or Field
8 Strobe Speeds
Input Select
Horizontal Phase
Sub Carrier Phase | | Power Source | 120 VAC 60 Hz | | Dimensions (WxDxH) | 9.5 x 14.5 x 1.75"
24.13 x 36.83 x 4.45cm | | Weight | 2 lbs
.9 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 20.2 x 12.3 x 6.4" |
