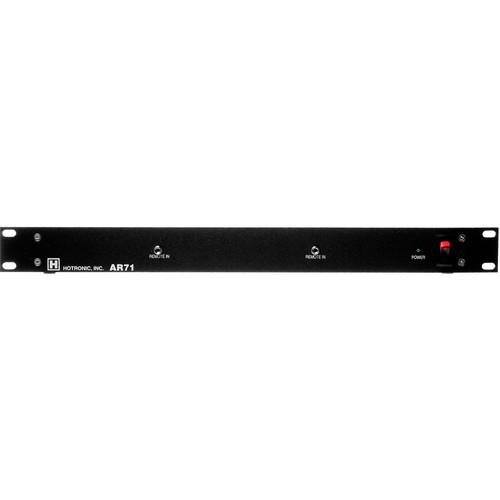

User Manual for Hotronic AR-71-2 Dual TBC Frame Sync, Proc-Amp, Composite, Y C, 2 Separate Remotes, Rackmountable Click to enlarge the picture
Contents of the user manual for the Hotronic AR-71-2 Dual TBC Frame Sync,
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic AR-71-2 Dual TBC Frame Sync, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The AR-71-2 is a dual channel TBC/Frame Sync; it offers processing of composite and Y/C signals. The two channels are controlled separately for accurate reproduction of both signal inputs. Two remotes come with this model for control of each channel simultaneously. - Dual Channel
- Two separate channels are processed; therefore allowing for two synchronized sources in one unit. This is great for A/B roll editing and live switching.
- Digital Comb Filter
- This filter provides accurate correction and rendition in conversion and processing situations.
- Remote Control
- Functions of this unit including processing amplifier adjustments are controlled from a supplied, wired remote control device.
- Rackmountable
- This device was designed to fit into exsisting studio rack space without extraneous mounting equipment.
In the Box Hotronic AR-71-2 Dual TBC / Frame Sync, Proc-Amp, Composite, Y/C, 2 Separate Remotes, Rackmountable Power Cord Two Wired Remotes 1 Year Parts 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AR-71-2 Dual TBC Frame Sync, Proc-Amp, Composite, Y C, 2 Separate Remotes, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AR71-2 Specs | Input | Composite x2, 1 Vpp @ 75 ohms, on BNC connectors
Y/C (S-Video) x2, on 4-Pin connectors
Genlock x2, Black Burst or NTSC composite, on BNC connectors
Remote x2, on a mini connector | | Output | Composite x2, 1 Vpp @ 75 ohms, on BNC connectors
Y/C (S-Video) x2, on 4-Pin connectors | | Video Bandwidth | 6 MHz | | Differential Gain | 2% | | Differential Phase | 2° | | Video Signal-to-Noise Ratio | 58 dB | | Control | Remote Panel:
Full Proc Amp Control
Presets
Freeze Frame or Field
8 Strobe Speeds
Input Select
Horizontal Phase
Sub Carrier Phase | | Power Source | 120 VAC 60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.18 x 4.45cm | | Weight | 10.5 lbs
4.8 kg |
